Tractor · 2009Unverified

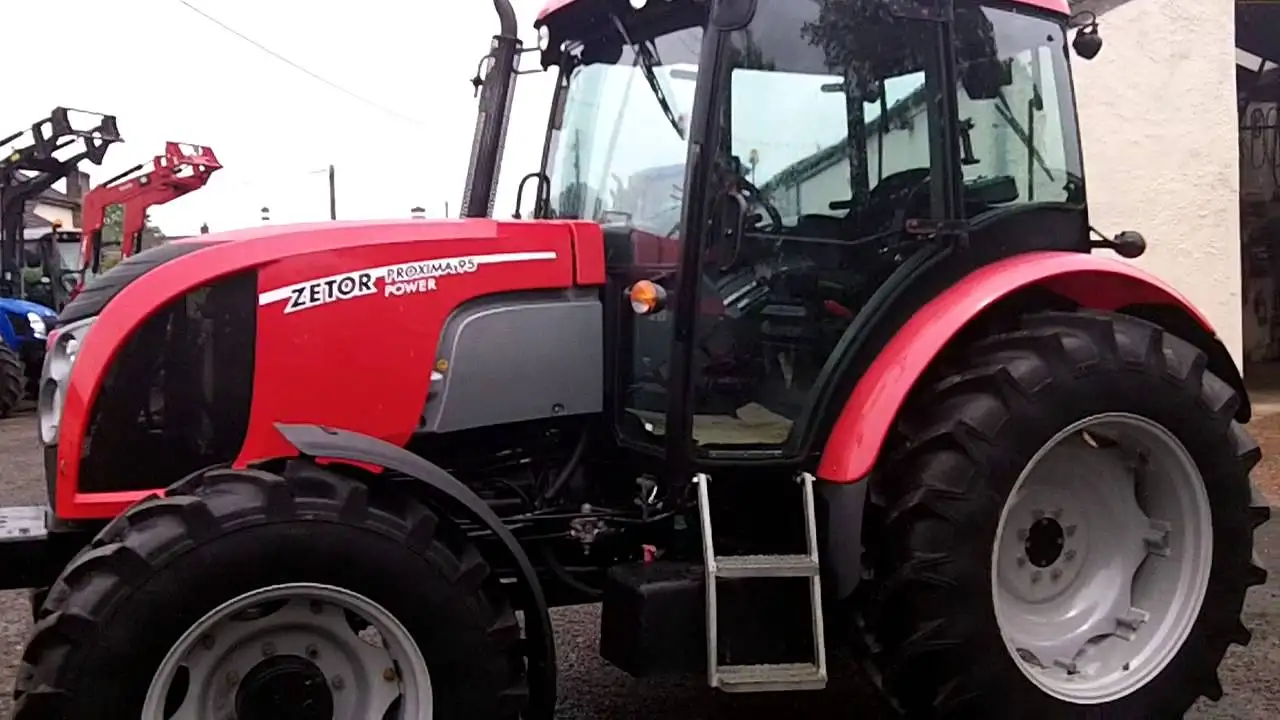

Zetor Proxima 95
Zetor Proxima 95 — Proxima Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
6900 to 8003 pounds
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with optional air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Engine (net)67.1 kWReference
Zetor 1005Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
EmissionsStage IIIReference
Rated Power (net)67.1 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
10-speed synchromeshReference
12-speed synch shuttleReference
20-speed creeperReference
TypesynchromeshReference
Gears10 forward and 2 reverseReference
Clutch310mm hydraulic cerametallic discReference
Typesynch shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and 4 reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Valves1Reference
Total flow50.0 lpmReference
Rear TypeII/IReference
Controlposition control and mechanical top-link draft sensingReference
Rear lift4078 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase232 cmReference
4WD Wheelbase223 cmReference
Weight6900 to 8003 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length387 cmReference
Width191 cmReference
2WD Height226 cmReference
4WD Height267 cmReference
2WD Weight3129 kgReference
4WD Weight3630 kgReference
2WD Ground clearance49 cmReference
4WD Ground clearance40 cmReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
