Tractor · 2009Unverified

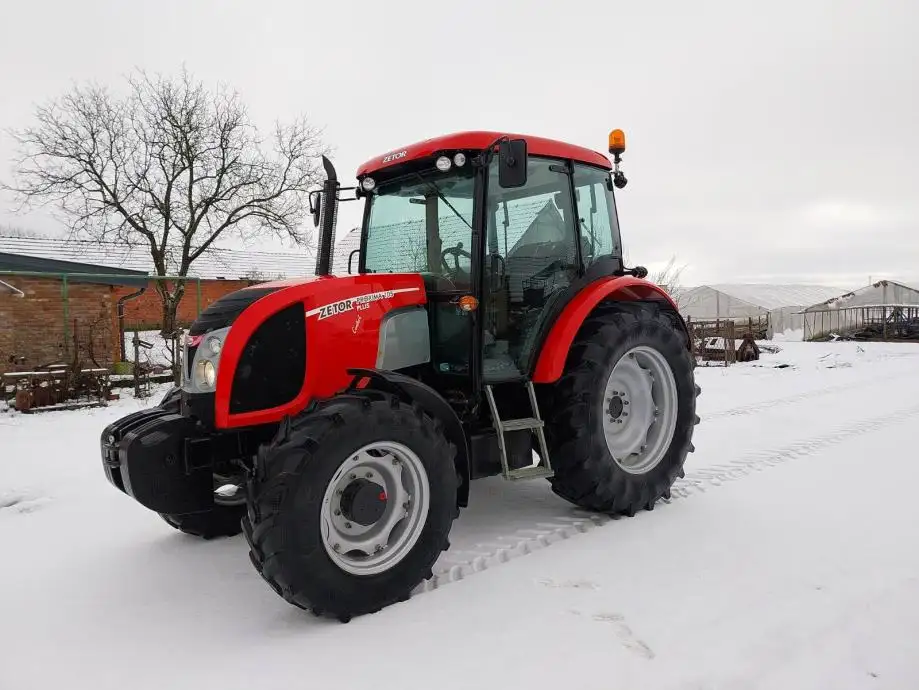

Zetor Proxima Plus 105

Name: Zetor Proxima Plus 105
Brand: Zetor

Zetor Proxima Plus 105 — Proxima Series · 100 hp. Reference specifications; pending source verification.

The Zetor Proxima Plus 105 is a tractor model with a rated output of approximately 100 horsepower, a mid-range figure for its class. Produced from 2009 to 2010, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The operating weight of the Zetor Proxima Plus 105 is listed at 3739 kg. It is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

100 hp

Weight

3739 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

100 hp

Recorded weight

3739 kg

Transmissions

16-speed two-speed power shift

Production years

2009-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Differential lockelectro-pneumaticReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with optional air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Engine (net)74.6 kWReference

Zetor 1305Reference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IIIReference

Rated Power (net)74.6 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceStage IIIReference

Bore and stroke4.13x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears16 forward and reverseReference

Clutch310mm hydraulic cerametallic discReference

Transmission TypePowershiftReference

forward and reverse optionsTwo-speed Powershift: 16 F and 16 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure180.0 barReference

Valves3Reference

Total flow50.0 lpmReference

Rear TypeII/IReference

Controlposition control and mechanical top-link draft sensingReference

Rear lift4232 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase232 cmReference

Weight3739 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Length367 cmReference

Width191 cmReference

Height271 cmReference

Ground clearance40 cmReference

Electrical

Charging systemalternatorReference

General

Make & ModelZetorReference

Country of manufacturerBrno, Czech RepublicReference

Capacities

Capacity253.6 ciReference

Hydraulics

Capacity Valves8 ValvesReference

Pump Rated Output (total)13.2 gpmReference

Maximum operating pressure2,611 psiReference

Remote Valves3 ValvesReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity4,232 kgReference

Rear Hitch Sensing Typeposition control and mechanical top-link draft sensingReference

Power

Max Power100 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Dimensions & weight

Overall Height271.8 cmReference

Overall Length367 cmReference

Overall Width191 cmReference

Overall weight3,739.9 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 16.9-30Reference

Front Wheel TypeAg front - 11.2-24.Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
