Tractor · 2007Unverified

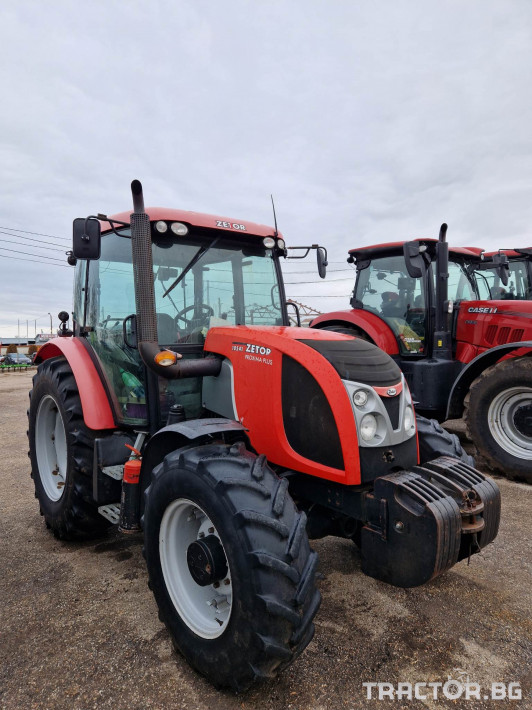

Zetor Proxima Plus 10541
Zetor Proxima Plus 10541 — Proxima Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4010 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Differential lockelectro-pneumaticReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with optional air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Engine (net)74.6 kWReference
Zetor 1304Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
EmissionsTier IIReference
Rated Power (net)74.6 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutch310mm hydraulic cerametallic discReference
PTO & Hydraulics
Pressure180.0 barReference
Valves3Reference
Total flow50.0 lpmReference
Rear TypeII/IReference
Controlposition control and mechanical top-link draft sensingReference
Rear lift4232 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Front PTO Type1000Reference
Dimensions
Wheelbase232 cmReference
Weight4010 kgReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length432 cmReference
Width191 cmReference
Height269 cmReference
Ground clearance40 cmReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
