Tractor · 2007Unverified

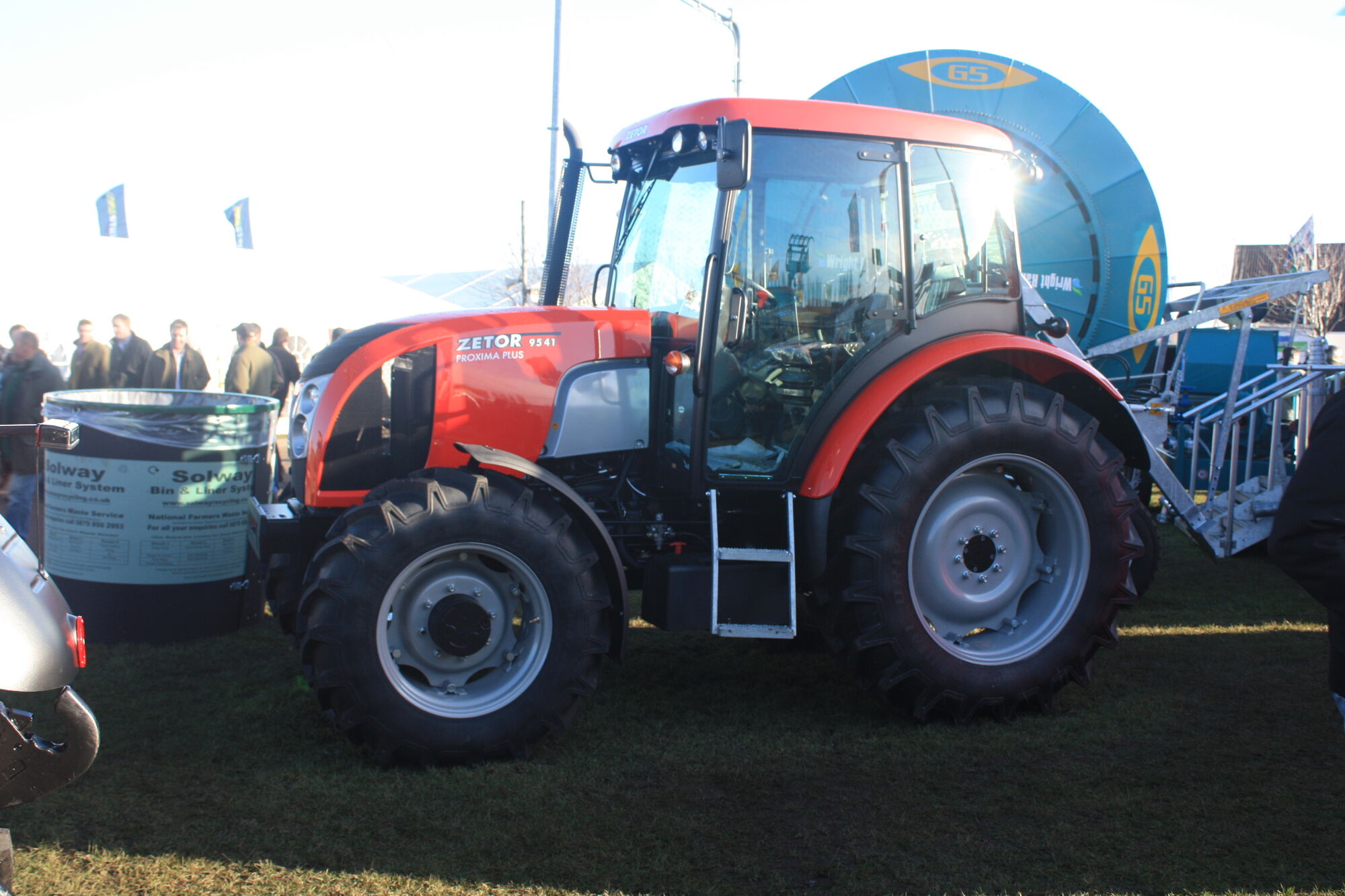

Zetor Proxima Plus 9541

Name: Zetor Proxima Plus 9541
Brand: Zetor

Zetor Proxima Plus 9541 — Proxima Series · 90 hp. Reference specifications; pending source verification.

The Zetor Proxima Plus 9541 is a tractor with an engine rating of 90 hp, placing it within the middle range of its class in terms of power output. Manufactured from 2007 to 2009, this model is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The tractor's listed weight is 4010 kg, and it is suited for tasks involving areas of approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

4010 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

90 hp

Recorded weight

4010 kg

Transmissions

16-speed two-speed power shift

Production years

2007-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Differential lockelectro-pneumaticReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with optional air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Engine (net)67.1 kWReference

Zetor 1004Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsTier IIReference

Rated Power (net)67.1 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

16-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears16 forward and reverseReference

Clutch310mm hydraulic cerametallic discReference

PTO & Hydraulics

Pressure180.0 barReference

Valves3Reference

Total flow50.0 lpmReference

Rear TypeII/IReference

Controlposition control and mechanical top-link draft sensingReference

Rear lift4232 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase232 cmReference

Weight4010 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Length432 cmReference

Width191 cmReference

Height269 cmReference

Ground clearance40 cmReference

Electrical

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
