Tractor · 2009Unverified

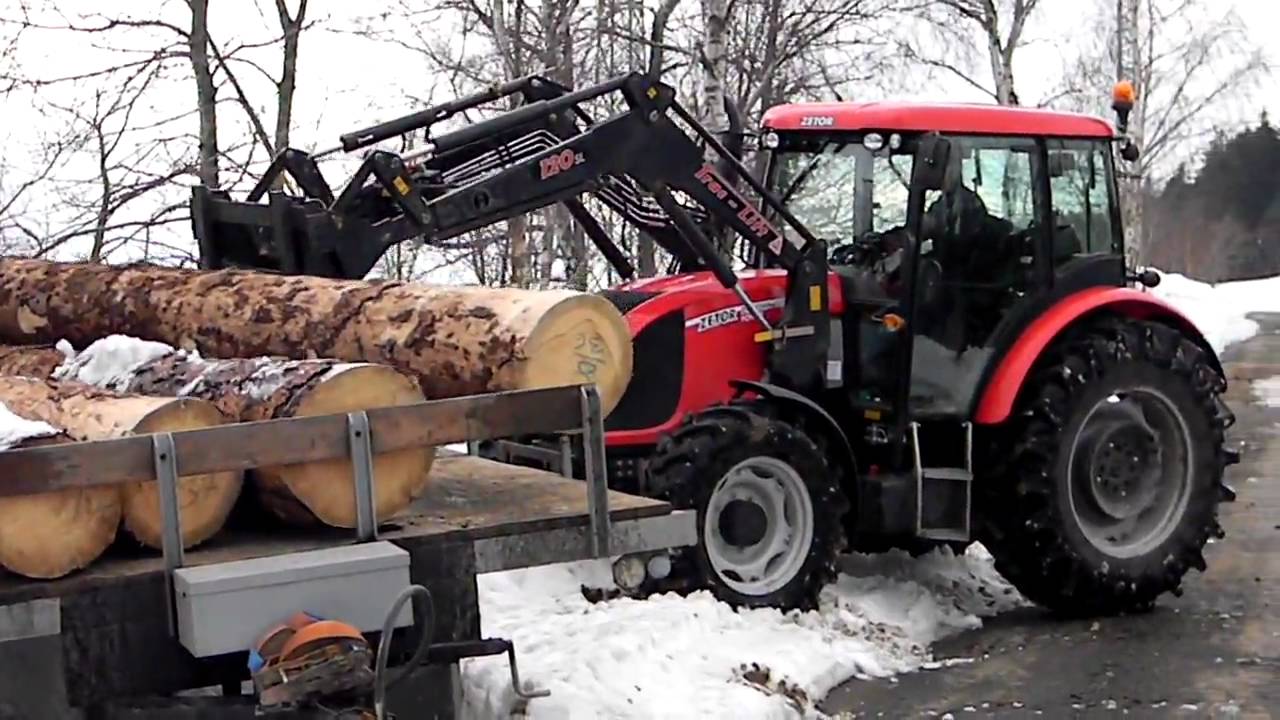

Zetor Proxima Power 105

Name: Zetor Proxima Power 105
Brand: Zetor

Zetor Proxima Power 105 — Proxima Series · 100 hp. Reference specifications; pending source verification.

The Zetor Proxima Power 105 is a tractor model rated at approximately 100 hp, falling within the mid-range of its class. It was produced from 2009 to 2010. Equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, the model features a powershift transmission. The tractor's operating weight is listed as 3999 kg, suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

3999 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

100 hp

Recorded weight

3999 kg

Transmissions

24-speed three-speed power shift

Production years

2009-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Differential lockelectro-pneumaticReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with optional air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Fuel tank174.9 LReference

Engine (net)74.6 kWReference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Zetor 1305Reference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IIIReference

Rated Power (net)74.6 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

24-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

Pressure180.0 barReference

Valves3Reference

Total flow50.0 lpmReference

Rear TypeII/IReference

Controlposition control and mechanical top-link draft sensingReference

Rear lift4232 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase232 cmReference

Weight3999 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Length390 cmReference

Width191 cmReference

Height271 cmReference

Ground clearance41 cmReference

Electrical

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
