Tractor · 1992Unverified
Zetor Zebra 2040
Zetor Zebra 2040 — Four-wheel Drive (4WD) tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1137 kg
Hover a source tag to verify
Overview
ManufacturerZetor ZebraReference
Four-wheel Drive (4WD) tractorReference
Built in Napajedla, Czech RepublicReference
Original price was $8,850 in 1993Reference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringpowerReference
Mechanical drum brakesReference
Four-post ROPS.Reference
Engine
Slavia 1.1L 2-cyl dieselReference
Engine17.5 kWReference
Drawbar (claimed)14.9 kWReference
Slavia 2S90AReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.1 LReference
Bore/Stroke90 x 90 mmReference
Power17.5 kWReference
Compression17.2:1Reference
Rated RPM3000Reference
Intake valve clearance0.152 mmReference
Exhaust valve clearance0.152 mmReference
Oil capacity5.0 LReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 3 reverseReference
Three speeds in two forward ranges, plus reverse. Tractor must be stopped, and clutch used, to shift ranges or gears.Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Hydraulic system4.9 LReference
Typeopen centerReference
Capacity4.9 LReference
Pump flow9.5 lpmReference
Total flow9.5 lpmReference
Oil typeSAE10 Hyd oilReference
Rear TypeINReference
Rear lift (at ends)1077 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2400Reference
Engine RPM1000@3000Reference
Capacities
Fuel11.4 LReference
Front diff.9.9 LReference
Rear diff.9.9 LReference
Dimensions
Wheelbase117 cmReference
Weight1137 kgReference
Front tire7.50-16Reference
Rear tire7.50-16Reference
Ag front7.50-16Reference
Ag rear7.50-16Reference
Length280 cmReference
Width119 cmReference
Height114 cmReference
Height (ROPS)199 cmReference
Ground clearance25 cmReference
Zetor Zebra 2040 attachments

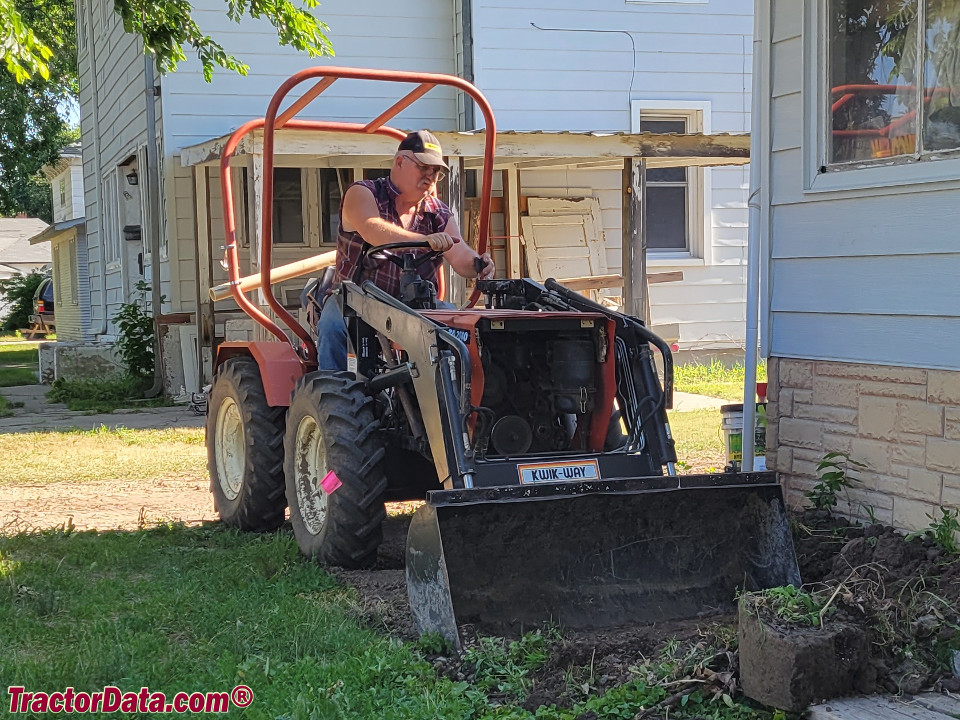

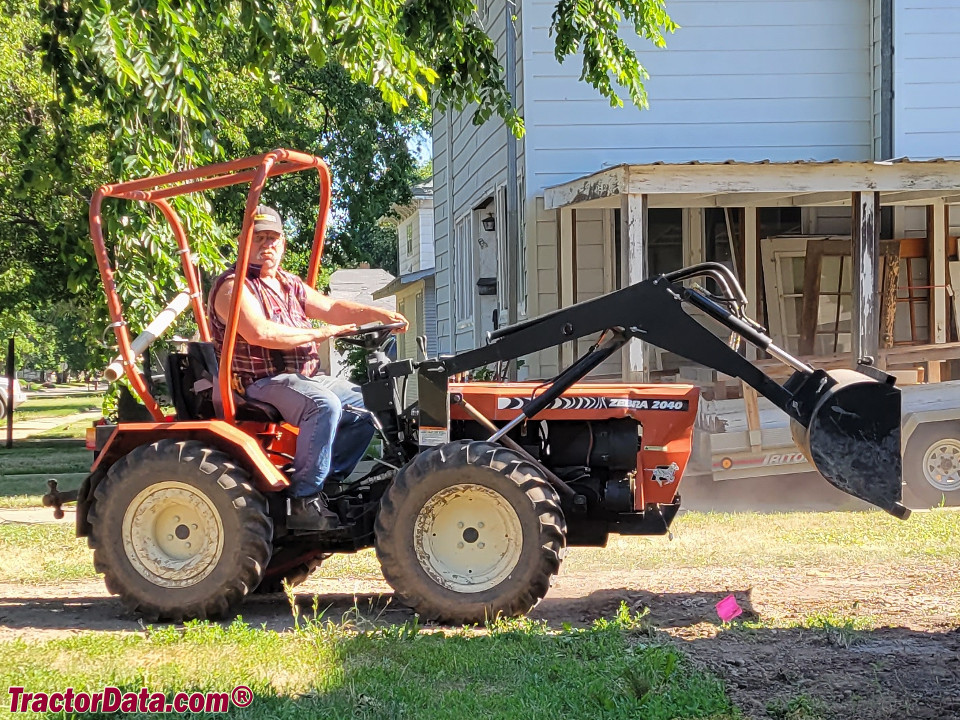

front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH63Reference
Speeds
With 7.50x16 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
