Tractor · 1991Unverified

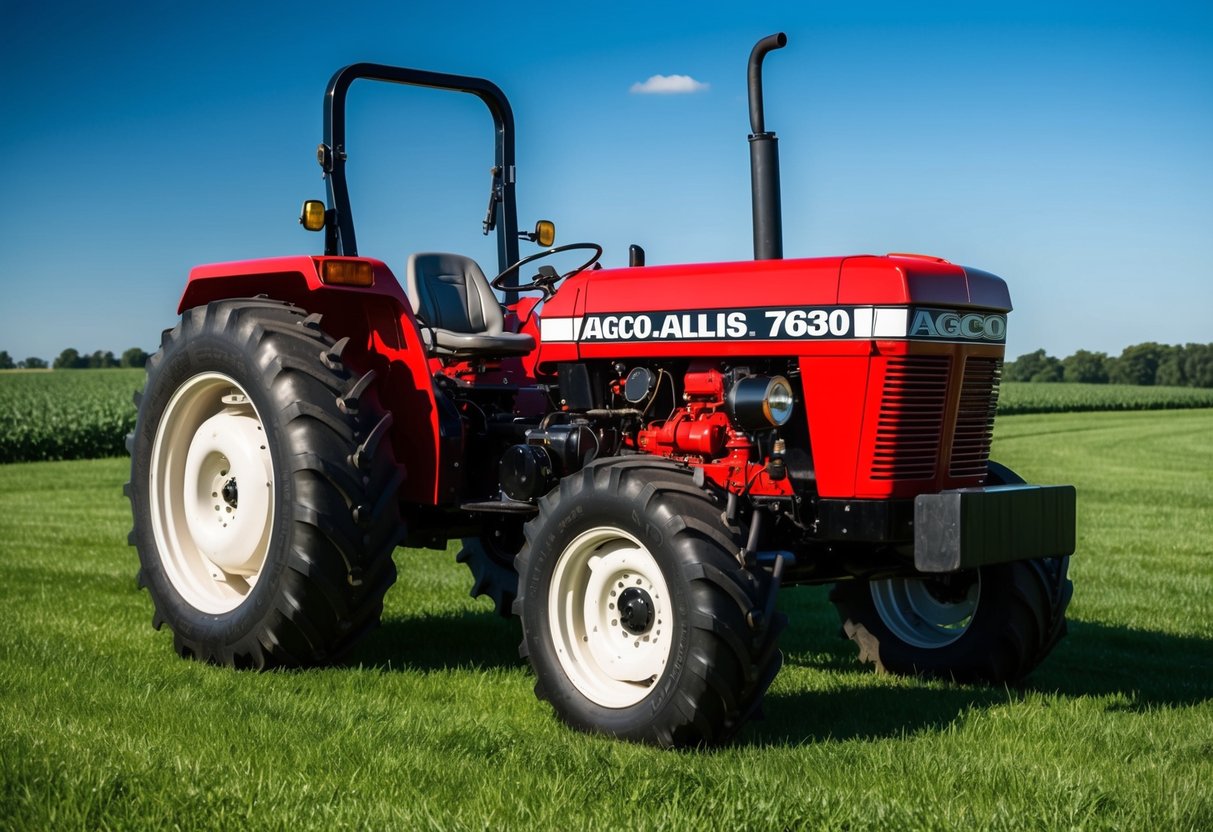

AGCO Allis 7630
AGCO Allis 7630 — Row-Crop tractor · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
5170 kg
Hover a source tag to verify
Overview
DistributorAGCO Allis (a part of AGCO)Reference
ManufacturerSLHReference
Row-Crop tractorReference
Built in ItalyReference
Original price was $60,000 in 1992Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
SLH 6.2L 6-cyl dieselReference
Engine91.1 kWReference
SLH 1056-PReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power91.1 kWReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2260Reference
Idle RPM650-2440Reference
StarterelectricReference
Starter volts12Reference
Starter power3.5 kWReference
Oil capacity16.2 LReference
Transmission
24-speed synchromeshReference
TypesynchromeshReference
Gears24 forward and 12 reverseReference
Clutchhydraulic cerametallic 350mm discReference
Oil capacity97.4 LReference
Four gears (1-4) in three ranges (L/M/H) with additional two-speed high-low shift.Reference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
Hydraulic system87.4 LReference
Typeopen centerReference
Capacity87.4 LReference
Pressure180.0 barReference
Valves2Reference
Pump flow64.0 lpmReference
Rear TypeIII/IIReference
Controllower link draft controlReference
Rear lift (at ends)5400 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2083Reference
Engine RPM1000@2286Reference
Capacities
Fuel210.1 LReference
Dimensions
Wheelbase279 cmReference
Weight5170 kgReference
Front tire14.9R30Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R30. Rear: 18.4R38Reference
Optional tires (ag)Front: 16.9R30. Rear: 20.8R38Reference
Length449 cmReference
Width220 cmReference
Height (exhaust)300 cmReference
Shipping weight5170 kgReference
Max weight8099 kgReference
Ground clearance54 cmReference
Flange rear axleReference
Front tread162 to 203 cmReference
Rear tread162 to 224 cmReference
7630 Serial Numbers
Location:Serial number plate on the right side of the 7630 console.Reference
19911001Reference
19921066Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH143Reference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
