Tractor · 1991Unverified

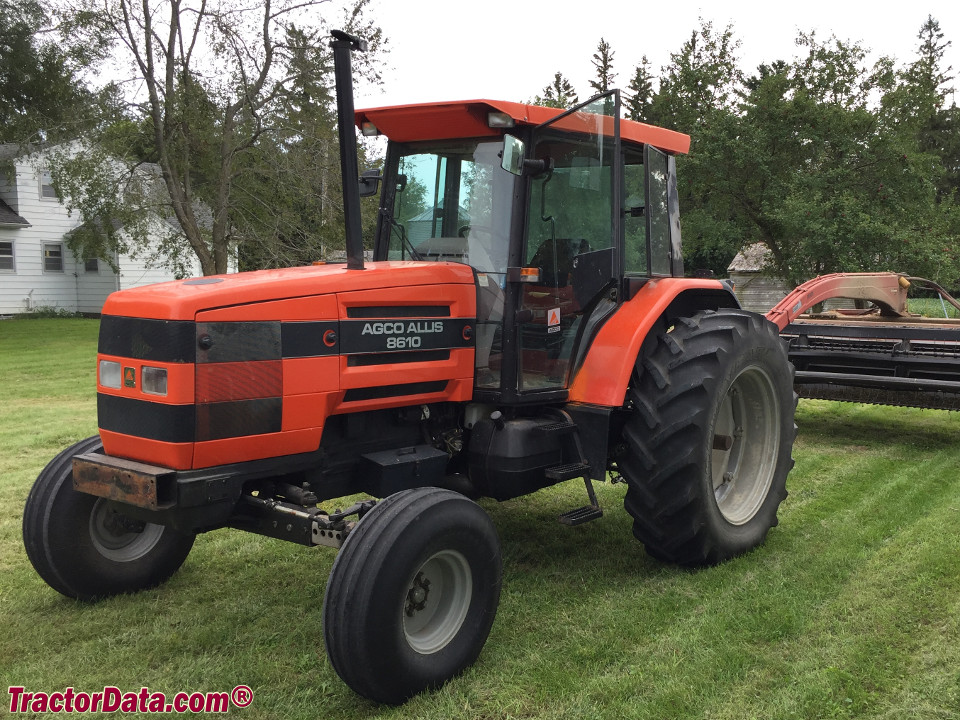

AGCO Allis 8610
AGCO Allis 8610 — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Max power
58.4 kW
Weight
4930 kg
Hover a source tag to verify
Overview
DistributorAGCO AllisReference
ManufacturerSAMEReference
Row-Crop tractorReference
Built in ItalyReference
Original price was $58,000 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
Antares 110similar SAME modelReference
Engine
SLH 6.0L 6-cyl dieselReference
4WD Fuel tank210.1 LReference
2WD Fuel tank230.1 LReference
Drawbar (tested)58.4 kWReference
SLH 1000.6 AReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 116 mmReference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed78.4 kWReference
Max power58.4 kWReference
Transmission
24-speed partially synchronizedReference
36-speed partial power shiftReference
Typepartially synchronizedReference
Gears24 forward and 12 reverseReference
Clutchdry discReference
Six synchronized gears in four ranges with synchronized reverser.Reference
Typepartial power shiftReference
Gears36 forward and reverseReference
PTO & Hydraulics
PTO (claimed)76.8 kWReference
PTO (tested)78.4 kWReference
Typeopen centerReference
Valves3Reference
Pump flow57.4 lpmReference
Rear TypeII/IReference
Rear lift4199 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed75.8 kWReference
Dimensions
Wheelbase279 cmReference
Weight4930 kgReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Shipping weight4930 kgReference
4WD Front tread162 to 235 cmReference
8610 Serial Numbers
Location:Console, right sideReference
19911001Reference
19921056Reference
19931101Reference
19941260Reference
19951382Reference
19961391Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Test results
Diesel 24-speed 4WDJune 1991 - July 1991, Link: OCED Tractor Test 1328 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Fuel use22.3 l/hourReference
Drawbar performanceReference
Fuel use22.7 l/hourReference
Gear 5N used for power test.Reference
Max pull4622 kgReference
Gear 3N used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
