Tractor · 1994Unverified

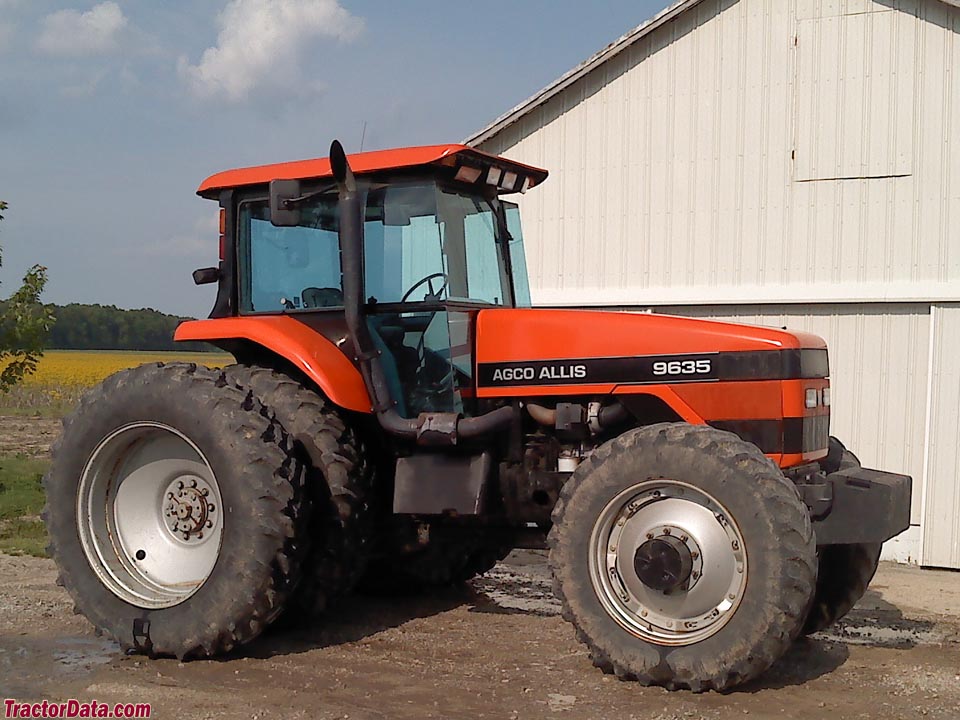

AGCO Allis 9635
AGCO Allis 9635 — Row-Crop tractor · 136 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
136 hp
Max power
105.6 kW
Weight
14475 to 17478 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO AllisReference
Row-Crop tractorReference
Original price was $76,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
943532-speed semi-powershiftReference
963518-speed full powershiftReference
Engine
Detroit Diesel 7.6L 6-cyl dieselReference
Fuel tank253.6 LReference
Fuel tank367.1 LReference
Drawbar (tested)83.7 kWReference
Detroit Diesel 40Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Pre-heatingether injectionReference
Rated RPM2200Reference
Starter volts12Reference
Max power105.6 kWReference
Power at rated engine speed101.0 kWReference
Max power83.7 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
PTO (tested)105.6 kWReference
Typeclosed centerReference
Pressure155.1 barReference
Rear valves3 or 4Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)3271 kgReference
Rear lift (at 24"/610mm)3875 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2228Reference
Engine RPM1000@2200Reference
Dimensions
2WD Wheelbase312 cmReference
4WD Wheelbase295 cmReference
Weight14475 to 17478 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Bar rear axle98 by 2438 mmReference
Bar rear axle98 by 2921 mmReference
2WD Front tread165 to 226 cmReference
4WD Front tread151 to 232 cmReference
Rear tread157 to 272 cmReference
Rear tread157 to 320 cmReference
2WD Shipping6565 kgReference
4WD Shipping7155 kgReference
4WD Operating7928 kgReference
9635 Serial Numbers
Location:Console, right sideReference
1994831001Reference
1995931501Reference
1996932301Reference
1997932376Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 15 - 27, 1995Link: OCED Tractor Test 1697 fileReference
PTO performanceReference
Fuel use32.2 l/hourReference
Fuel use33.3 l/hourReference
Drawbar performanceReference
Fuel use32.9 l/hourReference
Gear 10 used for power test.Reference
Max pull7868 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
