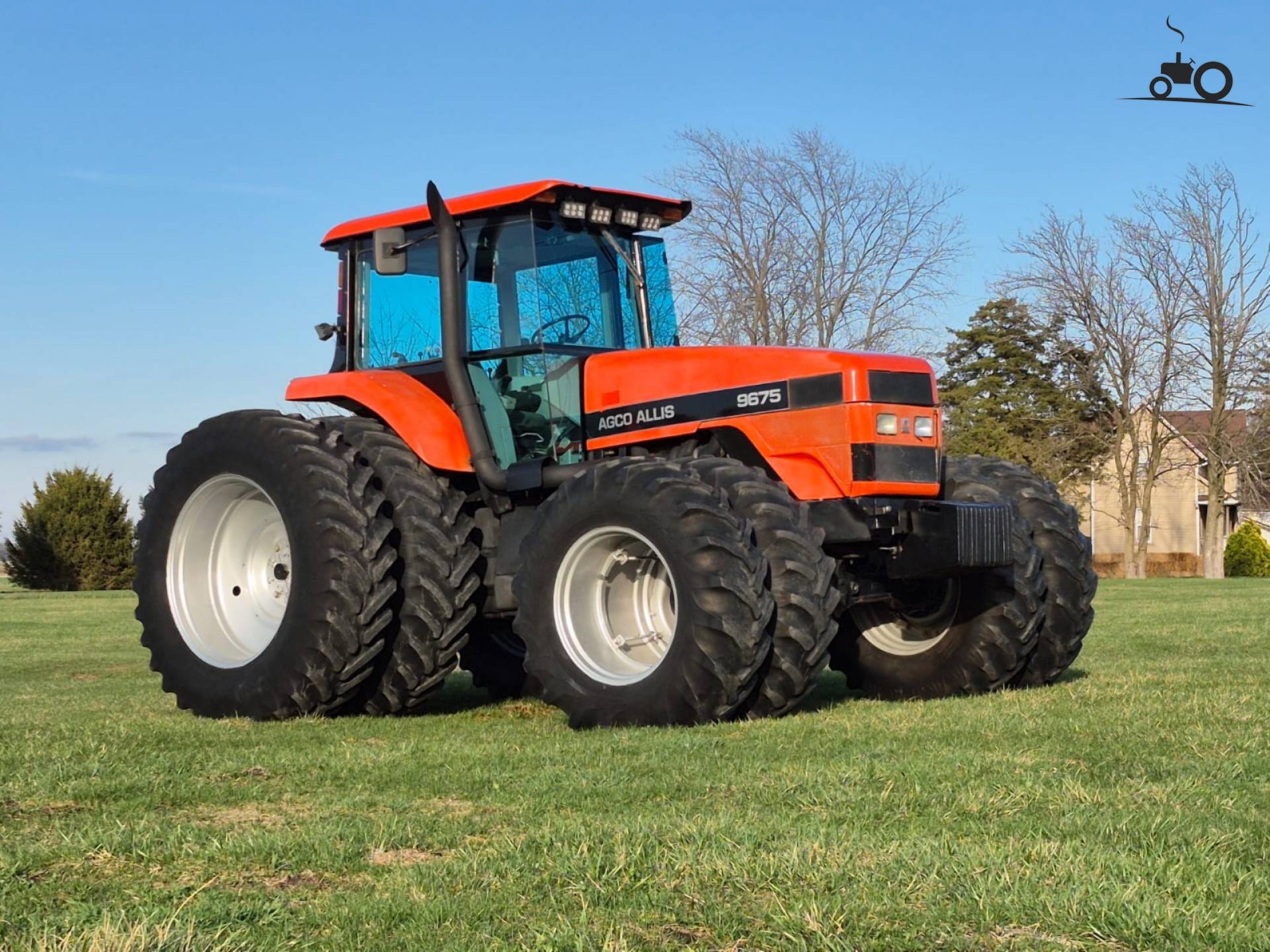

AGCO Allis 9675
AGCO Allis 9675 — Row-Crop tractor · 176 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
176 hp
Max power
143.2 kW
Weight
15000 to 18764 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO AllisReference
Row-Crop tractorReference
Original price was $90,000 in 1998Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Detroit Diesel 8.7L 6-cyl dieselReference
Fuel tank344.4 LReference
Drawbar (tested)111.1 kWReference
Detroit Diesel 40Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 136 mmReference
Pre-heatingether injectionReference
Rated RPM2200Reference
Starter volts12Reference
Max power143.2 kWReference
Power at rated engine speed131.6 kWReference
Max power111.1 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)130.5 kWReference
PTO (tested)143.2 kWReference
Typeclosed centerReference
Pressure172.4 barReference
Rear valves3 or 4Reference
Pump flow98.4 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)3855 kgReference
Rear lift (at 24"/610mm)4490 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2083Reference
Power at rated PTO speed137.5 kWReference
Dimensions
2WD Wheelbase312 cmReference
4WD Wheelbase295 cmReference
Weight15000 to 18764 poundsReference
Front tire11.00-16Reference
2WD Rear tire20.8R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 20.8R38Reference
4WD Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Bar rear axle98 by 2438 mmReference
Bar rear axle98 by 2921 mmReference
2WD Front tread165 to 226 cmReference
4WD Front tread151 to 232 cmReference
Rear tread157 to 272 cmReference
Rear tread157 to 320 cmReference
2WD Shipping6804 kgReference
4WD Shipping7903 kgReference
4WD Operating8511 kgReference
9675 Serial Numbers
Location:Console, right sideReference
1994971001Reference
1995971501Reference
1996972301Reference
1997972411Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 20 - 28, 1995Link: OCED Tractor Test 1699 fileReference
PTO performanceReference
Fuel use42.0 l/hourReference
Fuel use42.8 l/hourReference
Fuel use42.4 l/hourReference
Drawbar performanceReference
Gear 10 used for power test.Reference
Max pull8007 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
