Tractor · 1994Unverified

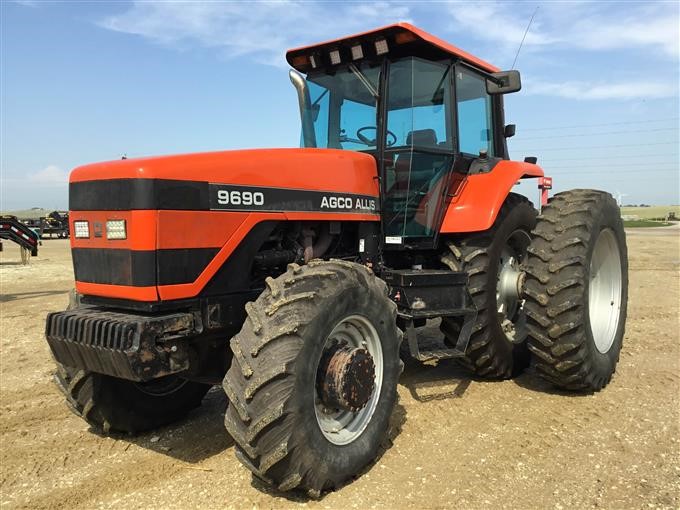

AGCO Allis 9690

Name: AGCO Allis 9690
Brand: AGCO Allis

AGCO Allis 9690 — Row-Crop tractor · 196 hp. Reference specifications; pending source verification.

The AGCO Allis 9690 is a tractor with a power output of approximately 196 hp, placing it at the upper end of its class. This model was in production from 1994 to 1995. It features a 6-cylinder turbocharged diesel air-cooled engine and four-wheel drive with a powershift transmission. The tractor has a listed operating weight of 18100 to 19405 pounds, suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

196 hp

Max power

153.2 kW

Weight

18100 to 19405 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

196 hp

Recorded weight

8210 kg

Transmissions

18-speed full power shift

Production years

1994-1995

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCO Allis (a part of AGCO)Reference

Row-Crop tractorReference

Original price was $107,000 in 1995Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 9.6L 6-cyl dieselReference

Fuel tank367.1 LReference

Drawbar (tested)127.2 kWReference

Deutz BF6L513RReference

turbocharged dieselReference

6-cylinderReference

air-cooledReference

Displacement9.6 LReference

Bore/Stroke125 x 130 mmReference

Pre-heatingether injectionReference

Compression15.8:1Reference

Rated RPM2300Reference

Starter volts12Reference

Oil capacity22.7 LReference

Max power153.2 kWReference

Power at rated engine speed145.9 kWReference

Max power127.2 kWReference

Transmission

18-speed full power shiftReference

Typefull power shiftReference

Gears18 forward and 9 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)145.4 kWReference

PTO (tested)153.2 kWReference

Typeclosed center pressure-compensatingReference

Pressure172.4 barReference

Rear valves3 or 4Reference

Pump flow90.8 lpmReference

Rear TypeIII/IIReference

Controllower-link draft sensingReference

Rear lift (at 24"/610mm)4490 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type1000Reference

Power at rated PTO speed153.2 kWReference

Dimensions

Wheelbase292 cmReference

Weight18100 to 19405 poundsReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Length508 cmReference

Width243 cmReference

Height (cab)306 cmReference

Shipping weight8210 kgReference

Operating weight8802 kgReference

Clearance (front axle)55 cmReference

Clearance (drawbar)43 cmReference

Bar rear axle98 by 2438 mmReference

Bar rear axle98 by 2921 mmReference

Front tread155 to 221 cmReference

Rear tread162 to 272 cmReference

Rear tread162 to 320 cmReference

9690 Serial Numbers

Location:Console, right sideReference

1994981001Reference

1995981501Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps105Reference

Batteries2Reference

Battery CCA580Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDOctober 4 - 19, 1994Link: OCED Tractor Test 1684 fileReference

PTO performanceReference

Fuel use45.4 l/hourReference

Fuel use46.9 l/hourReference

Drawbar performanceReference

Fuel use47.3 l/hourReference

Gear 7 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
