Tractor · 1998Unverified

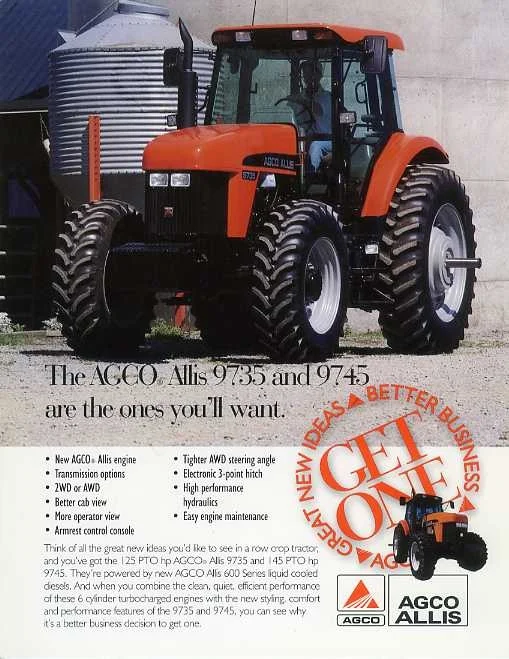

AGCO Allis 9735
AGCO Allis 9735 — Row-Crop tractor · 126 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
126 hp
Max power
102.4 kW
Weight
15000 to 16180 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO AllisReference
Row-Crop tractorReference
Original price$67,703 (1998 QS 2WD )Reference
Original price$72,916 (1998 PS 2WD )Reference
Original price$77,666 (1998 QS 4WD )Reference
Original price$82,793 (1998 PS 4WD )Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
8310similar White modelReference
Engine
SisuDiesel 6.6L 6-cyl dieselReference
Fuel tank378.5 LReference
Drawbar (tested)85.1 kWReference
SisuDiesel 66.6TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Air cleanerpaper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power102.4 kWReference
Power at rated engine speed93.6 kWReference
Max power85.1 kWReference
Transmission
18-speed full power shiftReference
32-speed four-speed power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
TransmissionQuadrashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Four power shift gears in six ranges.Reference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (tested)102.4 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2Reference
Pump flow102.2 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)4717 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM1000@2100Reference
Power at rated PTO speed98.6 kWReference
Dimensions
Wheelbase298 cmReference
Weight15000 to 16180 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38Reference
Ag front11.00-16Reference
Ag rear18.4R38Reference
Length513 cmReference
Width248 cmReference
Height (cab)304 cmReference
Bar rear axle95 by 2489 mmReference
Bar rear axle95 by 2997 mmReference
2WD Shipping6804 kgReference
4WD Shipping7257 kgReference
Operating7339 kgReference
Ballasted8205 kgReference
9735 Serial Numbers
Location:Console, right sideReference
1998G001001Reference
1999H001001Reference
2000J01001Reference
2001K01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDOctober 2 - November 19, 1998Link: OCED Tractor Test 1758 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use30.7 l/hourReference
Drawbar performanceReference
Fuel use31.0 l/hourReference
Gear 1HB used for power test.Reference
Max pull6729 kgReference
Gear 2LB used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
