Tractor · 1998Unverified

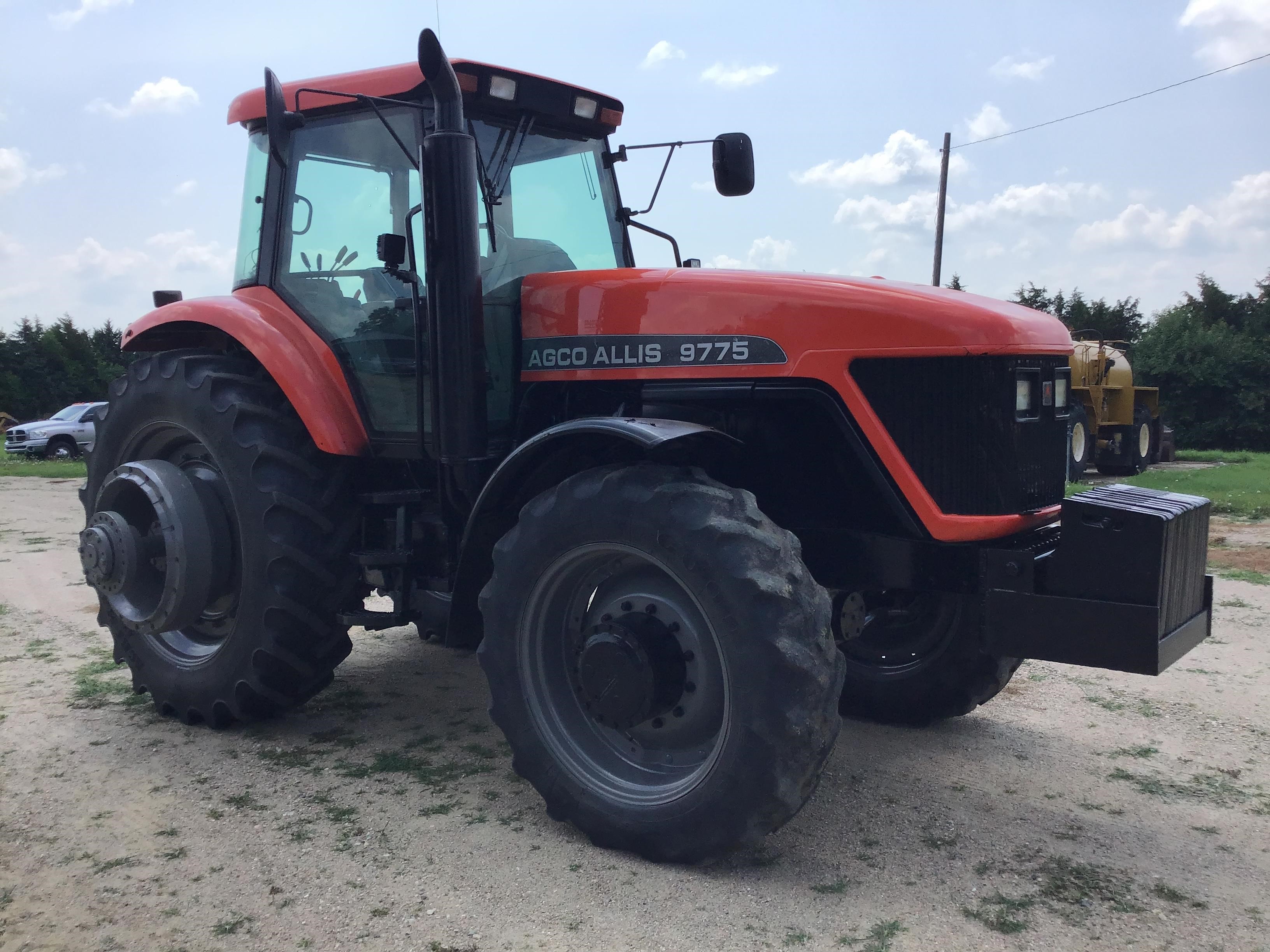

AGCO Allis 9775
AGCO Allis 9775 — Row-Crop tractor · 205 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Max power
164.6 kW
Weight
8527 kg
Hover a source tag to verify
Overview
ManufacturerAGCO AllisReference
Row-Crop tractorReference
Original price was $122,000 in 1999Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
8710similar White modelReference
Engine
Navistar 8.7L 6-cyl dieselReference
Cummins 8.3L 6-cyl dieselReference
Fuel tank454.2 LReference
Drawbar (tested)132.1 kWReference
Navistar DT530Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 136 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Cummins C8.3Reference
turbocharged aftercooled dieselReference
Displacement8.3 LReference
Bore/Stroke117 x 136 mmReference
Max power164.6 kWReference
Power at rated engine speed152.6 kWReference
Max power168.0 kWReference
Power at rated engine speed152.4 kWReference
Max power132.1 kWReference
Transmission
18-speed full power shiftReference
36-speed creeperReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
TypecreeperReference
Gears36 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)168.0 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2100Reference
Power at rated PTO speed160.9 kWReference
Power at rated PTO speed165.1 kWReference
Dimensions
Wheelbase307 cmReference
Weight8527 kgReference
Front tire16.9R-28Reference
Rear tire18.4R-42Reference
Ag front16.9R-28Reference
Ag rear18.4R-42Reference
Length515 cmReference
Width249 cmReference
Height (cab)307 cmReference
9775 Serial Numbers
Location:Console, right sideReference
1998CG001001Reference
1999CH001001Reference
1999CG275002Reference
2000J001001Reference
2001K001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Battery volts12Reference
Test results
NTTL 1794A: Navistar diesel 18-speed 4WDReference
OECD 1794: Cummins diesel 18-speed 4WDReference
Navistar diesel 18-speed 4WDSeptember 20 - 26, 2000Link: Nebraska Tractor Test 1794A fileReference
PTO performanceReference
Fuel use46.9 l/hourReference
Fuel use47.3 l/hourReference
Cummins diesel 18-speed 4WDMay 7 - 18, 2001Link: OCED Tractor Test 1794 fileReference
Fuel use51.1 l/hourReference
Fuel use49.2 l/hourReference
Fuel use50.7 l/hourReference
Drawbar performanceReference
Gear 11 used for power test.Reference
Max pull8162 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
