Tractor · 2004Unverified

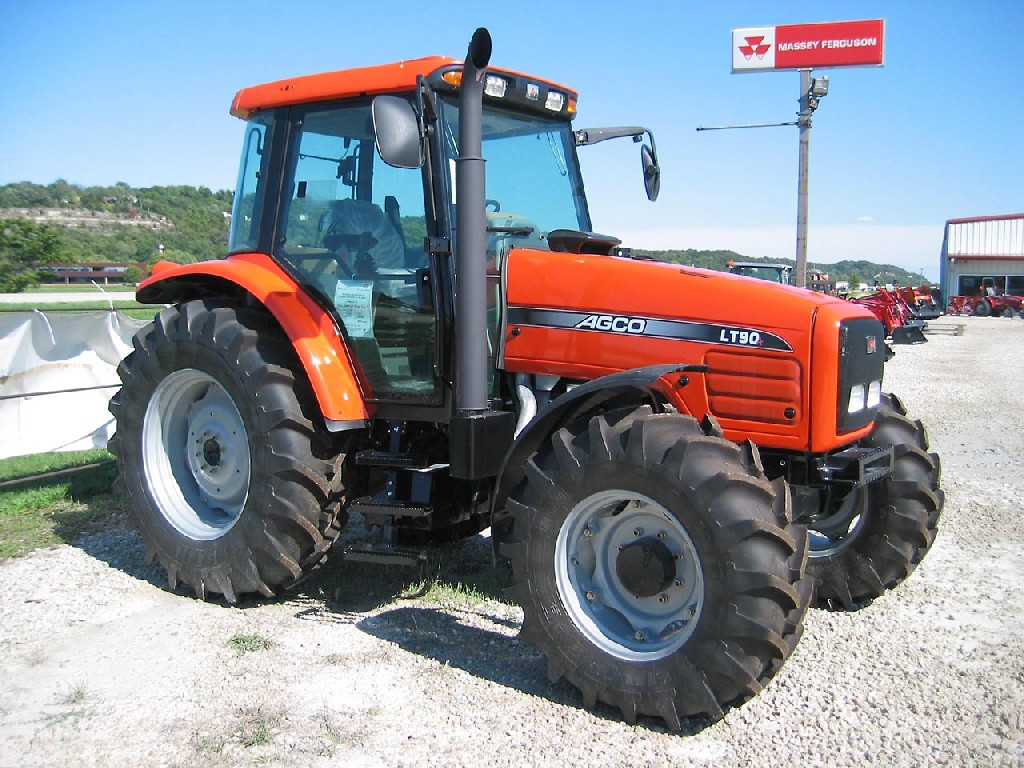

AGCO LT90
AGCO LT90 — LT Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Max power
65.4 kW
Weight
8620 to 9500 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Utility tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Cummins 4.4L 4-cyl dieselReference
Fuel tank147.6 LReference
Fuel tank204.4 LReference
Engine82.0 kWReference
CumminsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke104 x 132 mmReference
Power82.0 kWReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque436.6 NmReference
Torque RPM1251Reference
Starter volts12Reference
Max power65.4 kWReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)65.4 kWReference
Typeopen centerReference
Valves2 or 4Reference
Pump flow56.8 lpmReference
Pump flow98.4 lpmReference
Rear TypeIIReference
Rear lift3497 kgReference
Rear lift4030 kgReference
Rear Armstelescopic link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Power at rated PTO speed65.4 kWReference
Dimensions
Wheelbase246 cmReference
Weight8620 to 9500 poundsReference
Length420 cmReference
Height279 cmReference
2WD ROPS3910 kgReference
4WD ROPS4145 kgReference
2WD Cab4073 kgReference
4WD Cab4309 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 16-speed 4WDOctober 13 - 22, 2004Link: Nebraska Tractor Test 1841 fileReference
PTO performanceReference
Fuel use22.7 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
