Tractor · 1914Unverified

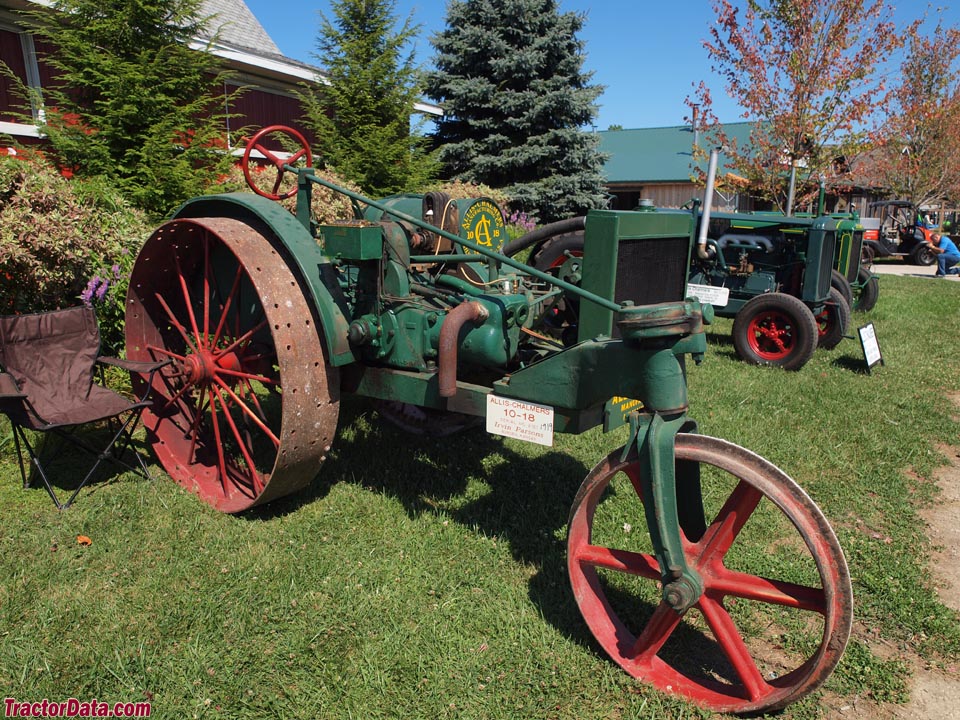

Allis Chalmers 10-18
Allis Chalmers 10-18 · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
2109 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Built in West Allis, Wisconsin, USAReference
Original price was $750 in 1916Reference
Drive3x2 2WDReference
SteeringmanualReference
Open operator station.Reference
Engine
Allis Chalmers 5.0L 2-cyl gasolineReference
Fuel tank66.2 LReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)13.4 kWReference
Allis ChalmersReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke133 x 178 mmReference
Rated RPM720Reference
Starter typehand-crankReference
Transmission
1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
Dimensions
Weight2109 kgReference
Rear tire56x12Reference
Ag rear56x12 (steel)Reference
Length355 cmReference
Width195 cmReference
Height190 cmReference
Rear axle74 mmReference
Capacities
Diameter36 cmReference
Width16 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
