Tractor · 1970Unverified

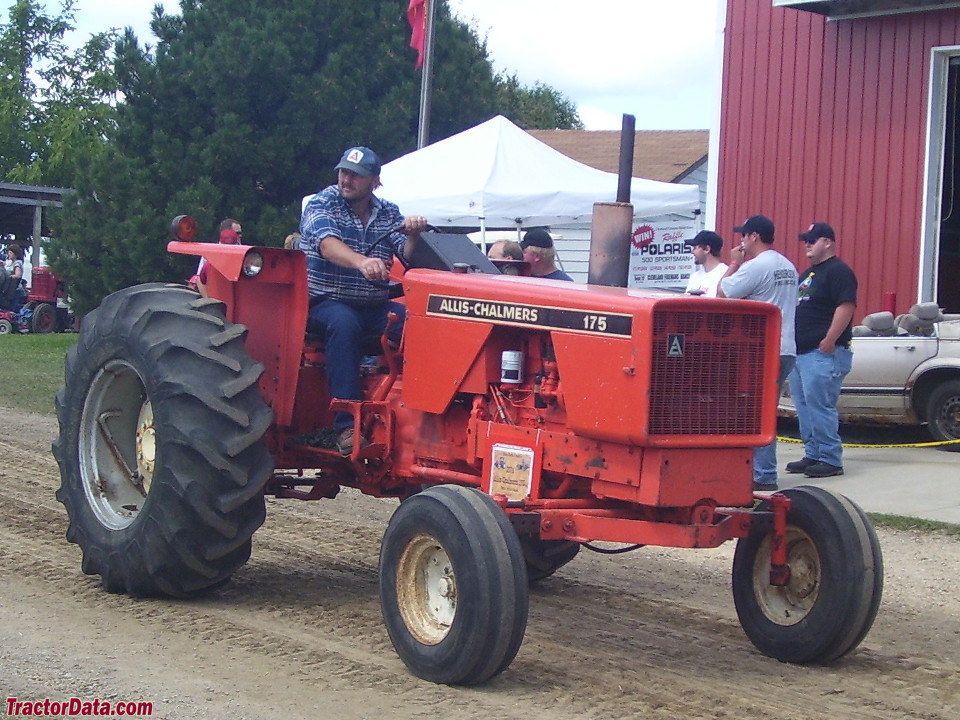

Allis Chalmers 175
Allis Chalmers 175 — Row-Crop tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Max power
40.3 kW
Weight
3551 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Total built6,494 totalReference
Total built5,485 dieselReference
Total built1,009 gasReference
Original price$15,894Reference
Two-wheel driveReference
Steeringhydrostatic powerReference
Differential mechanical band and disc brakesReference
Open operator station. Two-post ROPS optional with canopy.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Perkins 4.1L 4-cyl dieselReference
Allis-Chalmers 3.7L 4-cyl gasolineReference
Drawbar (tested)40.3 kWReference
Perkins 4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Original diesel engine, used through Allis 175 serial number 1458.Reference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2000Reference
Starter volts12Reference
Perkins 4.248Reference
The 248 cubic-inch diesel was used in the Allis 175 starting in December of 1970, serial number 1459.Reference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Oil capacity7.6 LReference
Coolant capacity14.2 LReference
Allis-Chalmers G226Reference
gasolineReference
The gasoline engine was avaialble on the Allis-Chalmers 175 until 1976.Reference
Displacement3.7 LReference
Bore/Stroke102 x 114 mmReference
Compression8.2:1Reference
Rated RPM1800Reference
Oil capacity6.6 LReference
Power at rated engine speed46.6 kWReference
Max power40.3 kWReference
Power at rated engine speed45.4 kWReference
Max power38.6 kWReference
Transmission
8-speed partial power shiftReference
TransmissionAllis-Chalmers Power DirectorReference
Typepartial power shiftReference
Gears8 forward and 2 reverseReference
Oil capacity22.7 LReference
PTO & Hydraulics
PTO (tested)46.6 kWReference
Hydraulic system26.5 LReference
Capacity26.5 LReference
Valves3Reference
Rear TypeIIReference
Rear PTOliveReference
Rear PTO Type540Reference
Power at rated PTO speed40.7 kWReference
Power at rated PTO speed41.8 kWReference
Capacities
Fuel70.0 LReference
Dimensions
Wheelbase236 cmReference
Weight3551 kgReference
Front tire6.50-16Reference
Rear tire16.9-28Reference
Ag front6.50-16Reference
Ag rear16.9-28Reference
Ag front7.50-16Reference
Ag front9.5L-15Reference
Ag rear12.4-38Reference
Ag rear15.5-38Reference
Ag rear18.4-28Reference
Length346 cmReference
Width194 cmReference
Clearance (front axle)54 cmReference
Clearance (drawbar)40 cmReference
Front tread134 to 198 cmReference
Rear tread134 to 236 cmReference
Steering wheel171 cmReference
Allis Chalmers 175 attachments
front-end loaderReference
175 Serial Numbers
Location:Torque housingReference
19701001Reference
19711477Reference
19721624Reference
19731740Reference
19742153Reference
19753255Reference
19763754Reference
19774809Reference
19785670Reference
19796321Reference
19806999Reference
Final7502Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Allis Chalmers 175 Height
Hood151 cmReference
Exhaust231 cmReference
Test results
NTTL 1043: 236 diesel 8-speed 2WDReference
NTTL 1156: gasoline 8-speed 2WDReference
236 diesel 8-speed 2WDMay 26 - June 3, 1970Link: Nebraska Tractor Test 1043 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use13.6 l/hourReference
Drawbar performanceReference
Gear 2H used for power test.Reference
Max pull2906 kgReference
Gear 1H used for pull test.Reference
Gasoline 8-speed 2WDApril 1 - 11, 1974Link: Nebraska Tractor Test 1156 fileReference
Fuel use19.3 l/hourReference
Fuel use18.2 l/hourReference
Max pull3118 kgReference
Speeds
With 16.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
