Tractor · 1970Unverified

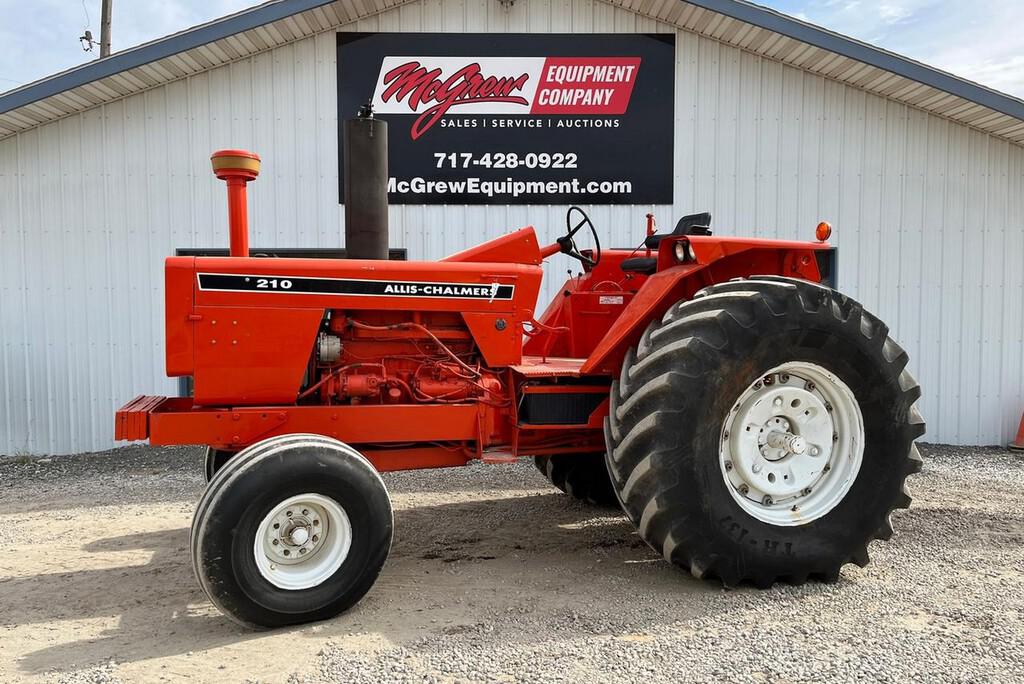

Allis Chalmers 210
Allis Chalmers 210 — Row-Crop tractor · 122 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Max power
78.3 kW
Weight
5635 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built1,471Reference
Original price$11,642Reference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station. QCS cab optional starting in 1972.Reference
Engine
Allis Chalmers 7.0L 6-cyl dieselReference
Fuel tank193.0 LReference
Drawbar (tested)78.3 kWReference
Allis Chalmers 3500Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM650-2400Reference
Starter volts12Reference
Coolant capacity19.9 LReference
Power at rated engine speed91.3 kWReference
Max power78.3 kWReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Clutch355.6mm dry discReference
Four gears (1-4) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)91.0 kWReference
PTO (tested)91.3 kWReference
Typeopen centerReference
Valves2Reference
Pump flow81.4 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Clutchhydraulic discReference
Rear PTO Type1000Reference
Dimensions
Wheelbase254 cmReference
Weight5635 kgReference
Front tire11.00-16Reference
Rear tire18.4-34Reference
Ag front11.00-16Reference
Ag rear18.4-34Reference
Ag front10.00-16Reference
Ag rear23.1-30Reference
Ag rear24.5-32Reference
Ag rear15.5-38Reference
Ag rear18.4-38Reference
Ag rear20.8-38Reference
Length416 cmReference
Width243 cmReference
Operating weight5635 kgReference
Ballasted weight8185 kgReference
Clearance (front axle)54 cmReference
Clearance (rear axle)66 cmReference
Bar rear axle92 mmReference
Steering wheel213 cmReference
210 Serial Numbers
Location:Serial number stamped into the tractor's torque housing.Reference
19701004Reference
19711107Reference
19722082Reference
Final2469Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Allis Chalmers 210 Height
Hood177 cmReference
Exhaust271 cmReference
Test results
Diesel 8-speed 2WDMay 3 - 13, 1971Link: Nebraska Tractor Test 1065 fileReference
PTO performanceReference
Fuel use30.3 l/hourReference
Drawbar performanceReference
Gear 4L used for power test.Reference
Max pull6360 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
