Tractor · 1979Unverified

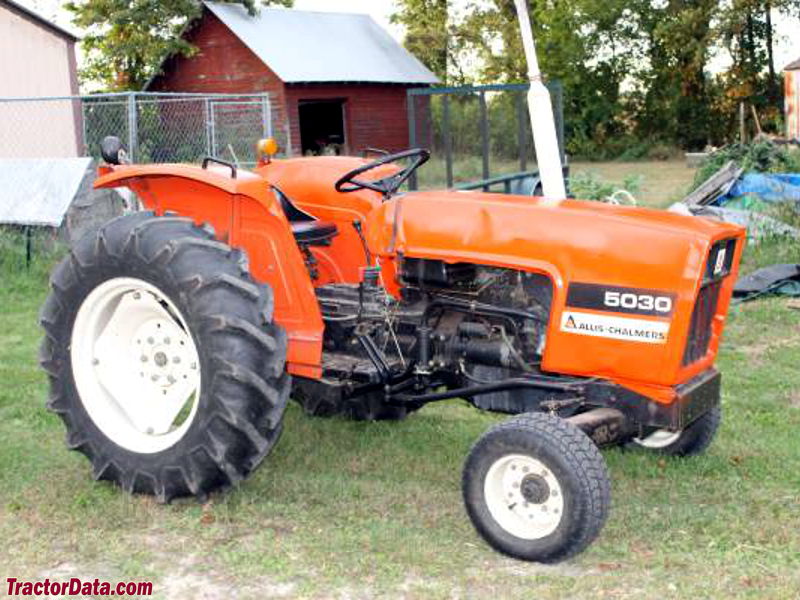

Allis Chalmers 5030
Allis Chalmers 5030 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Max power
16.8 kW
Weight
2100 to 2530 pounds
Hover a source tag to verify
Overview
DistributorAllis ChalmersReference
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in Osaka, JapanReference
Original price was $9,230 in 1985Reference
Two-wheel driveReference
Manual steeringReference
Differential mechanical drum and shoe brakesReference
Two-post ROPS, optional ROPS canopyReference
Variants
E280similar Hinomoto modelReference
9528similar Simplicity modelReference
Engine
Toyosha 1.5L 2-cyl dieselReference
Engine23.1 kWReference
Drawbar (claimed)16.7 kWReference
Plows2Reference
Drawbar (tested)16.8 kWReference
Toyosha S148Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke97 x 100 mmReference
Power23.1 kWReference
Air cleanerdryReference
Compression23:1Reference
Rated RPM2500Reference
Idle RPM750-2750Reference
Firing order1-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity5.0 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Power at rated engine speed19.7 kWReference
Max power16.8 kWReference
Transmission
8-speed unsynchronized gearReference
12-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Clutch215mm dry discReference
Oil capacity25.4 LReference
Four gears (1-4) in two ranges (low/high). Tractor must be stopped, and clutch used, to shift gears or range.Reference
Gears12 forward and 3 reverseReference
Oil capacity20.8 LReference
Four gears, plus reverse, with high, low, and creeper ranges.Reference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
PTO (tested)19.7 kWReference
Hydraulic system25.4 LReference
Typeopen centerReference
Capacity25.4 LReference
Valves0 or 1Reference
Pump flow20.6 lpmReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@2320Reference
Power at rated PTO speed19.1 kWReference
Capacities
Fuel26.5 LReference
Dimensions
Wheelbase156 cmReference
Weight2100 to 2530 poundsReference
Front tire5.00-15Reference
Rear tire12.4-24Reference
Ag front5.00-15Reference
Ag rear12.4-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Lawn/turf rear20x8.00-10Reference
Length255 cmReference
Width135 cmReference
Clearance (front axle)36 cmReference
Clearance (rear axle)39 cmReference
Front tread103 to 129 cmReference
Rear tread103 to 158 cmReference
Shipping952 kgReference
Operating1147 kgReference
Ballasted1758 kgReference
Steering wheel136 cmReference
Allis Chalmers 5030 attachments
front-end loaderReference
5030 Serial Number Location
Serial number plate under steering wheel, ahead of the gear shift lever.Reference
5030 Serial Numbers
19792005Reference
19802255Reference
19812976Reference
19823520Reference
19834066Reference
19844214Reference
19854359Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps12Reference
Battery volts12Reference
Battery AH70Reference
Attachment overview
Matching equipment listed for the Allis 5030 included 60-inch rear mount mowers and a 50-inch tiller. A 72-inch rear blade or 66-inch box scraper were specified.Reference
Allis Chalmers 5030 Height
Hood114 cmReference
ROPS218 cmReference
Exhaust208 cmReference
Test results
Diesel 8-speed 2WDApril 6 - 21, 1978Link: Nebraska Tractor Test 1271 fileReference
PTO performanceReference
Fuel use7.6 l/hourReference
Fuel use7.2 l/hourReference
Drawbar performanceReference
Gear 1H used for power test.Reference
Max pull1537 kgReference
Gear 3L used for pull test.Reference
Speeds
With 12.4x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
