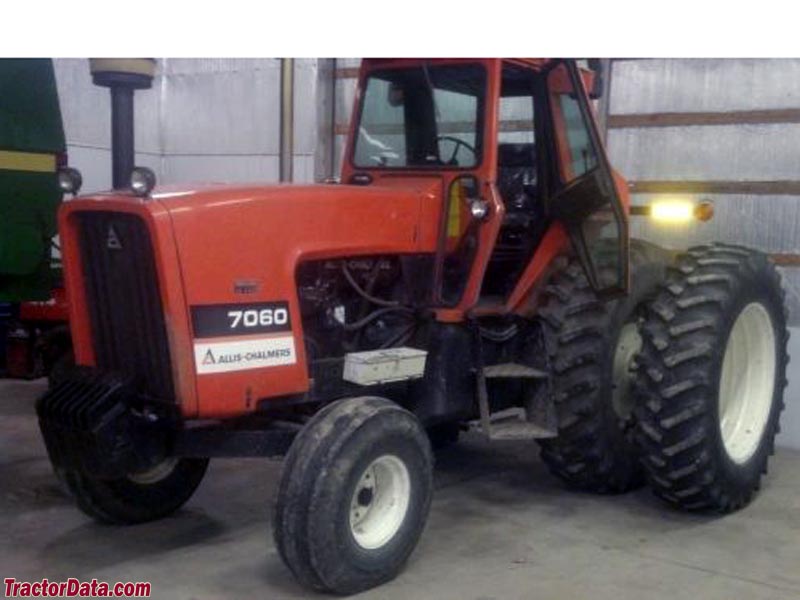

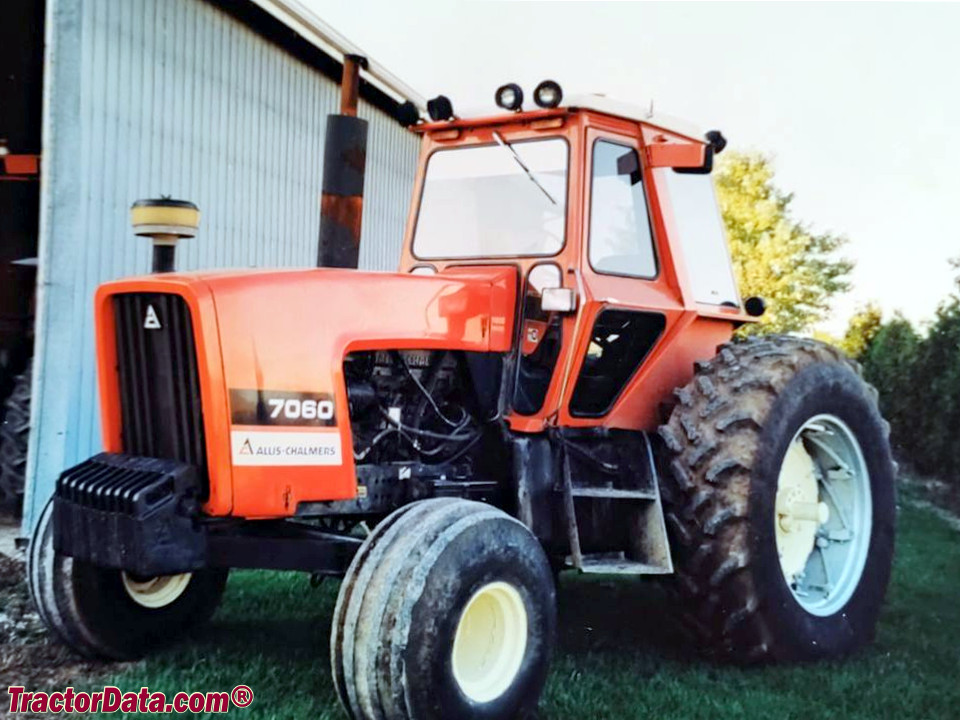

Allis Chalmers 7060
Allis Chalmers 7060 — Row-Crop tractor · 162 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
162 hp
Max power
101.5 kW
Weight
11530 to 14645 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built7,796Reference
Original price$48,696Reference
In 1978, serial number 6001, the Allis Chalmers model 7060 received the new Accousta Cab II with console shift, new seating, and new lighting. The tractor's color changed from an orange chassis to black.Reference
Two-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Differential power wet disc brakesReference
Accousta cab standard, A/C optional. Accousta cab II available in 1978.Reference
Engine
Allis Chalmers 7.0L 6-cyl dieselReference
Fuel tank193.0 LReference
Fuel tank49.2 LReference
Engine143.2 kWReference
Drawbar (tested)105.6 kWReference
Allis Chalmers 670IReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooled InlineReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Power143.2 kWReference
Air cleanerdry with pre-cleanerReference
Compression16:1Reference
Rated RPM2300Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity30.3 LReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.381 mmReference
Oil capacity23.7 LReference
Power at rated engine speed120.4 kWReference
Max power101.5 kWReference
Power at rated engine speed120.4 kWReference
Max power105.6 kWReference
Transmission
20-speed partial power shiftReference
12-speed partial power shiftReference
TransmissionAllis-Chalmers Power DirectorReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
Oil capacity28.0 LReference
Oil typeAllis-Chalmers Power Fluid 821Reference
The Power Director uses a gear shift, range shift, and the two-speed Power Director. The gear shift lever selects one of five forward gears, or reverse. The range shift lever selects between high and low ranges. The tractor must be stopped, and the clutch pedal used, to change the gear or range. Once in motion, the Power Director is operated by means of two foot switches that can be switched, on the move, without the clutch.Reference
TransmissionAllis-Chalmers Power ShiftReference
Gears12 forward and 2 reverseReference
Oil capacity26.5 LReference
The power shift transmission uses a gear shift and range shift. The range shift lever selects one of two ranges. The tractor must be stopped, and the clutch used, to change the range. The gear shift selects one of six forward gears, and reverse. The gears can be shifted while the tractor is in motion, simply by moving the lever. The clutch is needed to switch from a forward gear to reverse.Reference
PTO & Hydraulics
PTO (claimed)120.1 kWReference
PTO (tested)120.4 kWReference
Typeclosed centerReference
Valves2 or 3Reference
Pump flow83.3 lpmReference
Total flow170.3 lpmReference
Steering flow36.0 lpmReference
Rear Type3/2Reference
Rear lift (at 24"/610mm)3030 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000 (optional)Reference
Power at rated PTO speed119.6 kWReference
Power at rated PTO speed120.5 kWReference
Dimensions
Wheelbase269 cmReference
Weight11530 to 14645 poundsReference
Front tire11.00x16Reference
Rear tire18.4x38Reference
Ag front11.00x16Reference
Ag rear18.4x38Reference
Ag front10.00x16Reference
Ag front14Lx16Reference
Ag rear23.1x30Reference
Ag rear24.5x32Reference
Ag rear30.5x32Reference
Ag rear15.5x38Reference
Ag rear16.9x38Reference
Ag rear20.8x38Reference
Ag rear18.4x42Reference
Length414 cmReference
Width242 cmReference
Width303 cmReference
Ground clearance55 cmReference
Ground clearance71 cmReference
Rear axle95 mmReference
Rear axle101 mmReference
Shipping5230 kgReference
Operating6345 kgReference
Operating6642 kgReference
Ballasted9326 kgReference
Steering wheel220 cmReference
Allis Chalmers 7060 attachments
front-end loaderReference
7060 Serial Numbers
Location:Above PTO shieldReference
19741001Reference
19751299Reference
19762749Reference
19774582Reference
19786001Reference
19796789Reference
19807693Reference
19818442Reference
Final9142Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Batteries2Reference
Batteries4 (optional)Reference
Battery volts12Reference
Allis Chalmers 7060 Height
Hood175 cmReference
Exhaust297 cmReference
Test results
NTTL 1167: diesel Power Director 2WDReference
NTTL 1197: diesel Power Shift 2WDReference
Diesel Power Director 2WDOctober 30 - November 11, 1974Link: Nebraska Tractor Test 1167 fileReference
PTO performanceReference
Fuel use38.6 l/hourReference
Fuel use37.9 l/hourReference
Drawbar performanceReference
Gear 4-Slow-Hi used for power test.Reference
Max pull7879 kgReference
Gear 1-Slow-Hi used for pull test.Reference
Diesel Power Shift 2WDNovember 5 - 19, 1975Link: Nebraska Tractor Test 1197 fileReference
Fuel use38.2 l/hourReference
Fuel use39.0 l/hourReference
Gear 1-High used for power test.Reference
Max pull8097 kgReference
Gear 2-Low used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
