Tractor · 1982Unverified

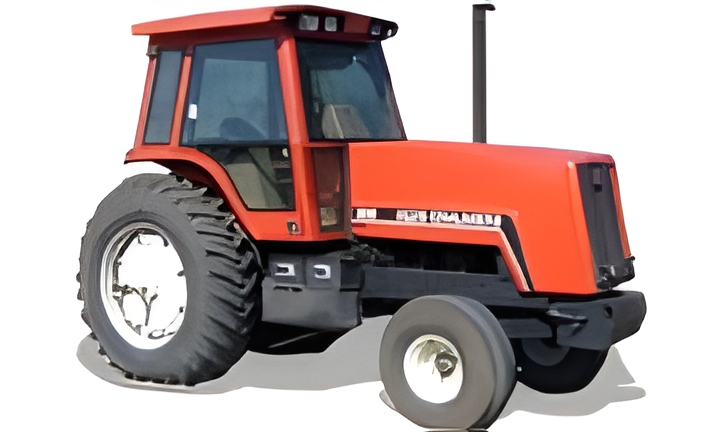

Allis Chalmers 8010

Name: Allis Chalmers 8010
Brand: Allis Chalmers

Allis Chalmers 8010 — Row-Crop tractor · 107 hp. Reference specifications; pending source verification.

The Allis Chalmers 8010 is a tractor model with a rated power output of 107 horsepower, falling within the mid-range of its class. It was produced from 1982 to 1985. Key features include a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The operating weight of the 8010 is listed as 12630 to 13600 pounds, suitable for operations covering an area of 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

107 hp

Max power

68.2 kW

Weight

12630 to 13600 pounds

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

107 hp

Recorded weight

5728 kg

Transmissions

16-speed partial power shift

Production years

1982-1985

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAllis ChalmersReference

Row-Crop tractorReference

Built in West Allis, Wisconsin, USAReference

Total built1,832Reference

Original price$46,176Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Steeringhydrostatic powerReference

Differential hydraulic wet discs brakesReference

Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.Reference

Variants

8010row-cropReference

8010HChigh-cropReference

Engine

Allis Chalmers 4.9L 6-cyl dieselReference

Drawbar (tested)68.2 kWReference

Allis Chalmers 649TReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement4.9 LReference

Bore/Stroke98 x 108 mmReference

Air cleanerdryReference

Compression15.5:1Reference

Rated RPM2300Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity15.1 LReference

Coolant capacity24.6 LReference

Power at rated engine speed80.1 kWReference

Max power68.2 kWReference

Transmission

16-speed partial power shiftReference

20-speed partial power shiftReference

12-speed Allis-ChalmersReference

TransmissionAllis-Chalmers Power DirectorReference

Typepartial power shiftReference

Gears16 forward and 4 reverseReference

Oil capacity28.0 LReference

Four gears (1-4) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference

Gears20 forward and 4 reverseReference

Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference

TransmissionPower ShiftReference

TypeAllis-ChalmersReference

Gears12 forward and 2 reverseReference

Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.Reference

PTO & Hydraulics

PTO (tested)80.1 kWReference

Typeclosed-center load-sensitiveReference

Valves2 or 3Reference

Pump flow83.3 lpmReference

Pump flow51.1 lpmReference

Total flow170.3 lpmReference

Steering flow36.0 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3030 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed81.7 kWReference

Capacities

Fuel227.1 LReference

Fuel94.6 LReference

Rear diff.63.2 LReference

Dimensions

2WD Wheelbase269 cmReference

4WD Wheelbase243 cmReference

Weight12630 to 13600 poundsReference

Front tire10.00-16Reference

Rear tire18.4-38Reference

2WD Ag front10.00-16Reference

4WD Ag front13.6-28Reference

Ag rear18.4-38Reference

2WD Ag front11.00-16Reference

2WD Ag front14L-16Reference

2WD Ag front18.4-16Reference

4WD Ag front14.9-28Reference

4WD Ag front14.9-24Reference

Ag rear20.8-38Reference

Ag rear18.4-42Reference

Ag rear16.9-38Reference

Length474 cmReference

Width235 cmReference

2WD Weight5728 kgReference

4WD Weight6168 kgReference

4WD 21 2WD} Clearance (front axle)44 cmReference

Clearance (rear axle)71 cmReference

8010 Serial Number Location

Serial number decal on the left side of the tractor's frame, just ahead of the fuel tank. Serial number also stamped into the casting at the rear of the tractor, above and to the left of the PTO shaft.Reference

8010 Serial Numbers

19811001Reference

19821020Reference

19831712Reference

19842266Reference

19852609Reference

Final2832Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps100Reference

Battery volts12Reference

Allis Chalmers 8010 Height

Hood175 cmReference

Cab289 cmReference

Exhaust287 cmReference

Test results

Diesel 12-speed 2WDAugust 30 - September 10, 1982Link: Nebraska Tractor Test 1446 fileReference

PTO performanceReference

Fuel use27.6 l/hourReference

Drawbar performanceReference

Gear 2F used for power test.Reference

Max pull4128 kgReference

Gear 3S used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
