Tractor · 1963Unverified

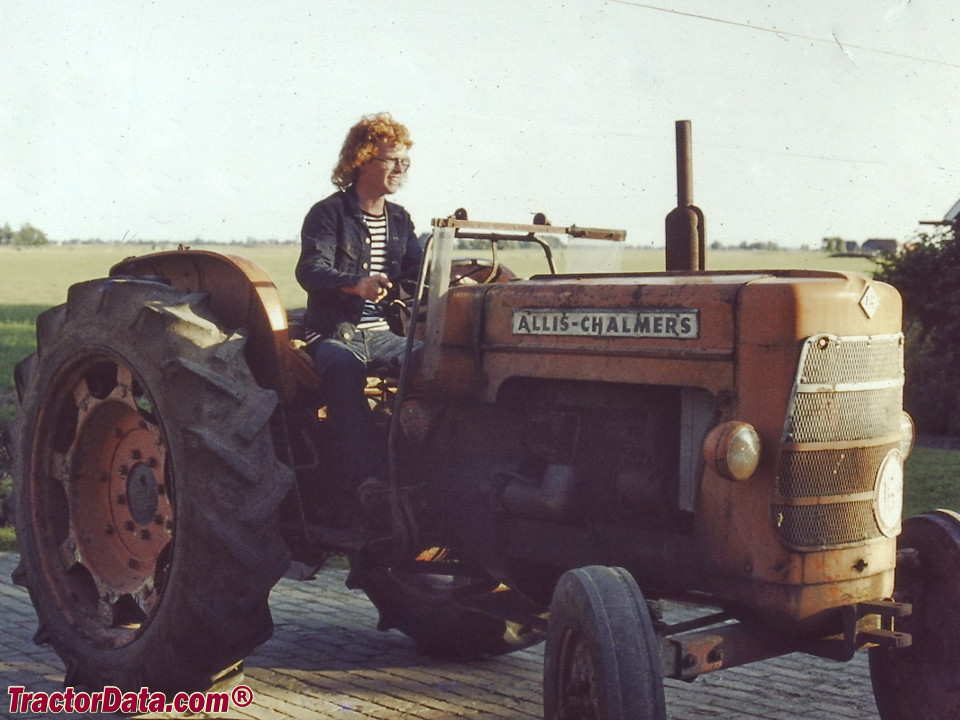

Allis Chalmers FD5
Allis Chalmers FD5 · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2454 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Built in Vendeuvre, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
Vendeuvre 4.0L 3-cyl dieselReference
Engine37.3 kWReference
Vendeuvre Type 66Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke115 x 130 mmReference
Power37.3 kWReference
Rated RPM1800Reference
Starter volts12Reference
Oil capacity14.0 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Oil capacity25.0 LReference
Four speeds (1-4) in two ranges.Reference
Capacities
Fuel70.0 LReference
Diameter27 cmReference
Width19 cmReference
RPM1280Reference
PTO & Hydraulics
Hydraulic system18.0 LReference
Capacity18.0 LReference
Rear TypeIIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1080Reference
Dimensions
Wheelbase228 cmReference
Weight2454 kgReference
Front tire5.50x20Reference
Rear tire12x38Reference
Ag front5.50x20Reference
Ag rear12x38Reference
Length329 cmReference
Width175 cmReference
Height160 cmReference
Ground clearance49 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
