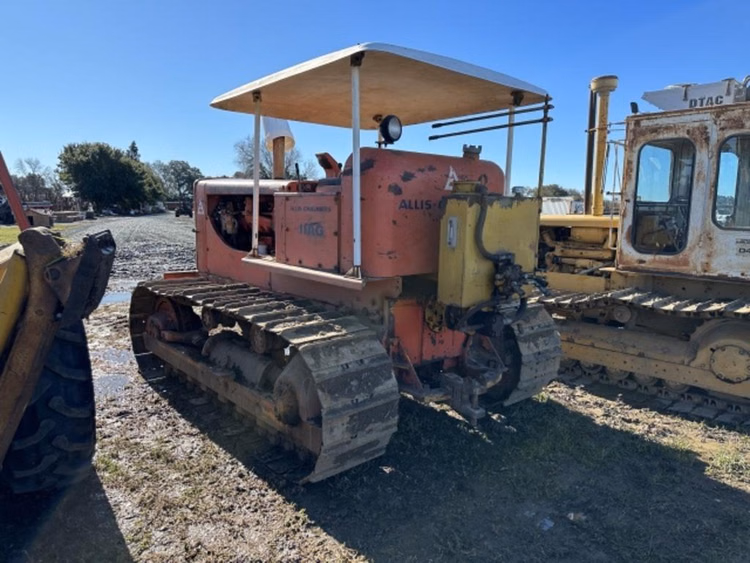

Allis Chalmers HD11AG Series B
Allis Chalmers HD11AG Series B — Agricultural Crawler tractor · 127 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
127 hp
Weight
11340 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Open operator station.Reference
Engine
Allis-Chalmers 8.5L 6-cyl dieselReference
Fuel tank367.1 LReference
Engine94.3 kWReference
Drawbar (claimed)79.2 kWReference
Allis-Chalmers 11000Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.5 LReference
Bore/Stroke113 x 141 mmReference
Power94.3 kWReference
Air cleanerdryReference
Rated RPM1800Reference
StarterelectricReference
Starter volts24Reference
Oil capacity27.4 LReference
Coolant capacity41.6 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 3 reverseReference
Oil capacity70.0 LReference
Dimensions
Weight11340 kgReference
18-inch tracksReference
Length317 cmReference
Width243 cmReference
Height (hood)213 cmReference
Operating weight11340 kgReference
Ground clearance30 cmReference
Gauge187 cmReference
Electrical
Charging systemalternatorReference
Charging amps20Reference
Allis Chalmers HD11AG Series B Tracks
Width45 cmReference
Length on ground233 cmReference
Area on ground2.1 m²Reference
Ground pressure0.5 barReference
Width50 cmReference
Width55 cmReference
Width60 cmReference
Width76 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
