Tractor · 1984Unverified

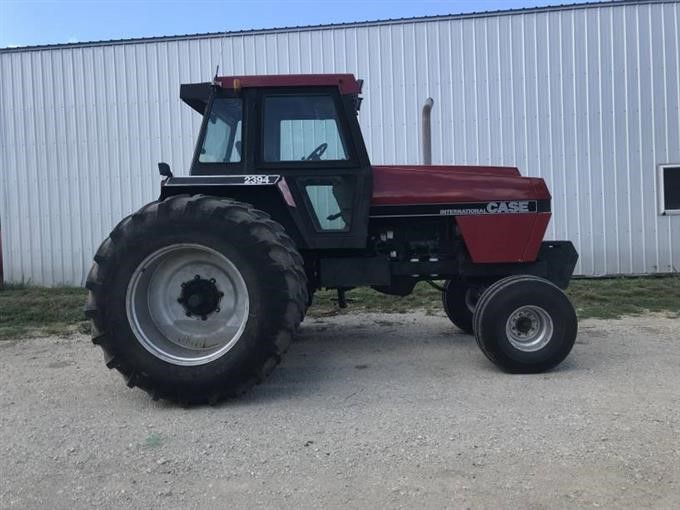

CaseIH 2394

Name: CaseIH 2394
Brand: CaseIH

CaseIH 2394 — Row-Crop tractor · 162 hp. Reference specifications; pending source verification.

The CaseIH 2394 is classified as a powerful tractor within its class, with a rated power output of 162 hp. Production of the 2394 model occurred between 1984 and 1988. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a two-wheel drive and powershift transmission. The tractor's operating weight ranges from 14270 to 16240 pounds, and is suitable for operations covering approximately 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

162 hp

Max power

102.7 kW

Weight

14270 to 16240 pounds

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

162 hp

Transmissions

12-speed three-speed power shift

Production years

1984-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Two-wheel driveReference

Power steeringReference

Wet disc brakesReference

Silent Guardian cab with air-conditioning.Reference

Engine

Case 8.3L 6-cyl dieselReference

Engine146.9 kWReference

Drawbar (claimed)105.9 kWReference

Drawbar (tested)102.7 kWReference

CaseReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Power146.9 kWReference

Rated RPM2100Reference

Starter volts12Reference

Oil capacity28.4 LReference

Coolant capacity41.6 LReference

Power at rated engine speed120.9 kWReference

Max power102.7 kWReference

Transmission

12-speed three-speed power shiftReference

24-speed four-speed power shiftReference

Typethree-speed power shiftReference

Gears12 forward and 3 reverseReference

Oil capacity121.1 LReference

Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.Reference

Typefour-speed power shiftReference

Gears24 forward and 3 reverseReference

Clutchhydraulic wet discReference

Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.Reference

PTO & Hydraulics

PTO (claimed)119.3 kWReference

PTO (tested)120.9 kWReference

Hydraulic system121.1 LReference

Typeclosed centerReference

Capacity121.1 LReference

Pressure155.1 barReference

Valves2 to 4Reference

Pump flow102.2 lpmReference

Steering flow30.3 lpmReference

Steering press.137.9 barReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)3515 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type1000Reference

Capacities

Fuel321.7 LReference

Fuel94.6 LReference

Max capacity9298 kgReference

Dimensions

Wheelbase299 cmReference

Weight14270 to 16240 poundsReference

Front tire11.00x16Reference

Rear tire18.4x38Reference

Ag front11.00x16Reference

Ag rear18.4x38Reference

Ag front14Lx16Reference

Ag rear24.5x32Reference

Ag rear30.5x32Reference

Ag rear20.8x38Reference

Ag rear18.4x42Reference

Ag rear20.8x42Reference

Width243 cmReference

Width304 cmReference

Bar rear axle98 by 2438 mmReference

Bar rear axle98 by 3048 mmReference

Rear tread152 to 279 cmReference

Rear tread152 to 335 cmReference

Shipping6472 kgReference

Operating7366 kgReference

2394 Serial Numbers

Location:Inside cab or on right-front frameReference

19849931802Reference

19859939020Reference

19869941573Reference

19879945454Reference

19889948517Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps72Reference

Charging amps105Reference

Battery volts12Reference

Test results

Diesel 24-speed 2WDJune 7 - 23, 1984Link: Nebraska Tractor Test 1527 fileReference

PTO performanceReference

Fuel use39.7 l/hourReference

Drawbar performanceReference

Fuel use39.0 l/hourReference

Gear 3-4 used for power test.Reference

Max pull7029 kgReference

Gear 2-2 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
