Tractor · 1992Unverified

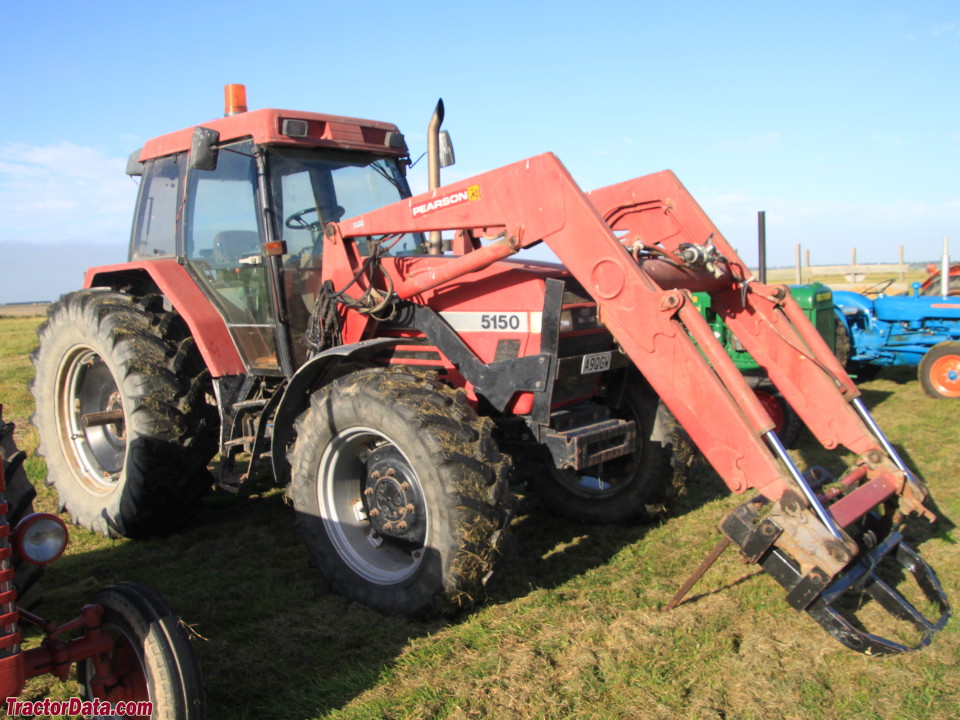

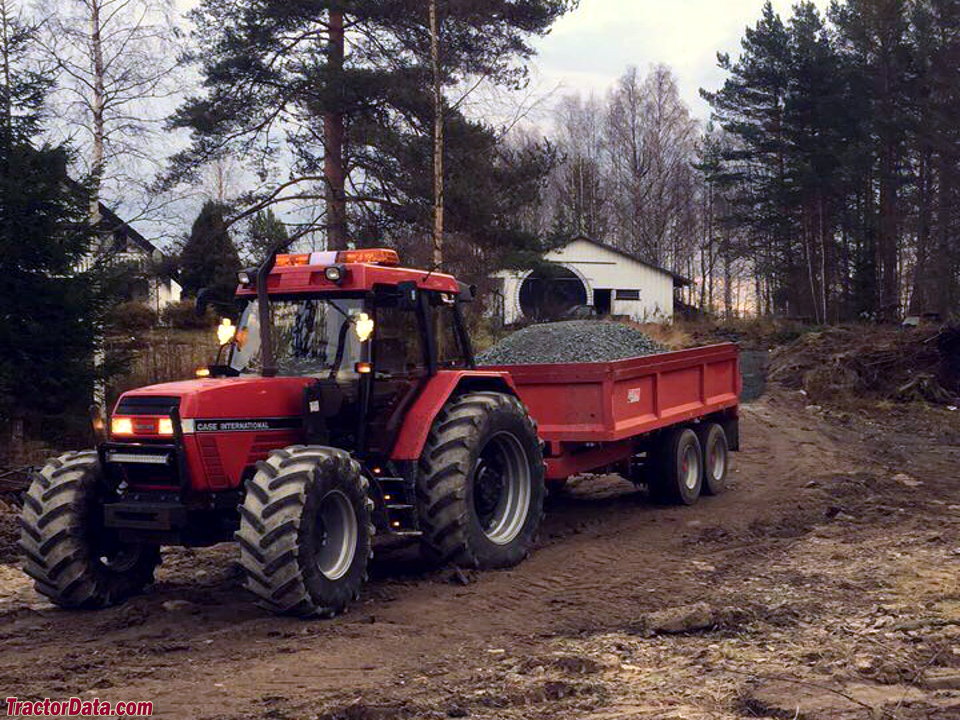

CaseIH 5150 Maxxum
CaseIH 5150 Maxxum — Maxxum Series · 112 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
112 hp
Weight
5600 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Neuss, GermanyReference
Four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 5.9L 6-cyl dieselReference
Engine98.4 kWReference
CDC 6T-590Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Power98.4 kWReference
Fuel systemdirect injectionReference
Compression17.5:1Reference
Rated RPM2200Reference
Idle RPM700-2400Reference
Torque515.0 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.0 LReference
Coolant capacity20.8 LReference
Transmission
16-speed four-speed power shiftReference
24-speed creeperReference
Typefour-speed power shiftReference
Gears16 forward and 12 reverseReference
Four power shift gears in four synchronized ranges with power shuttle.Reference
TypecreeperReference
Gears24 forward and 20 reverseReference
PTO & Hydraulics
PTO (claimed)83.5 kWReference
Hydraulic system76.1 LReference
Capacity76.1 LReference
Pressure190.0 barReference
Pump flow78.3 lpmReference
Rear TypeIIReference
Front HitchIIReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1880Reference
Engine RPM1000@2200Reference
Capacities
Fuel169.9 LReference
Dimensions
Wheelbase258 cmReference
Weight5600 kgReference
Front tire16.9x24Reference
Rear tire18.4x38Reference
Standard tires (ag)Front: 16.9x24. Rear: 18.4x38Reference
Length445 cmReference
Width220 cmReference
Height (cab)273 cmReference
Shipping weight5600 kgReference
Ground clearance46 cmReference
Electrical
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH105Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
