Tractor · 1985Unverified

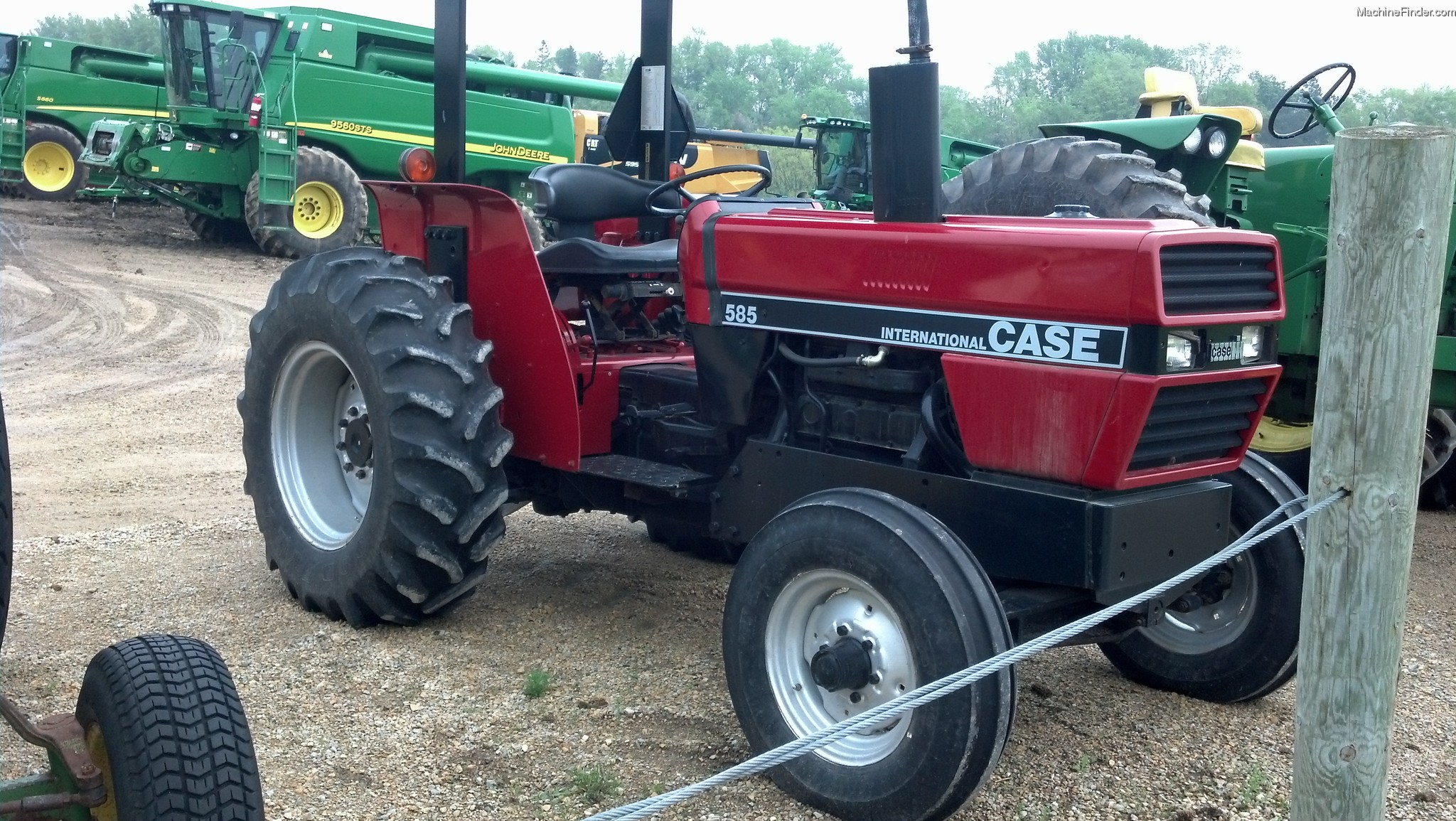

CaseIH 585
CaseIH 585 — 85 Utility Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
5640 to 6765 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $20,000 in 1990Reference
Two- or four-wheel driveReference
Power steeringReference
Two-post ROPSReference
Variants
585utilityReference
585-OorchardReference
Engine
CaseIH 3.4L 4-cyl dieselReference
Engine44.7 kWReference
CaseIH D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 111 mmReference
Power44.7 kWReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speedReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Valves1 or 2Reference
Pump flow57.2 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1456 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel75.7 LReference
Max capacity4604 kgReference
Dimensions
Wheelbase198 cmReference
Weight5640 to 6765 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Length359 cmReference
Width185 cmReference
Height245 cmReference
2WD Shipping2558 kgReference
4WD Shipping3068 kgReference
585 Serial Numbers
198515000Reference
198618000Reference
198719201Reference
198822268Reference
198924954Reference
199027087Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
