Tractor · 1985Unverified

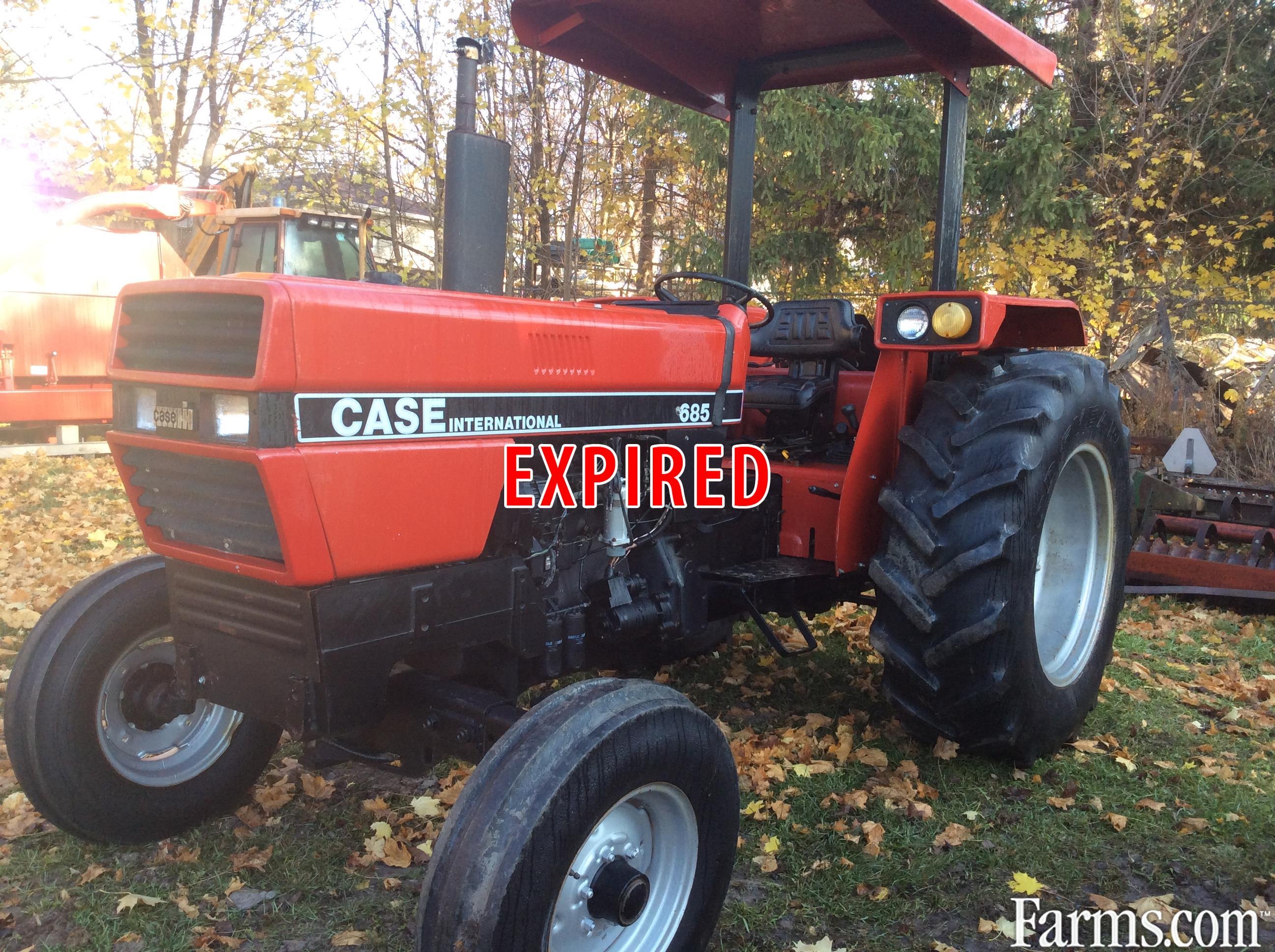

CaseIH 685
CaseIH 685 — 85 Utility Series · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Max power
39.4 kW
Weight
2567 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $22,300 in 1990Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
685utilityReference
685-OorchardReference
Engine
CaseIH 3.9L 4-cyl dieselReference
Engine50.8 kWReference
Drawbar (tested)39.4 kWReference
CaseIH D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power50.8 kWReference
Air cleanerdual paper elementsReference
Compression16:1Reference
Rated RPM2400Reference
Starter volts12Reference
Power at rated engine speed45.5 kWReference
Max power39.4 kWReference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutch304mm dry discReference
Four synchronized gears in two ranges, plus reverse range.Reference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)47.2 kWReference
PTO (claimed)43.6 kWReference
PTO (claimed)46.0 kWReference
PTO (tested)45.5 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Pressure172.4 barReference
Valves1 or 2Reference
Pump flow59.8 lpmReference
Pump flow70.4 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1478 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2140Reference
Engine RPM1000@2190Reference
Power at rated PTO speed43.8 kWReference
Capacities
Fuel75.7 LReference
Max capacity4604 kgReference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase216 cmReference
Weight2567 kgReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Length359 cmReference
Width162 cmReference
2WD Height237 cmReference
4WD Height245 cmReference
Ground clearance29 cmReference
2WD Front tread132 to 195 cmReference
4WD Front tread160 to 198 cmReference
Rear tread142 to 193 cmReference
2WD Operating2567 kgReference
Ballasted4012 kgReference
685 Serial Numbers
Location:Serial number plate on the tractors front-right axle support.Reference
198515000Reference
198618000Reference
198719558Reference
198823107Reference
198926391Reference
199029371Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Test results
Diesel 16-speed 2WDOctober 7 - 14, 1986Link: Nebraska Tractor Test 1604 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use15.1 l/hourReference
Drawbar performanceReference
Gear 1HDD used for power test.Reference
Max pull3269 kgReference
Gear 2LDD used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
