Tractor · 1991Unverified

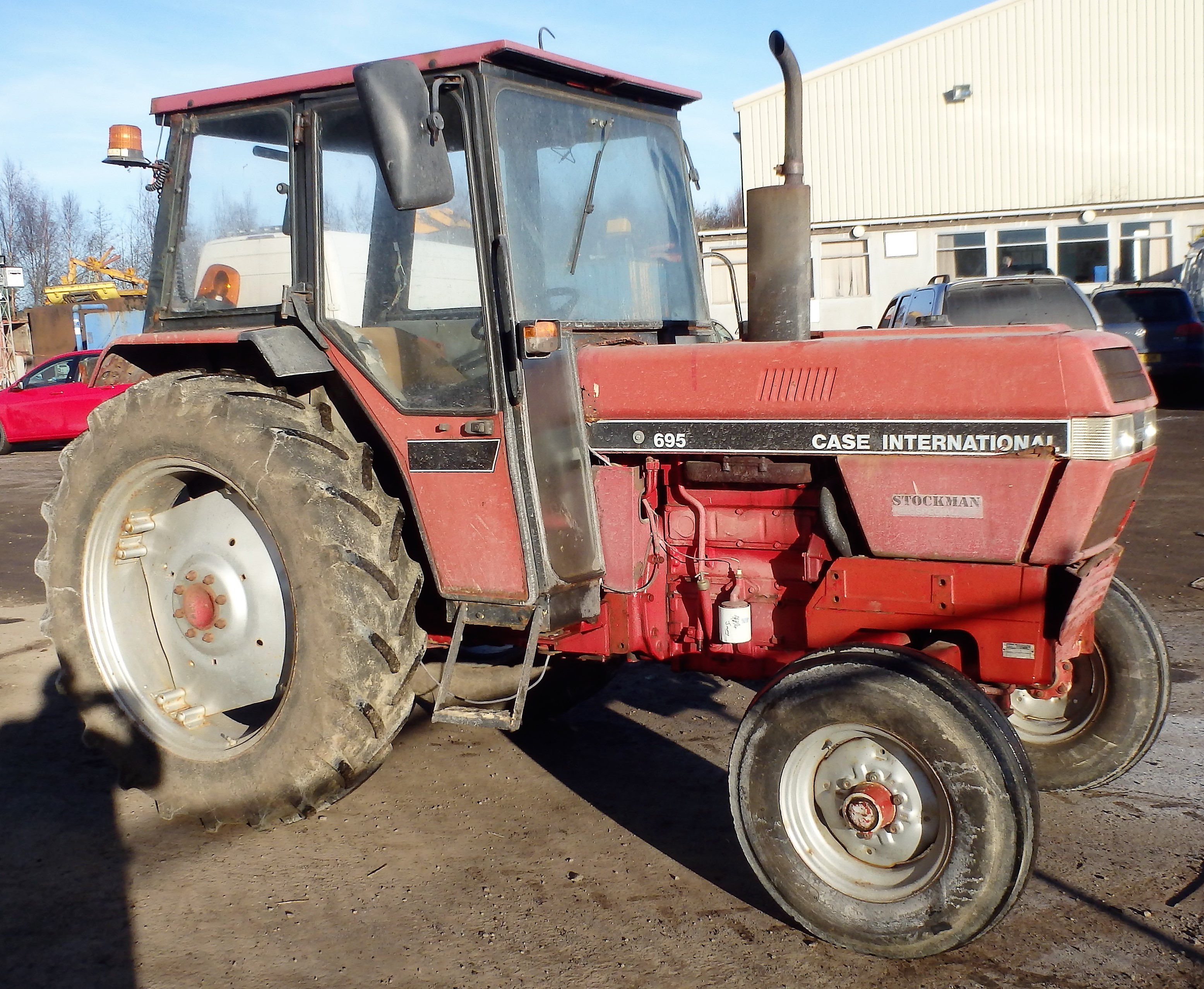

CaseIH 695
CaseIH 695 — 95 Utility Series · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Max power
39.4 kW
Weight
5720 to 7585 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $24,800 in 1994Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Case IH 3.9L 4-cyl dieselReference
Engine (gross)53.7 kWReference
Engine (net)50.7 kWReference
Drawbar (tested)39.4 kWReference
Case IHReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power (net)50.7 kWReference
Power (gross)53.7 kWReference
Air cleanerdual paper elementsReference
Compression16:1Reference
Rated RPM2400Reference
Idle RPM650-2705Reference
Starter volts12Reference
Oil capacity9.8 LReference
Coolant capacity13.7 LReference
Power at rated engine speed45.5 kWReference
Max power39.4 kWReference
Transmission
8-speed partially synchronizedReference
16-speed partial power shiftReference
8-speed synchronized shuttleReference
16-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity34.1 LReference
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.Reference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Four gears each in high and low ranges, both forward and reverse.Reference
TypecreeperReference
Four gears with high, low, and reverse ranges plus direct or creeper mode.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)45.5 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Valves1Reference
Pump flow59.8 lpmReference
Rear TypeIIReference
Rear lift1639 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed43.8 kWReference
Capacities
ROPS Fuel75.7 LReference
Cab Fuel111.7 LReference
Dimensions
Wheelbase225 cmReference
Weight5720 to 7585 poundsReference
Front tire7.50-16Reference
Rear tire14.9-24Reference
Ag front7.50-16Reference
Ag rear14.9-24Reference
Length360 cmReference
Width190 cmReference
Height (ROPS)245 cmReference
Height (cab)255 cmReference
2WD Clearance (front axle)52 cmReference
4WD Clearance (front axle)36 cmReference
2WD ROPS Shipping2594 kgReference
2WD Cab Shipping2957 kgReference
$WD Cab Shipping3077 kgReference
4WD Cab Shipping3440 kgReference
Ballasted4012 kgReference
CaseIH 695 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Case IH 2250 loaderReference
Case IH 2255 loaderReference
Test results
Diesel 16-speed 2WDOctober 7 - 14, 1986Link: Nebraska Tractor Test 1604 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use15.1 l/hourReference
Drawbar performanceReference
Gear 10 used for power test.Reference
Speeds
With 16.9x30 rear tires.Reference
