Tractor · 1997Unverified

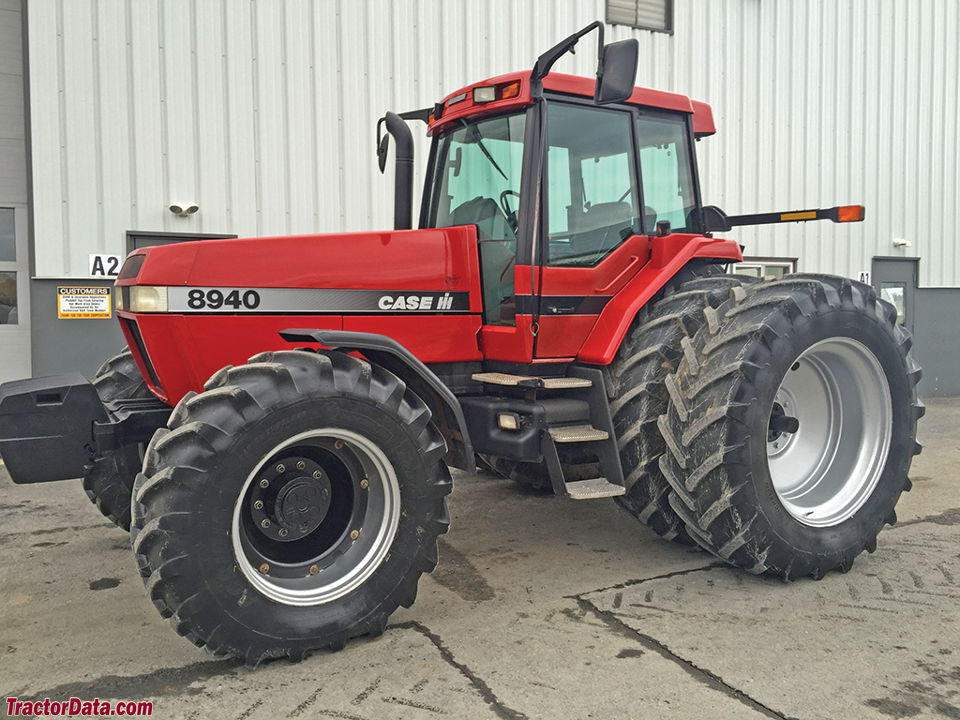

CaseIH 8940
CaseIH 8940 — Magnum 8900 Series · 207 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
207 hp
Max power
172.1 kW
Weight
15825 to 18170 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $105,000 in 1998Reference
Two- or four-wheel driveReference
Differential lockelectric rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)131.5 kWReference
CDCReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemmechanical injectionReference
Air cleanerdual dry elementReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity29.3 LReference
Max power172.1 kWReference
Power at rated engine speed154.2 kWReference
Max power131.5 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchhydraulic wet discReference
TypecreeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)152.9 kWReference
PTO (tested)172.1 kWReference
Hydraulic system172.2 LReference
Typeclosed center pressure-flow compensatedReference
Capacity172.2 LReference
Pressure151.7 barReference
Valves2 to 4Reference
Pump flow109.8 lpmReference
SCV flow102.2 lpmReference
Rear TypeIII/IIINReference
Controlelectronic lower-link draft sensingReference
Rear lift6237 kgReference
Rear lift7257 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel442.8 LReference
Fuel393.6 LReference
Dimensions
Wheelbase300 cmReference
Weight15825 to 18170 poundsReference
Front tire14L-16.1Reference
Rear tire18.4R-42Reference
Ag front14L-16.1Reference
Ag rear18.4R-42Reference
2WD Clearance (front axle)57 cmReference
4WD Clearance (front axle)44 cmReference
Rear axle101 by 3048 mmReference
Rear axle101 by 2895 mmReference
Front tread152 to 223 cmReference
2WD Shipping7178 kgReference
4WD Shipping7640 kgReference
Operating8241 kgReference
CaseIH 8940 attachments
front-end loaderReference
8940 Serial Numbers
Location:Serial number plate on the dashboard console inside the tractor cab, near the floor.Reference
1997JJA0072001Reference
1998JJA0083000Reference
1999JJA0097438Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Charging volts12Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 16 - 29, 1997Link: OCED Tractor Test 1736 fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Fuel use46.9 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull8192 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
