Tractor · 1990Unverified

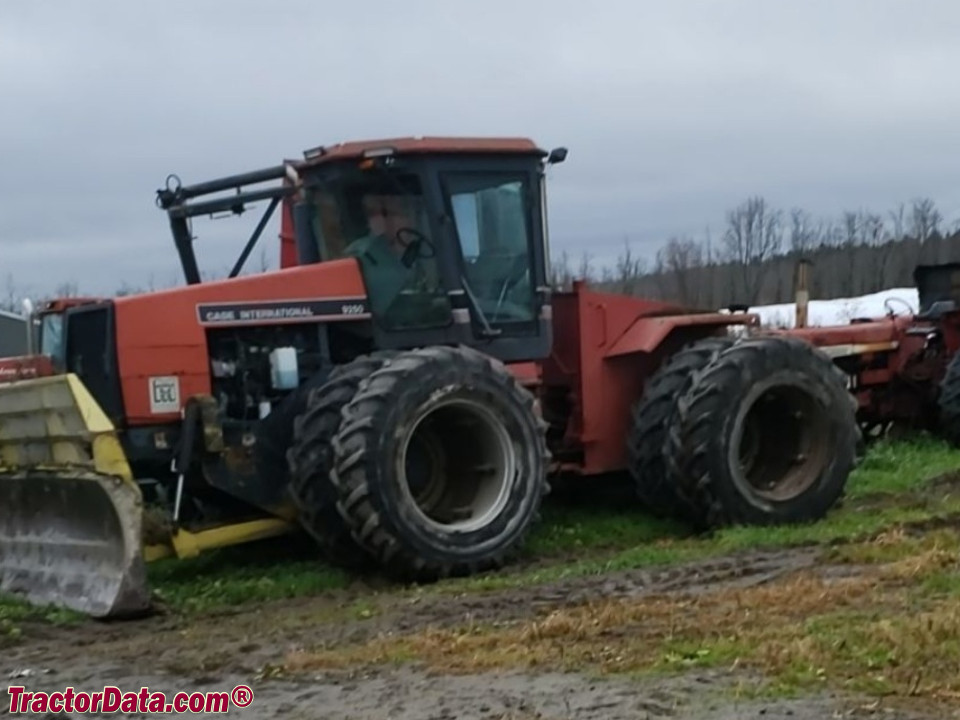

CaseIH 9250

Name: CaseIH 9250
Brand: CaseIH

CaseIH 9250 — Four-wheel Drive (4WD) tractor · 266 hp. Reference specifications; pending source verification.

The CaseIH 9250 is a tractor model with a rated output of 266 hp, positioning it among the higher-powered machines in its class. It was manufactured from 1990 to 1995 and features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a hydrostatic transmission. The listed weight of the CaseIH 9250 is 13635 kg, and it is designed for use in large-scale operations covering approximately 1,500 acres and above.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

266 hp

Max power

202.1 kW

Weight

13635 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

266 hp

Recorded weight

13635 kg

Transmissions

12-speed full power shift

Production years

1990-1995

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $116,000 in 1995Reference

Four-wheel driveReference

Steeringhydrostatic power with articulation and front-axle steeringReference

Integrated hydraulic caliper disc brakesReference

Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.Reference

Variants

9260four-wheel steerReference

9250articulatedReference

Engine

Cummins 10.0L 6-cyl dieselReference

Engine223.7 kWReference

Drawbar (tested)176.9 kWReference

Cummins LTA-10Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement10.0 LReference

Bore/Stroke125 x 136 mmReference

Power223.7 kWReference

Air cleanerdual paper elementsReference

Compression16.0:1Reference

Rated RPM2100Reference

Torque1376.3 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity41.6 LReference

Coolant capacity51.1 LReference

Max power202.1 kWReference

Power at rated engine speed198.4 kWReference

Max power176.9 kWReference

Transmission

12-speed full power shiftReference

Typefull power shiftReference

Gears12 forward and 3 reverseReference

Clutchhydraulic wet discReference

Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).Reference

PTO & Hydraulics

PTO (claimed)198.4 kWReference

PTO (tested)202.1 kWReference

Hydraulic system68.1 LReference

Typeclosed centerReference

Capacity68.1 LReference

Pressure172.4 barReference

Valves4Reference

Total flow102.2 lpmReference

Rear TypeIIIReference

Controldraft control optionalReference

Rear lift5783 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Engine RPM1000@2098Reference

Capacities

Fuel757.0 LReference

Dimensions

Wheelbase332 cmReference

Weight13635 kgReference

Front tire20.8-38Reference

Rear tire20.8-38Reference

Ag front20.8-38Reference

Ag rear20.8-38Reference

Length693 cmReference

Width237 cmReference

Width366 cmReference

Height (exhaust)363 cmReference

Operating weight13635 kgReference

Front tread152 to 330 cmReference

Rear tread152 to 330 cmReference

9250 Serial Numbers

Location:Under the left-side steps on front fenderReference

1990JCB0004600Reference

1991JCB0026501Reference

1992JCB0028400Reference

1993JCB0030500Reference

1994JEE0031773Reference

1995JEE0032808Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 12-speed 4WDSeptember 19 - 25, 1991Link: OCED Tractor Test 1651 fileReference

PTO performanceReference

Fuel use54.1 l/hourReference

Fuel use55.3 l/hourReference

Drawbar performanceReference

Fuel use54.9 l/hourReference

Gear 5 used for power test.Reference

Max pull14679 kgReference

Gear 1 used for pull test.Reference

Speeds

With 18.4x38 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
