Tractor · 1996Unverified

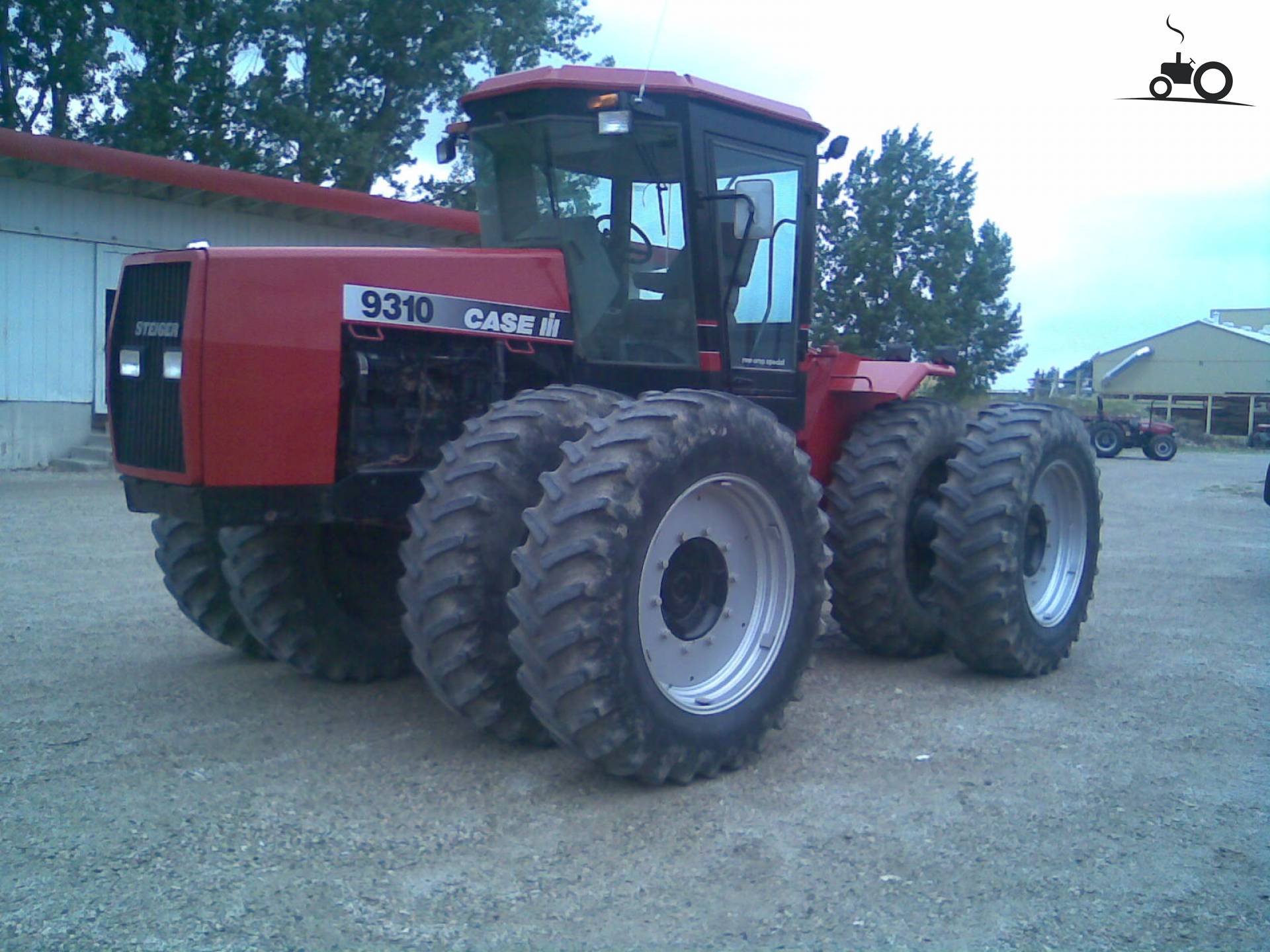

CaseIH 9310
CaseIH 9310 — Four-wheel Drive (4WD) tractor · 205 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Weight
9537 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $93,000 in 1999Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Fuel tank435.3 LReference
Engine (gross)152.9 kWReference
CDC 6TAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power (gross)152.9 kWReference
Rated RPM2100Reference
Idle RPM850-2310Reference
Starter volts12Reference
Oil capacity21.0 LReference
Oil change250 hReference
Coolant capacity27.9 LReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)125.3 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves4Reference
Pump flow106.0 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)5783 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase304 cmReference
Wheelbase305 cmReference
Weight9537 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length614 cmReference
Width225 cmReference
Height (exhaust)331 cmReference
Shipping weight9537 kgReference
Max weight11793 kgReference
Clearance (front axle)82 cmReference
Clearance (drawbar)48 cmReference
Front axle101 by 3035 mmReference
Bar rear axle101 by 3035 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps125Reference
Batteries2Reference
Battery CCA625Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
