Tractor · 1997Unverified

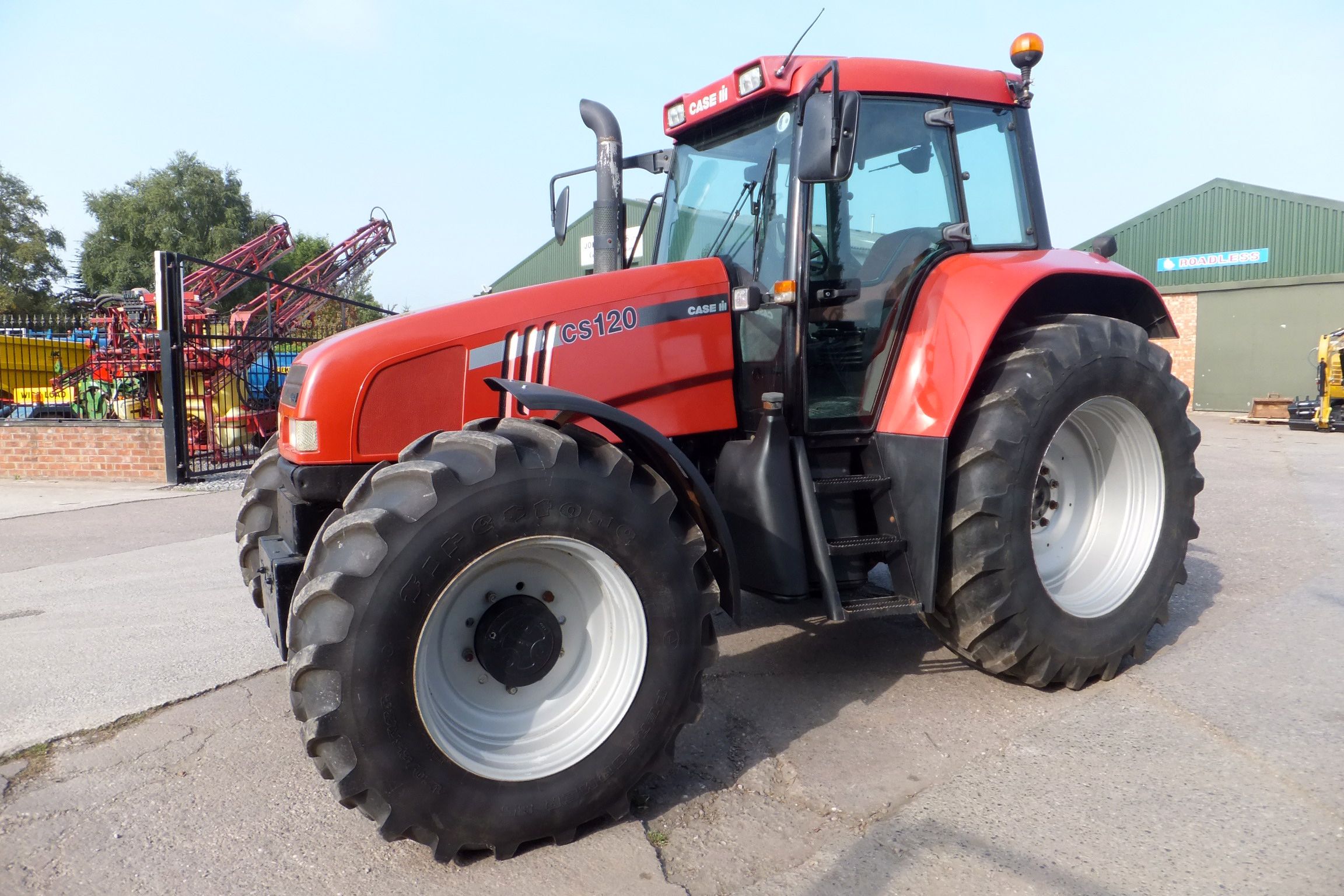

CaseIH CS 120

Name: CaseIH CS 120
Brand: CaseIH

CaseIH CS 120 — CS Series · 113 hp. Reference specifications; pending source verification.

The CaseIH CS 120 is a tractor with a rated output of 113 hp, placing it in the middle of its class in terms of power. Produced from 1997 to 2003, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a four-wheel drive system with a powershift transmission. The listed weight of the CaseIH CS 120 is 5244 kg, and it is designed for use on farms with approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

113 hp

Weight

5244 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

113 hp

Recorded weight

5244 kg

Transmissions

24-speed four-speed power shift

Production years

1997-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Saint Valentin, AustriaReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

9115similar Steyr modelReference

Engine

Sisu 6.6L 6-cyl dieselReference

Fuel tank219.9 LReference

Fuel tank300.2 LReference

Engine (net)84.6 kWReference

Sisu 620.94Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Rated Power (net)84.6 kWReference

Maximum Power (net)88.3 kWReference

Rated RPM2300Reference

Operating RPM1700-2300Reference

Torque464.0 NmReference

Torque RPM1500Reference

Oil capacity20.0 LReference

Oil change250 hReference

Transmission

24-speed four-speed power shiftReference

40-speed creeperReference

Typefour-speed power shiftReference

Gears24 forward and reverseReference

Four power shift gears in six synchronized ranges with power shuttle.Reference

TypecreeperReference

Gears40 forward and reverseReference

Optional creeper adds an additional four ranges to the standard transmission.Reference

PTO & Hydraulics

PTO (claimed)75.8 kWReference

Pressure185.0 barReference

Pump flow79.9 lpmReference

Pump flow115.1 lpmReference

Rear TypeIIIReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2200Reference

Engine RPM540E@1680Reference

Engine RPM1000@2200Reference

Engine RPM1000E@1600Reference

Front PTO Type1000Reference

Dimensions

Wheelbase280 cmReference

Weight5244 kgReference

Front tire540/65R26Reference

Rear tire600/65R38Reference

Standard tires (ag)Front: 540/65R26. Rear: 600/65R38Reference

Length483 cmReference

Width239 cmReference

Height281 cmReference

Max weight9000 kgReference

Ground clearance53 cmReference

Speeds

With 20.8R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
