Tractor · 1994Unverified

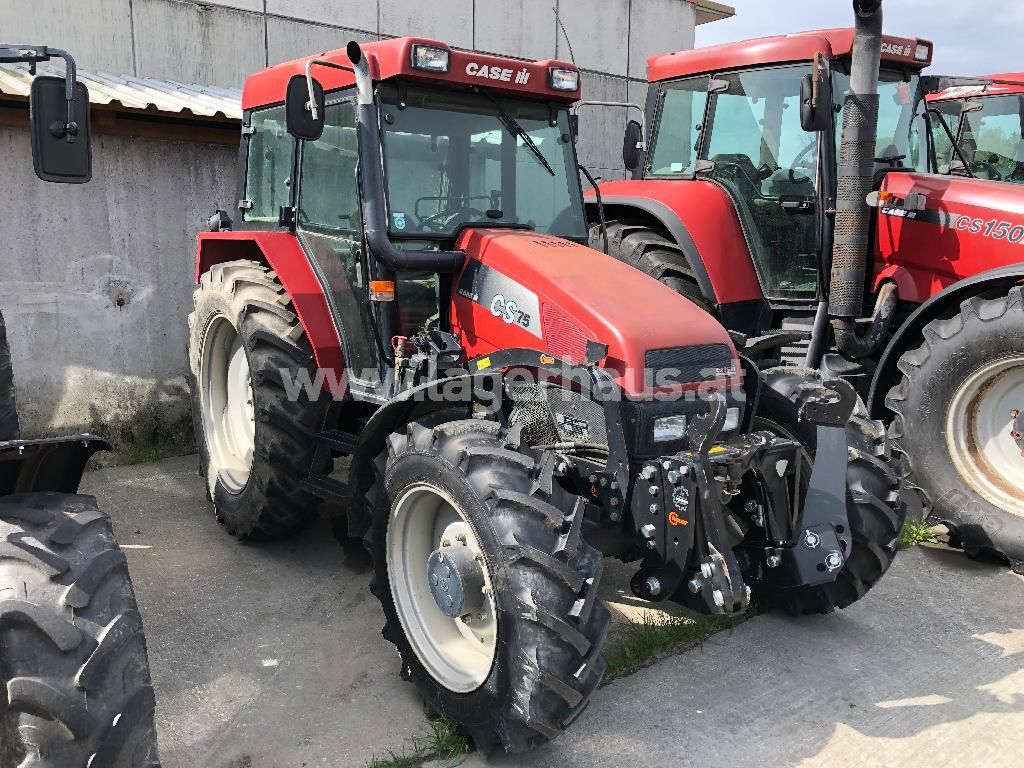

CaseIH CS 75
CaseIH CS 75 — CS Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3099 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulic ((Optional)Reference
Cab standard.Reference
Engine
MWM 3.1L 3-cyl dieselReference
Sisu 3.3L 3-cylReference
Fuel tank83.3 LReference
Engine55.9 kWReference
MWM 301.88Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
The MWM engine was used until the 1998 production year in the CS 75.Reference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power55.9 kWReference
Rated RPM2250Reference
Torque278.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Sisu 320.81Reference
turbochargedReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Rated RPM2300Reference
Torque290.2 NmReference
Torque RPM1400Reference
Transmission
16-speed synchronizedReference
32-speed creeperReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges, plus reverse, with additional high/low range.Reference
TypecreeperReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)52.0 kWReference
Total flow43.1 lpmReference
Rear TypeIIReference
Rear lift2610 kgReference
Rear PTOindependentReference
Rear PTO Type430/540/1000Reference
Engine RPM430@2130Reference
Engine RPM540@2045Reference
Engine RPM540E@1506Reference
Engine RPM1000@2130Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase223 cmReference
Weight3099 kgReference
Front tire11.2R24Reference
Rear tire13.6R36Reference
Standard tires (ag)Front: 11.2R24. Rear: 13.6R36Reference
Length378 cmReference
Width189 cmReference
Height (cab)251 cmReference
Max weight4500 kgReference
Ground clearance40 cmReference
Front tread152 cmReference
Rear tread151 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
