Tractor · 1994Unverified

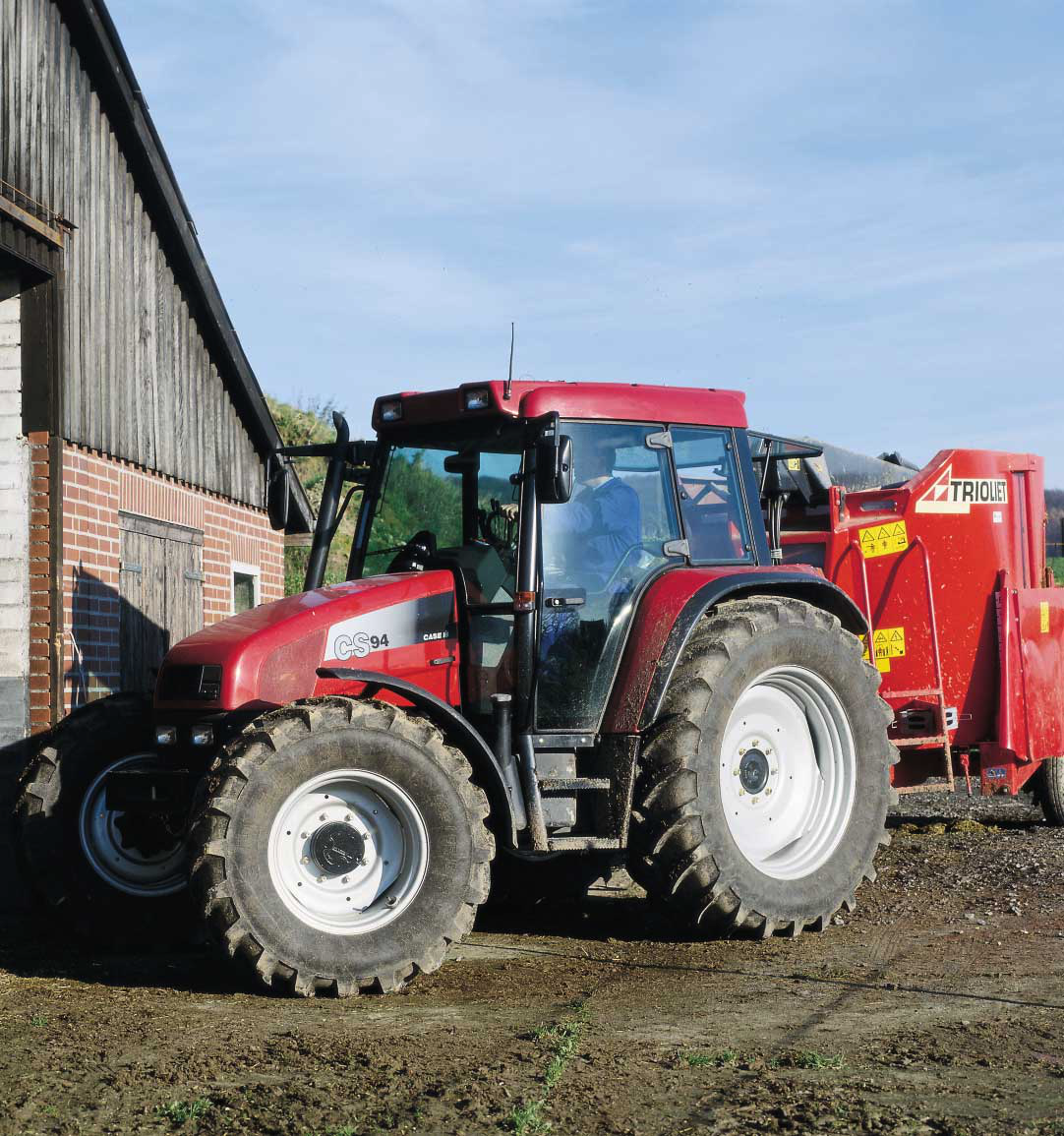

CaseIH CS 94
CaseIH CS 94 — CS Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
3949 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Engine
MWM 4.2L 4-cyl dieselReference
Sisu 4.4L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine70.1 kWReference
MWM WD 401.85Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power70.1 kWReference
Rated RPM2300Reference
Torque352.6 NmReference
Torque RPM1500Reference
Starter volts12Reference
Sisu 420.83Reference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power69.4 kWReference
Torque356.6 NmReference
Torque RPM1300Reference
Transmission
16-speed synchronizedReference
16-speed two-speed power shiftReference
32-speed creeperReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Four gears in two ranges with two-speed push-button power shift and shuttle.Reference
TypecreeperReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)64.0 kWReference
Total flow50.0 lpmReference
Total flow84.0 lpmReference
Rear TypeIIReference
Rear lift4900 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM430@2130Reference
Engine RPM540@2046Reference
Engine RPM540E@1506Reference
Engine RPM1000@2130Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase247 cmReference
Weight3949 kgReference
Front tire14.9R24Reference
Rear tire16.9R38Reference
Ag front14.9R24Reference
Ag rear16.9R38Reference
Length421 cmReference
Width217 cmReference
Height (cab)268 cmReference
Max weight6500 kgReference
Ground clearance42 cmReference
Front tread168 cmReference
Rear tread169 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
