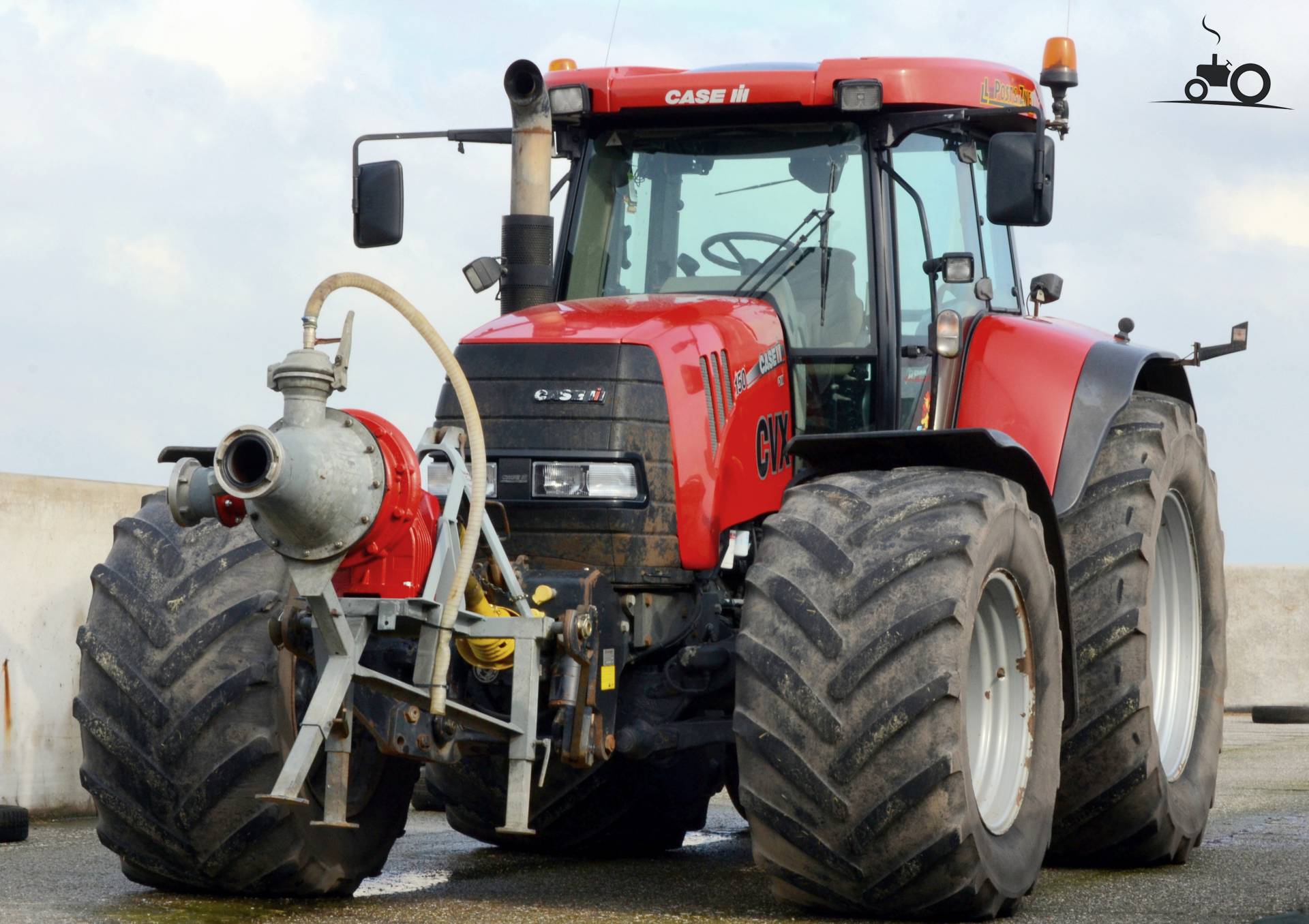

The Case IH CVX 150 is a tractor with a rated power output of 150 hp, categorising it among the more powerful models in its class. It was manufactured from 2000 to 2003. The tractor is equipped with a 6-cylinder turbocharged diesel engine and four-wheel drive, paired with a continuously variable transmission. It has a listed operating weight of 6371 kg, making it suitable for operations ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
6371 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
150 hp
Recorded weight
6371 kg
Production years
2000-2003
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
Sisu 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Engine111.9 kWReference
Sisu 620.83Reference
turbo dieselReference
6-cylinderReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power111.9 kWReference
Rated RPM2300Reference
Torque579.0 NmReference
Torque RPM1300Reference
PTO & Hydraulics
Total flow115.8 lpmReference
Rear lift9971 kgReference
Rear PTO Type540/750/1000/1400Reference
Dimensions
Wheelbase282 cmReference
Weight6371 kgReference
Front tire480/70R30Reference
Rear tire580/70R42Reference
Ag front480/70R30Reference
Ag rear580/70R42Reference
Length479 cmReference
Height304 cmReference
Transmission
Transmissioncontinuously variableReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
