Tractor · 2024Unverified

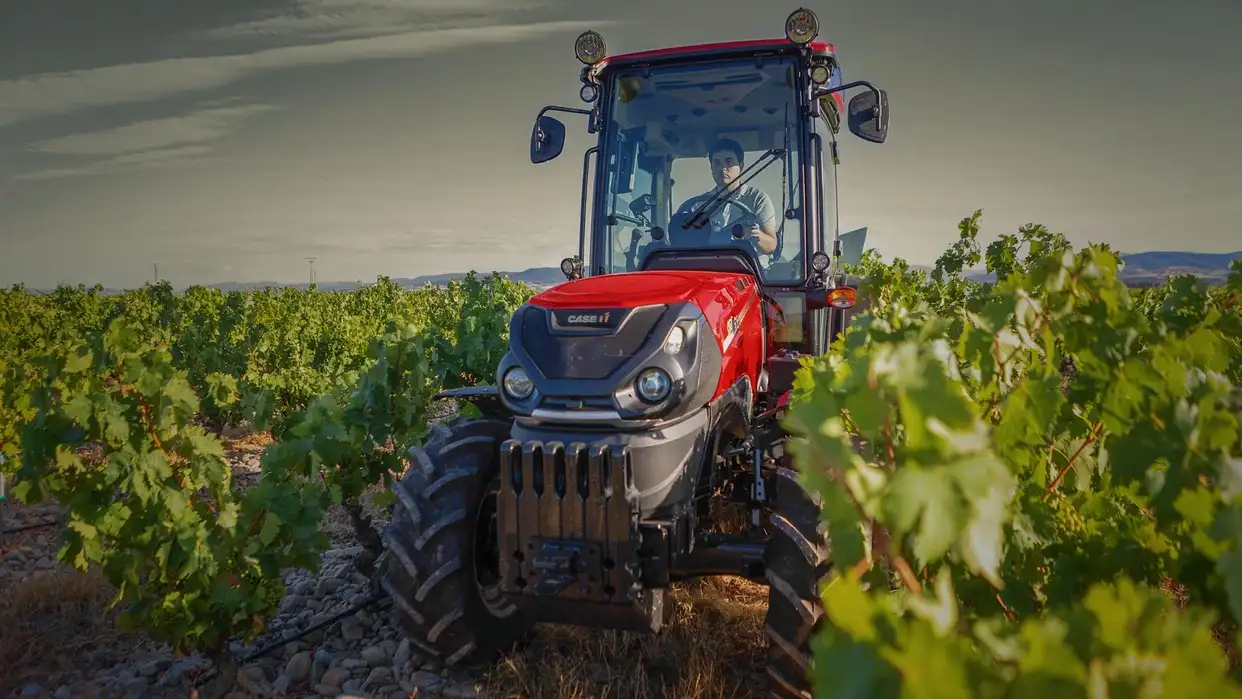

CaseIH Farmall 110CL
CaseIH Farmall 110CL — CL Series · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
ROPS. Cab optional.Reference
Engine
3.6L 4-cyl dieselReference
Cab Fuel tank74.9 LReference
ROPS Fuel tank65.1 LReference
Exhaust fluid (DEF)13.6 LReference
Engine79.0 kWReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
EmissionsTier IVReference
Power79.0 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shuttleReference
32-speed partial power shiftReference
Typepower shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
Typepartial power shiftReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
Valves3Reference
Pump flow64.0 lpmReference
Pump flow79.5 lpmReference
Rear TypeIIReference
Rear lift650 kgReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
