Tractor · 2020Unverified

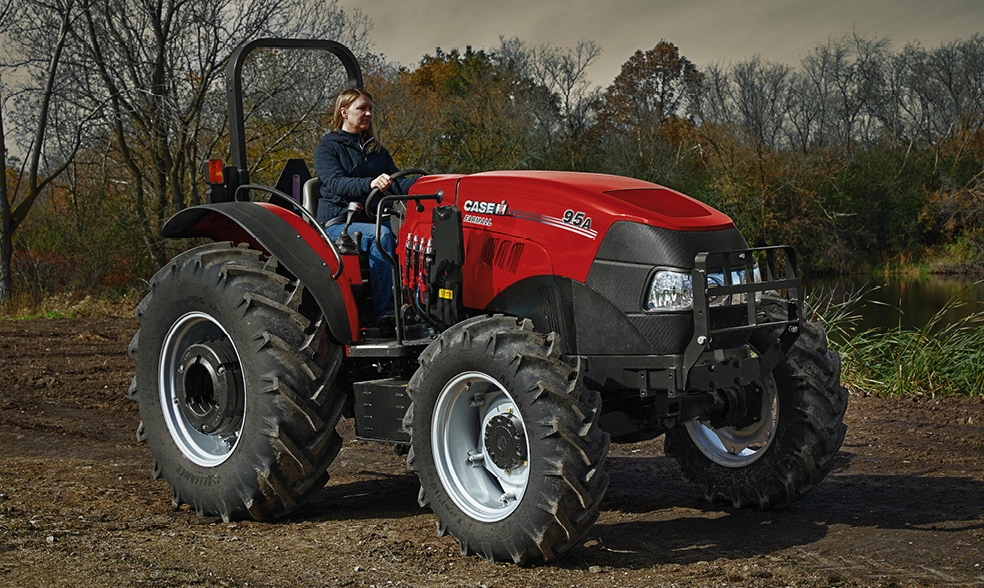

CaseIH Farmall 95A

Name: CaseIH Farmall 95A
Brand: CaseIH

CaseIH Farmall 95A — Utility tractor · 78 hp. Reference specifications; pending source verification.

The CaseIH Farmall 95A is a tractor with a rated output of 78 horsepower, placing it in the middle of its class in terms of power. It was manufactured in 2020. Equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, it features a four-wheel drive system and a 12-speed gearbox. The tractor's weight is listed as 7304 to 8492 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

78 hp

Weight

7304 to 8492 pounds

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

78 hp

Transmissions

12-speed power shuttle

Production years

2020-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

ROPS Fuel tank90.1 LReference

Cab Fuel tank109.8 LReference

Exhaust fluid (DEF)11.0 LReference

Engine72.3 kWReference

FPT F5GReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier IVReference

Power72.3 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed power shuttleReference

20-speed creeperReference

Typepower shuttleReference

Gears12 forward and reverseReference

TypecreeperReference

Gears20 forward and reverseReference

PTO & Hydraulics

PTO (claimed)58.2 kWReference

Typeopen centerReference

Rear valves2 or 3Reference

Pump flow64.0 lpmReference

Pump flow81.8 lpmReference

Rear TypeII/IReference

Controltop-link draft sensingReference

Rear lift (at ends)1999 kgReference

Rear lift (at 24"/610mm)1451 kgReference

Rear lift (at 24"/610mm)3499 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase231 cmReference

4WD ROPS Wheelbase213 cmReference

4WD Cab Wheelbase226 cmReference

Weight7304 to 8492 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4-30Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference

4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

2WD Optional tires (ag)Front: 7.5-16. Rear: 16.9-30Reference

4WD Optional tires (ag)Front: 10-16. Rear: 16.9-34Reference

2WD Length411 cmReference

4WD Length408 cmReference

Height (ROPS)261 cmReference

Height (cab)269 cmReference

Flange rear axleReference

2WD ROPS3313 kgReference

2WD Cab3707 kgReference

4WD ROPS3487 kgReference

4WD Cab3851 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
