Tractor · 2005Unverified

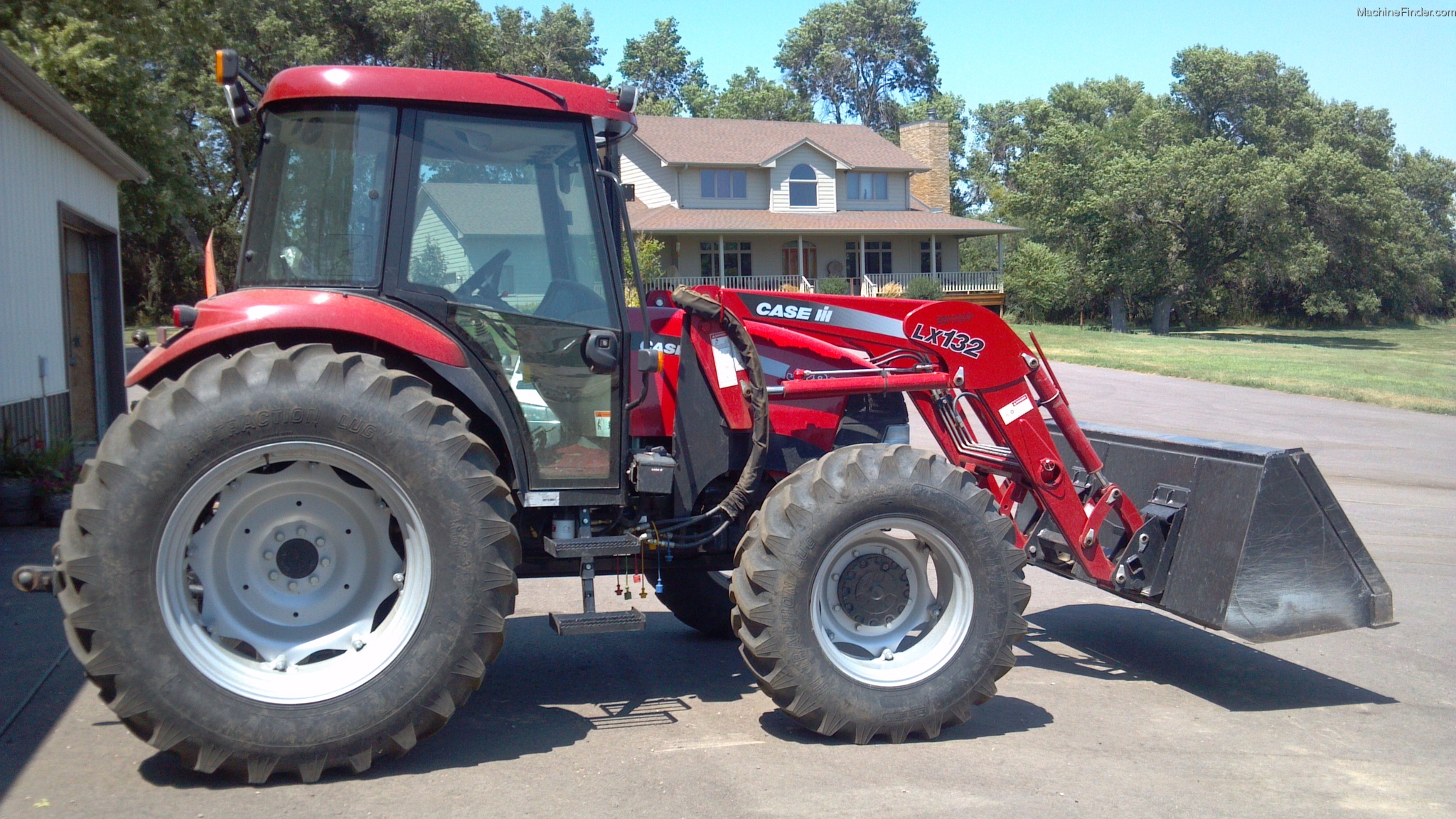

CaseIH JX1085C

CaseIH JX1085C — JXC Series · 80 hp. Reference specifications; pending source verification.

The CaseIH JX1085C is a tractor model with a rated power output of 80 hp, a mid-range figure for its class. It was manufactured from 2005 to 2008. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system with a 16-speed gearbox. Its operating weight is listed at 3134 kg, with a suitable operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
80 hp
Max power
53.7 kW
Weight
3134 kg

Catalogue coverage

Variants represented
2
Richest spec table
65 rows
Recorded power
80 hp
Recorded weight
3134 kg
Transmissions
16-speed mechanical shuttle
Production years
2005-2008
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference

Engine

CNH 4.5L 4-cyl dieselReference
Fuel tank88.9 LReference
Engine (gross)59.7 kWReference
Drawbar (tested)45.6 kWReference
CNHReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)59.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression17.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Max power53.7 kWReference
Power at rated engine speed53.5 kWReference
Max power45.6 kWReference

Transmission

16-speed mechanical shuttleReference
16-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference

PTO & Hydraulics

PTO (claimed)51.5 kWReference
PTO (tested)53.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow64.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft sensing.Reference
Rear lift1796 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed53.5 kWReference

Dimensions

Wheelbase218 cmReference
Weight3134 kgReference
Length398 cmReference
Width176 cmReference
Operating weight3134 kgReference
Ballasted weight3619 kgReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA730Reference
Battery volts12Reference

CaseIH JX1085C Height

ROPS242 cmReference
ROPS192 cmReference
Cab232 cmReference

Test results

Diesel 16-speed 2WDSeptember 1 - October 1, 2005Link: OCED Tractor Test 2352 fileReference
PTO performanceReference
Fuel use18.2 l/hourReference
Fuel use17.8 l/hourReference
Drawbar performanceReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
