Tractor · 2009Unverified

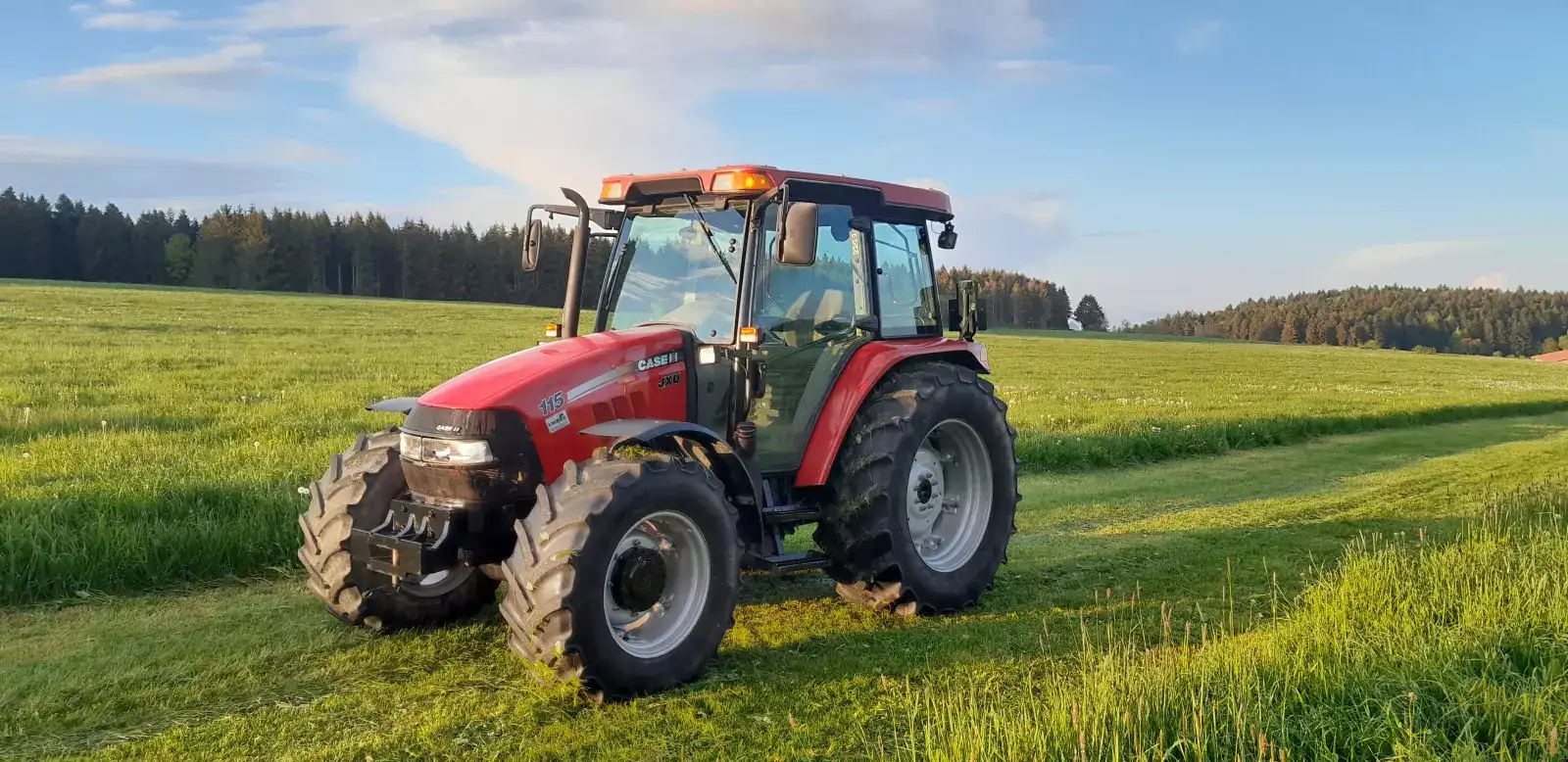

CaseIH JXU 115
CaseIH JXU 115 — JXU Series · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Weight
4249 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Four-wheel driveReference
Differential lockElectro-hydraulic rear and limited slip front. Electro-hydraulic front optional.Reference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard.Reference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank127.2 LReference
Fuel tank166.9 LReference
Engine (gross)83.0 kWReference
Iveco NEF F4CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Rated Power (gross)83.0 kWReference
Rated RPM2300Reference
Torque445.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed two-speed power shiftReference
12-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Two-speed power shift with power shuttle.Reference
Typepower shuttleReference
PTO & Hydraulics
Rear valves3Reference
Mid valves2Reference
Pump flow60.9 lpmReference
Steering flow36.0 lpmReference
Rear lift4900 kgReference
Rear lift5850 kgReference
Front lift2500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase234 cmReference
Weight4249 kgReference
Front tire380/80R24Reference
Rear tire480/70R34Reference
Standard tires (ag)Front: 380/80R24. Rear: 480/70R34Reference
Length411 cmReference
Height (cab)262 cmReference
Max weight7400 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
