Tractor · 2009Unverified

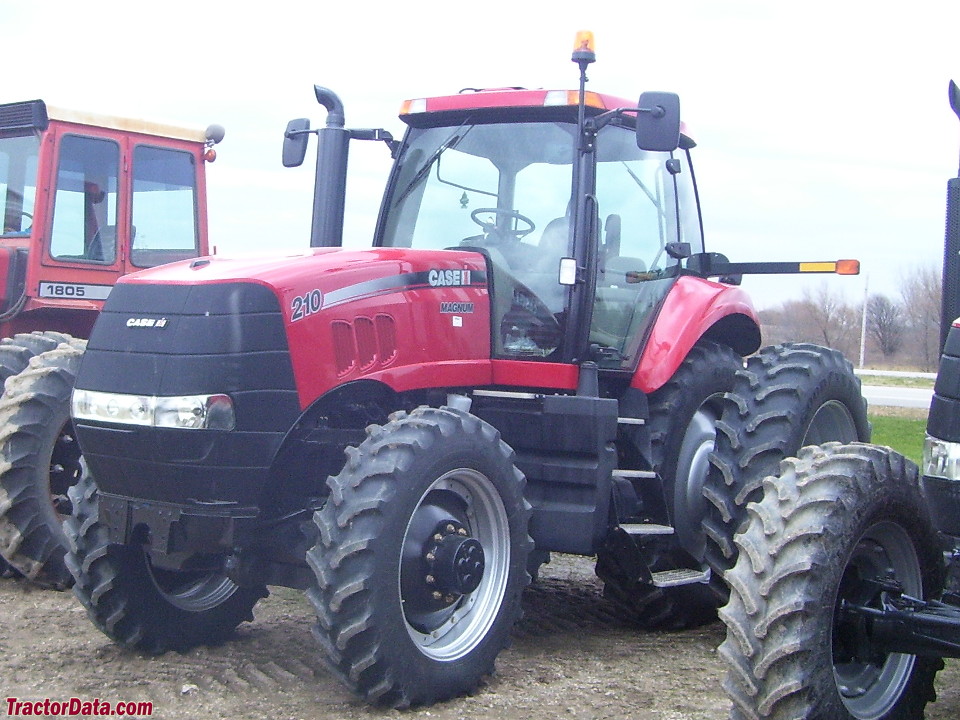

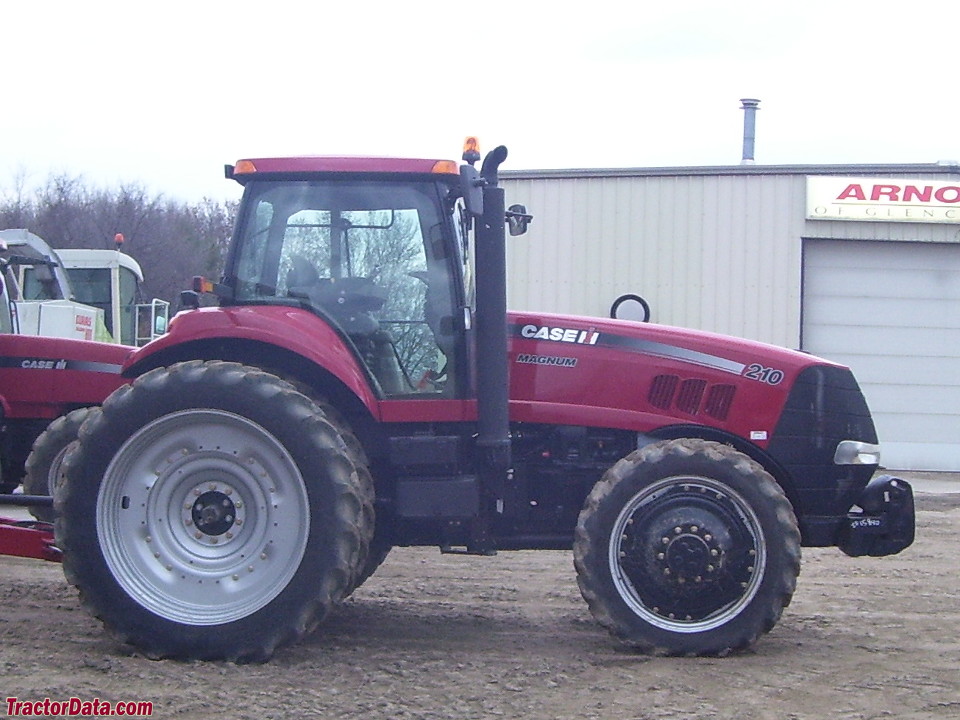

CaseIH Magnum 210
CaseIH Magnum 210 — Model year 2009-20102011-2013 · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Max power
151.4 kW
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Surveyor cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank446.6 LReference
Engine156.6 kWReference
Drawbar (tested)116.2 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power156.6 kWReference
Maximum Power193.9 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.1 LReference
Max power151.4 kWReference
Power at rated engine speed142.0 kWReference
Max power116.2 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Gears19 forward and 6 reverseReference
Typecontinuously variable transmission (CVT)Reference
Gearsininite forward and infinite (2-range) reverse (4-range)Reference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)151.4 kWReference
TypePressue Flow Compensated (PFC)Reference
Valves3 to 5Reference
Total flow149.9 lpmReference
Rear TypeII/IIIReference
Rear lift5800 kgReference
Rear lift7199 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed148.0 kWReference
Dimensions
Wheelbase300 cmReference
Height (cab)326 cmReference
Rear axle104 by 2844 mmReference
Rear axle104 by 3022 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200 (optional)Reference
Test results
Diesel 19-speed 4WDMay 2007 - July 2007, Link: OCED Tractor Test 2427 fileReference
PTO performanceReference
Fuel use44.7 l/hourReference
Fuel use44.3 l/hourReference
Drawbar performanceReference
Gear 10 used for power test.Reference
Max pull7089 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
