Tractor · 2007Unverified

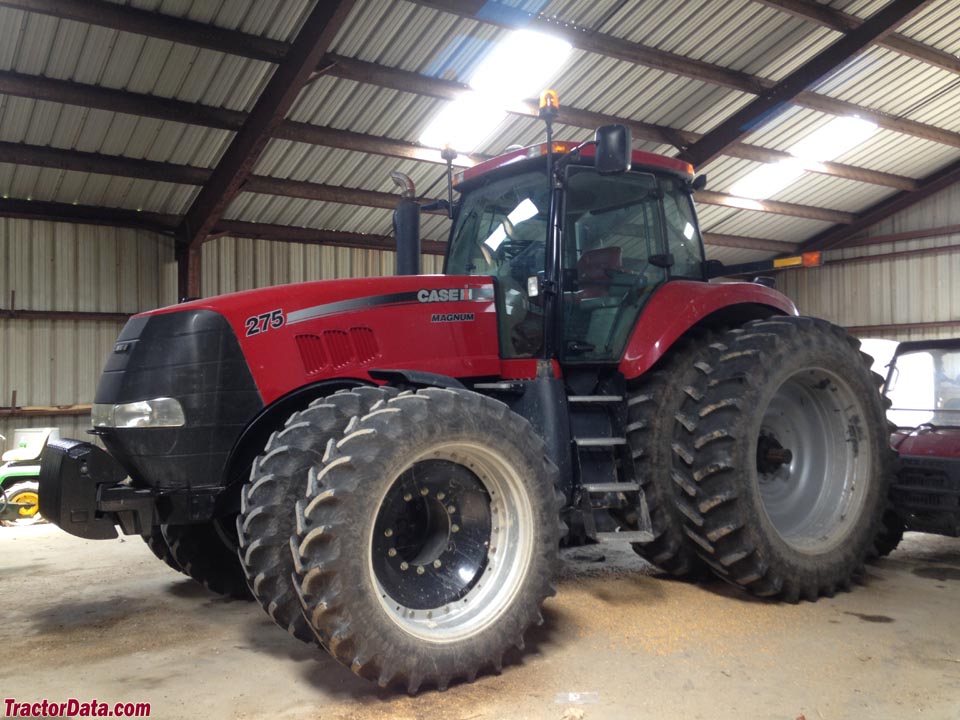

CaseIH Magnum 275
CaseIH Magnum 275 — Magnum Series · 227 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
227 hp
Max power
200.3 kW
Weight
20630 to 21570 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $197,933 in 2010Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.Reference
Engine
CNH 8.3L 6-cyl dieselReference
CNH 8.9L 6-cyl dieselReference
Engine205.1 kWReference
Drawbar (tested)145.4 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power205.1 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity24.6 LReference
6-cylinderReference
The 9L engine was introduced on the Magnum 275 for the 2008 model year, serial number 5000.Reference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
Air cleanerdual paper elements with aspiratorReference
Compression17.6:1Reference
Max power200.3 kWReference
Power at rated engine speed169.3 kWReference
Max power143.3 kWReference
Max power202.5 kWReference
Power at rated engine speed170.9 kWReference
Max power145.4 kWReference
Transmission
18-speed full powershiftReference
19-speed full powershiftReference
23-speed full powershiftReference
Typefull powershiftReference
Gears18 forward and 4 reverseReference
Gears19 forward and 4 reverseReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)202.5 kWReference
Hydraulic system172.2 LReference
TypePFCReference
Capacity172.2 LReference
Valves3 to 5Reference
Total flow166.5 lpmReference
Total flow223.3 lpmReference
Total flow283.9 lpmReference
Rear TypeIII/IIINReference
Rear TypeIVN/IIIReference
Rear lift6382 kgReference
Rear lift7427 kgReference
Rear lift8573 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed199.8 kWReference
Power at rated PTO speed202.3 kWReference
Capacities
Fuel681.3 LReference
Max capacity14742 kgReference
Dimensions
Wheelbase300 cmReference
Weight20630 to 21570 poundsReference
Front tire380/85R34Reference
Rear tire480/80R46Reference
Ag front380/85R34Reference
Ag rear480/80R46Reference
Height (cab)326 cmReference
Rear axle101 by 3048 mmReference
Rear axle114 by 3048 mmReference
Shipping9357 kgReference
Shipping9720 kgReference
Operating9784 kgReference
Ballasted13735 kgReference
Test results
OECD 1912: 8.3L diesel 19-speed 4WDReference
OECD 1916: 9L diesel 19-speed 4WDReference
8.3L diesel 19-speed 4WDOctober 30 - November 14, 2007Link: OCED Tractor Test 1912 fileReference
PTO performanceReference
Fuel use57.5 l/hourReference
Fuel use54.1 l/hourReference
Fuel use57.9 l/hourReference
Drawbar performanceReference
Fuel use53.7 l/hourReference
Gear 9 used for power test.Reference
9L diesel 19-speed 4WDNovember 6 - 14, 2007Link: OCED Tractor Test 1916 fileReference
Fuel use52.6 l/hourReference
Fuel use0.8 l/hourReference
Max pull13799 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
