Tractor · 2005Unverified

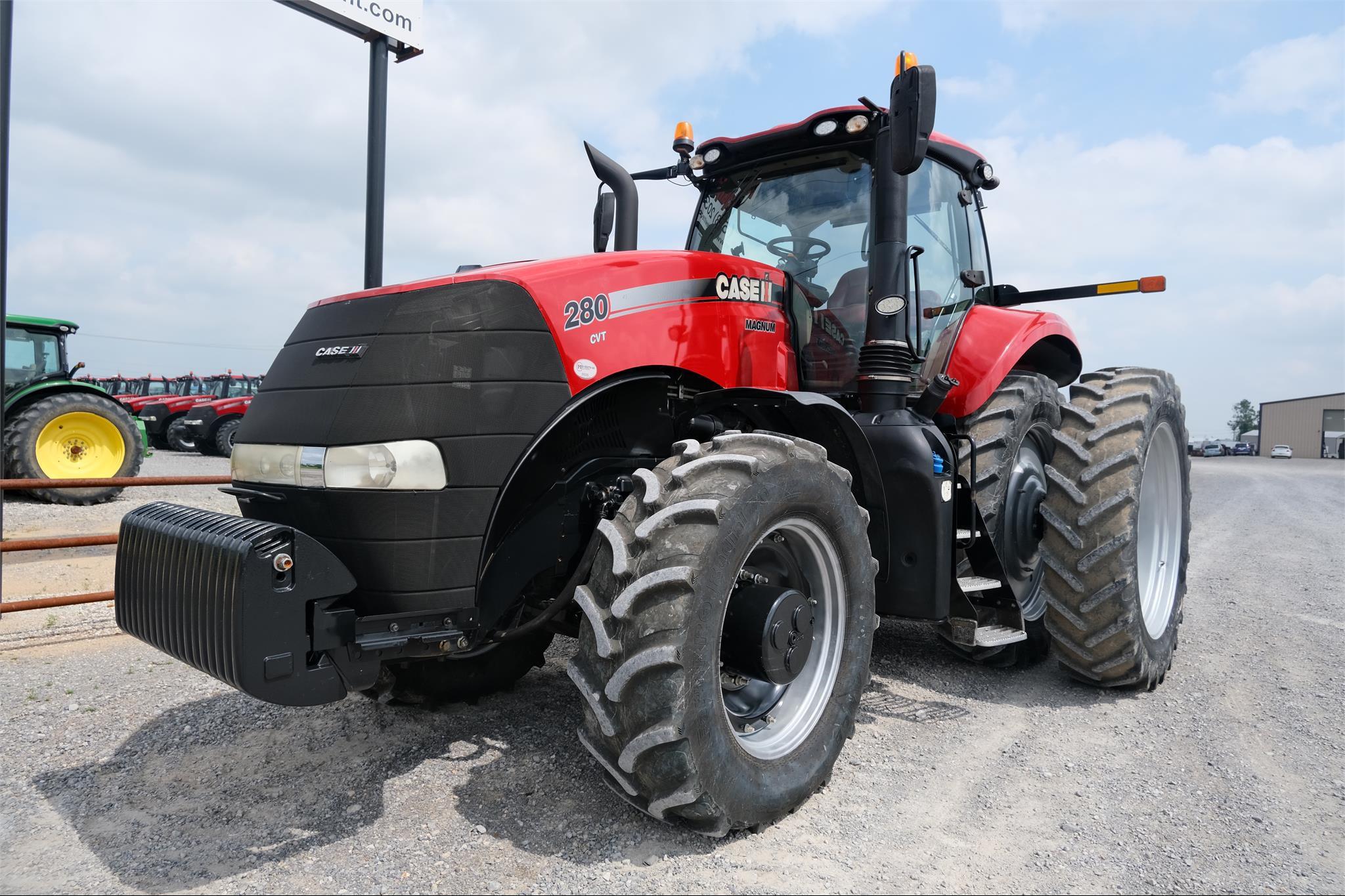

CaseIH Magnum 280
CaseIH Magnum 280 — Model year 2005-20072008-2011 · 279 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
279 hp
Weight
9375 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconin, USAReference
Four-wheel driveReference
Final drivesplanetaryReference
Steeringhydrostatic powerReference
Surveyor cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Fuel tank681.3 LReference
Engine (gross)208.1 kWReference
CDCReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
EmissionsTier IIIReference
Rated Power (gross)208.1 kWReference
Maximum Power233.4 kWReference
Fuel systemcommon railReference
Rated RPM2000Reference
Torque1395.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
19-speed full power shiftReference
23-speed creeperReference
Typefull power shiftReference
Gears19 forward and 4 reverseReference
Clutchelectro-hydraulic wet discReference
TypecreeperReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
Typepressure flow compensatingReference
Valves4 or 5Reference
Pump flow141.9 lpmReference
Rear TypeIII/IVNReference
Rear lift (at 24"/610mm)6708 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM1800@1000Reference
Dimensions
Wheelbase300 cmReference
Weight9375 kgReference
Front tire600/65R30Reference
Rear tire710/70R42Reference
Standard tires (ag)Front: 600/65R30. Rear: 710/70R42Reference
Length595 cmReference
Width255 cmReference
Height326 cmReference
Shipping weight9375 kgReference
Bar rear axleReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
