Tractor · 2014Unverified

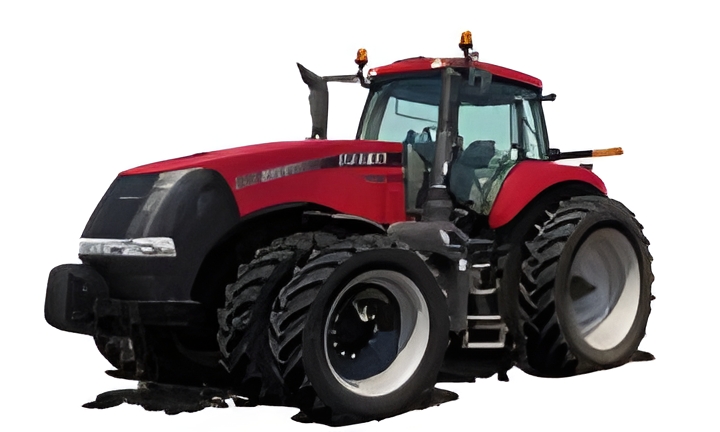

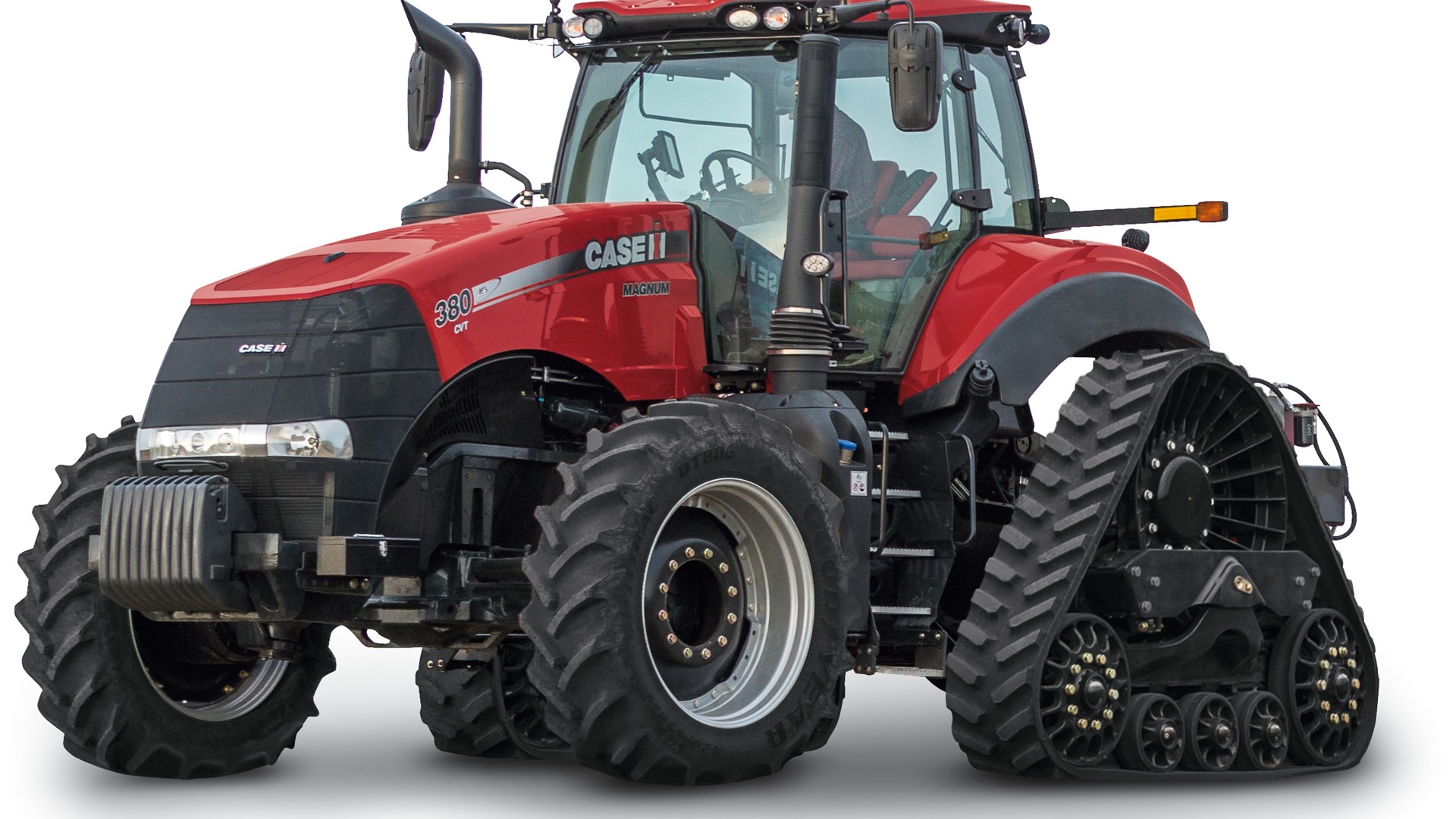

CaseIH Magnum 380

Name: CaseIH Magnum 380
Brand: CaseIH

CaseIH Magnum 380 — Model year 2014-20192019-2025 · 380 hp. Reference specifications; pending source verification.

The CaseIH Magnum 380 is a tractor with a rated power output of 380 hp, positioning it at the higher end of its class. It was produced between 2014 and 2025. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its listed operating weight is 14605 kg, suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

380 hp

Max power

277.7 kW

Weight

14605 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

380 hp

Recorded weight

14605 kg

Transmissions

continuously variable transmission (CVT)

Production years

2014-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price was $345,180 in 2014Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. AFS readyReference

Variants

T8.435similar New Holland modelReference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank617.0 LReference

Exhaust fluid (DEF)98.4 LReference

Engine (gross)283.4 kWReference

Engine (max)309.5 kWReference

Drawbar (tested)204.9 kWReference

FPTReference

wastegate turbocharger dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)283.4 kWReference

Maximum Power (gross)309.5 kWReference

Maximum Power (gross)324.4 kWReference

Fuel systemelectronic high pressure common rail direct injectionReference

Cooling systemBorgWarner Visctronic fanReference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

Max power277.7 kWReference

Power at rated engine speed238.8 kWReference

Max power204.9 kWReference

Transmission

continuously variable transmission (CVT)Reference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)234.9 kWReference

PTO (tested)277.7 kWReference

Typevariable displacement pressure-flow compensating (PFC)Reference

Valves4 to 6Reference

Pump flow166.5 lpmReference

Pump flow223.3 lpmReference

Pump flow283.9 lpmReference

Rear TypeIII/IVNReference

Controlelectronic lower link draft sensingReference

Rear lift (at 24"/610mm)9026 kgReference

Rear ArmsAdjustable quick couplerReference

DrawbarCat. 4Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1800Reference

Engine RPM1000@1800Reference

Power at rated PTO speed277.0 kWReference

Dimensions

Wheelbase314 cmReference

Weight14605 kgReference

Front tire420/8R34Reference

Rear tire480/80R50 (duals )Reference

Standard tires (ag)Front: 420/8R34. Rear: 480/80R50 (duals )Reference

Length627 cmReference

Width304 cmReference

Height (cab)334 cmReference

Max weight17781 kgReference

Front axle4WDReference

Front axleSuspended 4WDReference

Bar rear axle114 by 3048 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel CVT 4WDMay 19 - June 12, 2015Link: OCED Tractor Test 2126 fileReference

PTO performanceReference

Fuel use73.8 l/hourReference

Fuel use64.7 l/hourReference

Drawbar performanceReference

Fuel use65.1 l/hourReference

Pull at 9 KPHReference

Max pull13162 kgReference

Pull at 5.8 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
