Tractor · 2006Unverified

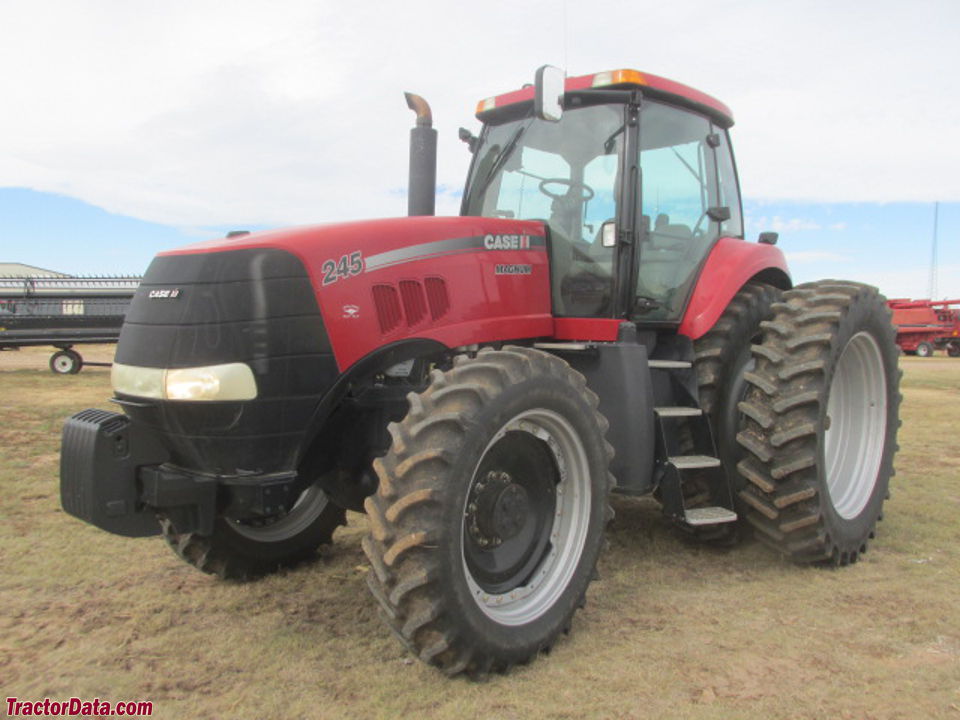

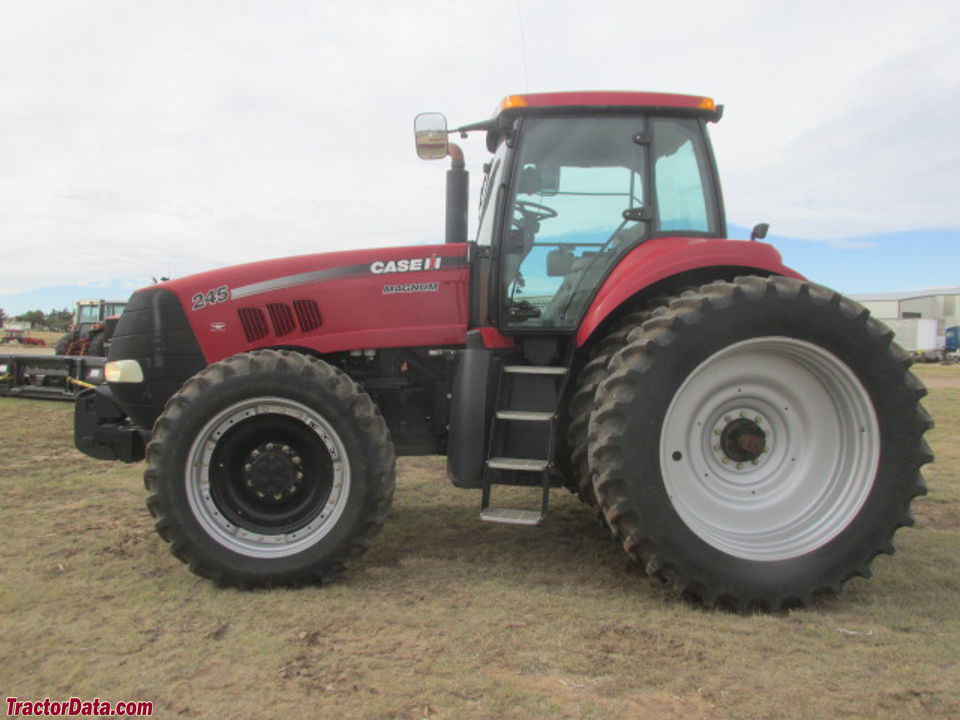

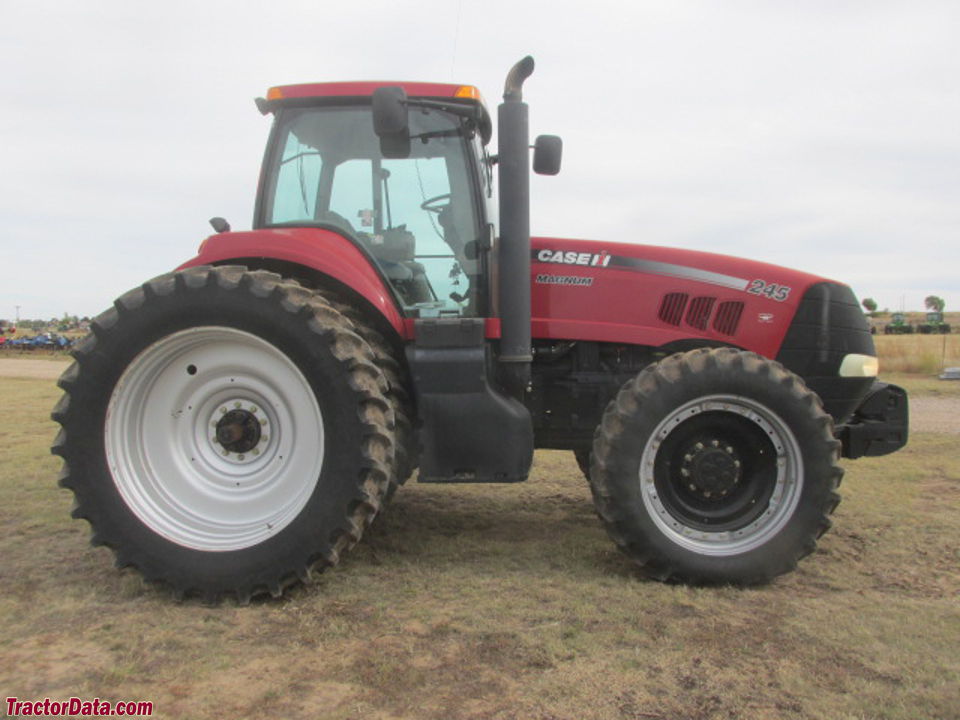

CaseIH MX245 Magnum
CaseIH MX245 Magnum — Magnum Series · 204 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
204 hp
Max power
128.8 kW
Weight
9609 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard.Reference
Engine
CNH 8.3L 6-cyl dieselReference
Engine184.9 kWReference
Drawbar (tested)128.8 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power184.9 kWReference
Air cleanerdual paper elementsReference
Compression17:1Reference
Rated RPM2000Reference
Torque2191.3 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity22.7 LReference
Power at rated engine speed152.1 kWReference
Max power128.8 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shift - overdriveReference
23-speed CreeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchelectro-hydraulic wet discReference
Typefull power shift - overdriveReference
Gears19 forward and 4 reverseReference
TypeCreeperReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)152.1 kWReference
Hydraulic system172.2 LReference
Typepressure flow compensatingReference
Capacity172.2 LReference
Valves3 to 5Reference
Total flow146.1 lpmReference
Total flow219.5 lpmReference
Rear TypeIIIReference
Rear lift6332 kgReference
Rear lift7243 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed181.1 kWReference
Capacities
Fuel681.3 LReference
Dimensions
Wheelbase300 cmReference
Weight9609 kgReference
Height326 cmReference
Operating weight9609 kgReference
Ballasted weight12437 kgReference
Electrical
GroundnegativeReference
Charging amps150Reference
Charging amps175Reference
Battery CCA2000Reference
Battery volts12Reference
Test results
Diesel 19 speed 4WDMay 1 - 18, 2007Link: OCED Tractor Test 566 fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Fuel use55.6 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull9130 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
