Tractor · 2006Unverified

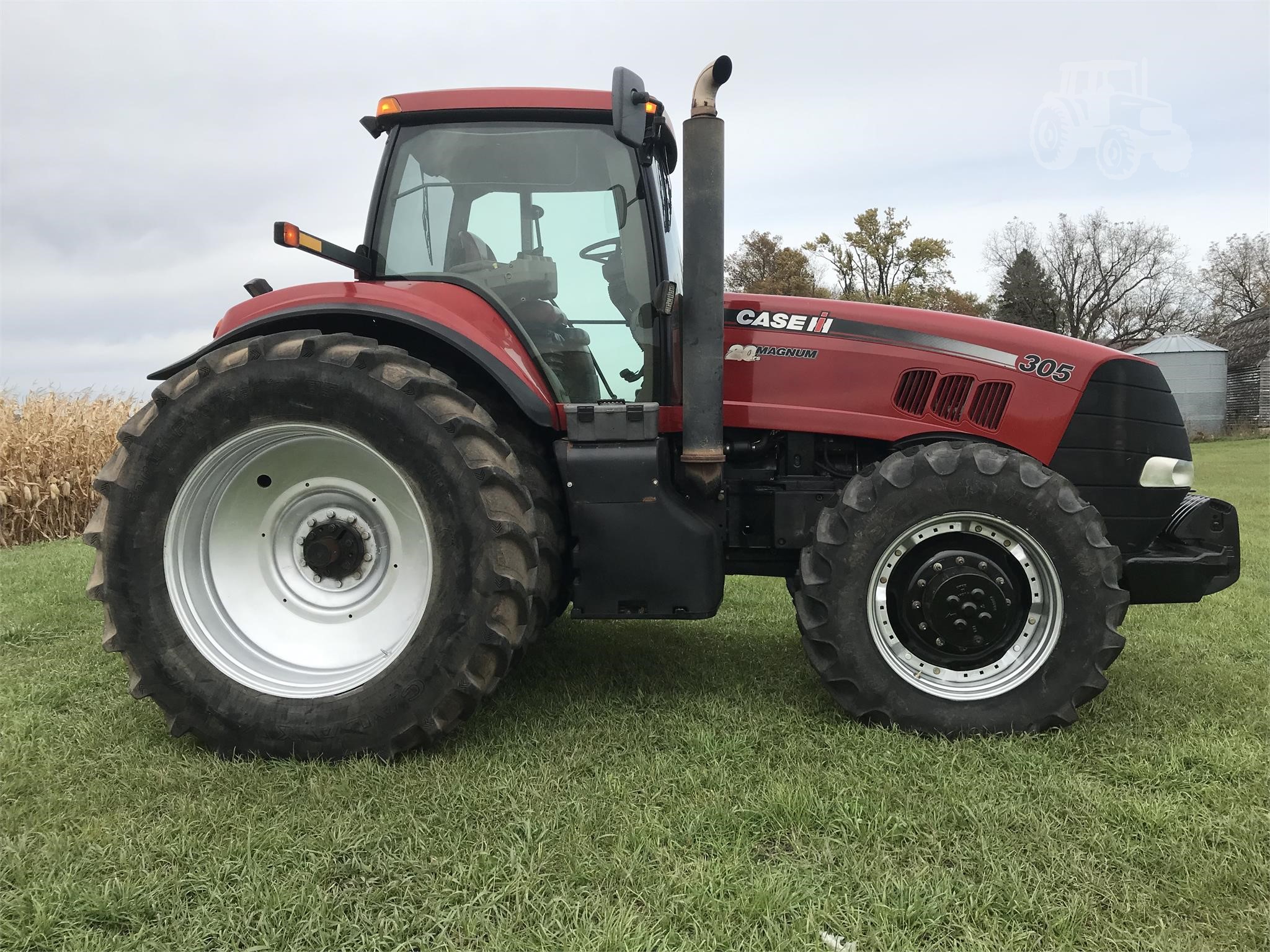

CaseIH MX305 Magnum

Name: CaseIH MX305 Magnum
Brand: CaseIH

CaseIH MX305 Magnum — Magnum Series · 257 hp. Reference specifications; pending source verification.

The CaseIH MX305 Magnum is a 257 hp tractor, situated at the higher end of its class in terms of power. It was produced from 2006 to 2007. The MX305 Magnum features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, combined with four-wheel drive and a hydrostatic transmission. Its operating weight is 9790 kg, making it suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

257 hp

Max power

223.5 kW

Weight

9790 kg

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

257 hp

Recorded weight

9790 kg

Transmissions

18-speed

Production years

2006-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Independent hydraulic wet disc brakesReference

Cab standard.Reference

Engine

CNH 8.9L 6-cyl dieselReference

Engine226.7 kWReference

Drawbar (tested)164.3 kWReference

CNHReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.9 LReference

Bore/Stroke114 x 145 mmReference

Power226.7 kWReference

Air cleanerdual paper elementsReference

Compression17.6:1Reference

Rated RPM2000Reference

Torque2627.9 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity22.7 LReference

Max power223.5 kWReference

Power at rated engine speed191.4 kWReference

Max power164.3 kWReference

Transmission

18-speedReference

19-speedReference

23-speedReference

TransmissionPowershiftReference

Gears18 forward and 4 reverseReference

TransmissionPowershift - overdriveReference

Gears19 forward and 4 reverseReference

TransmissionCreeperReference

Gears23 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)190.2 kWReference

PTO (tested)223.5 kWReference

Hydraulic system172.2 LReference

TypePFCReference

Capacity172.2 LReference

Valves3 to 5Reference

Total flow146.1 lpmReference

Total flow219.5 lpmReference

Rear TypeIIIReference

Rear lift7 kgReference

Rear lift8128 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed223.5 kWReference

Capacities

Fuel681.3 LReference

Dimensions

Wheelbase300 cmReference

Weight9790 kgReference

Height326 cmReference

Operating weight9790 kgReference

Ballasted weight15157 kgReference

Electrical

GroundnegativeReference

Charging amps150Reference

Charging amps175 (optional)Reference

Battery CCA2000Reference

Battery volts12Reference

Test results

Diesel 19/4 4WDOctober 24 - November 14, 2007Link: OCED Tractor Test 1913 fileReference

PTO performanceReference

Fuel use64.3 l/hourReference

Fuel use59.0 l/hourReference

Fuel use64.0 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Max pull9238 kgReference

Gear 6 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
