Tractor · 2002Unverified

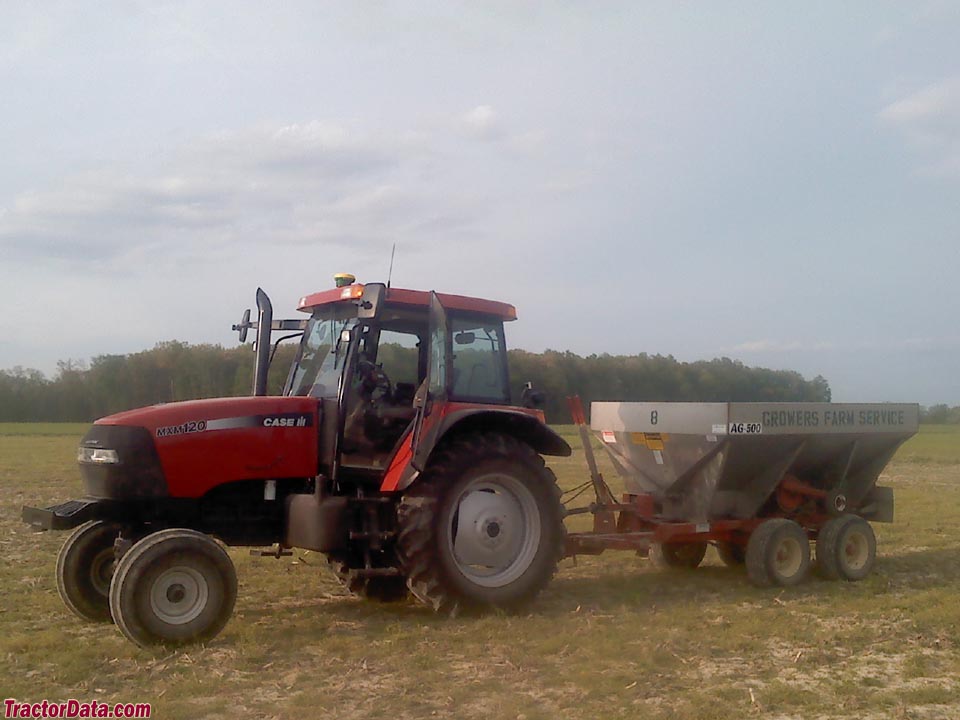

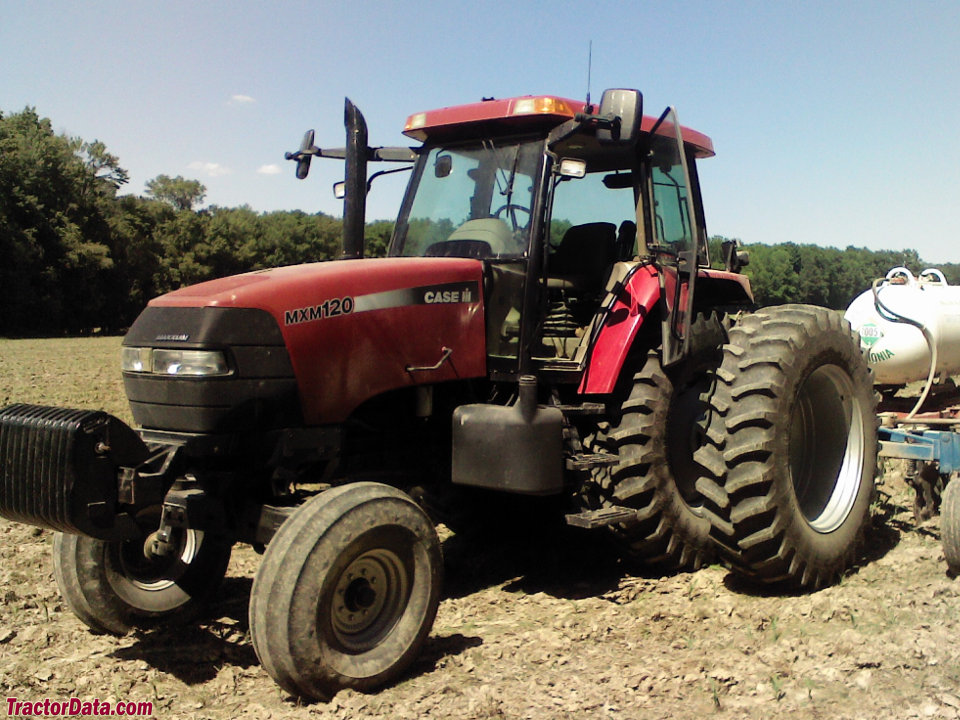

CaseIH MXM120 Maxxum

Name: CaseIH MXM120 Maxxum
Brand: CaseIH

CaseIH MXM120 Maxxum — Maxxum Series · 101 hp. Reference specifications; pending source verification.

The CaseIH MXM120 Maxxum is a tractor with a rated power output of 101 hp, which falls within the mid-range of its class. This model was manufactured from 2002 to 2007. Its power is provided by a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, combined with a four-wheel drive system and powershift transmission. The operating weight of the MXM120 Maxxum ranges from 11283 to 11859 pounds, and it is suitable for use on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

101 hp

Max power

78.2 kW

Weight

11283 to 11859 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

101 hp

Recorded weight

5117 kg

Transmissions

18-speed partial powershift

Production years

2002-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CNH 7.5L 6-cyl dieselReference

Engine91.0 kWReference

Drawbar (tested)61.9 kWReference

CNHReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power91.0 kWReference

Fuel systemmechanical fuel injectionReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity25.4 LReference

Max power78.2 kWReference

Power at rated engine speed75.1 kWReference

Max power61.9 kWReference

Transmission

18-speed partial powershiftReference

18-speed full power shiftReference

Typepartial powershiftReference

Gears18 forward and 6 reverseReference

Clutchwet discReference

Six power shift gears (1-6) in three ranges (A-C). Power shuttle shifting.Reference

Typefull power shiftReference

Optional full power shift transmission with power shuttle.Reference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)78.2 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensingReference

Capacity89.9 LReference

Pressure189.6 barReference

Valves2 to 5Reference

Pump flow106.0 lpmReference

SCV flow94.6 lpmReference

Total flow166.5 lpmReference

Steering flow60.6 lpmReference

Rear TypeIIReference

Controlelectronic lower-link sensingReference

Rear lift (at 24"/610mm)3957 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1969Reference

Engine RPM1000@2120Reference

Power at rated PTO speed77.6 kWReference

Capacities

Fuel283.9 LReference

Dimensions

2WD Wheelbase274 cmReference

4WD Wheelbase272 cmReference

Weight11283 to 11859 poundsReference

2WD Length458 cmReference

4WD Length471 cmReference

Height (cab)282 cmReference

Height (cab)295 cmReference

2WD Operating weight5117 kgReference

4WD Operating weight5379 kgReference

Flange rear axleReference

Bar rear axle91 by 2489 mmReference

4WD Front tread152 to 193 cmReference

Rear tread152 to 223 cmReference

MXM120 Serial Numbers

2003ACM191688Reference

2004ACM216992Reference

2005ACM240012Reference

2006ACM258550Reference

2007ACM283224Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

Diesel 18-speed 4WDDecember 1, 2002 - March 1, 2003Link: OCED Tractor Test 2086 fileReference

PTO performanceReference

Fuel use24.2 l/hourReference

Fuel use25.7 l/hourReference

Fuel use25.4 l/hourReference

Drawbar performanceReference

Gear 3B used for power test.Reference

Max pull5588 kgReference

Gear 1A used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
