Tractor · 2002Unverified

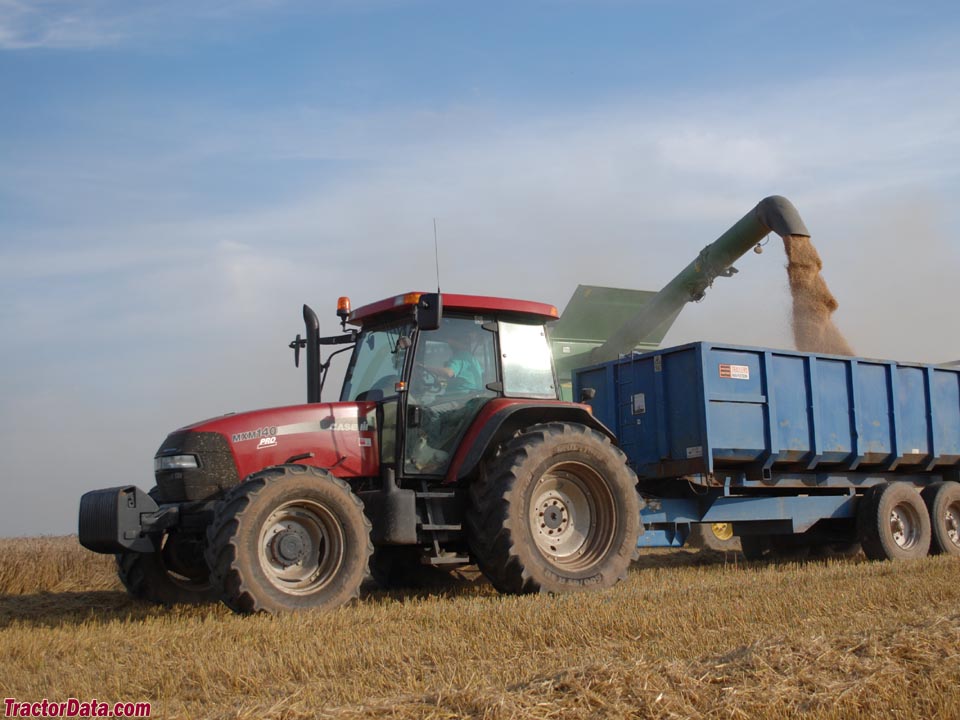

CaseIH MXM140 Maxxum

Name: CaseIH MXM140 Maxxum
Brand: CaseIH

CaseIH MXM140 Maxxum — Maxxum Series · 120 hp. Reference specifications; pending source verification.

The Case IH MXM140 Maxxum is a tractor with a rated power of 120 hp, positioning it at the upper end of its class. This model was manufactured from 2002 to 2007. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. The MXM140 Maxxum has an operating weight of 10472 to 12935 pounds, making it suitable for operations encompassing 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Max power

90.3 kW

Weight

10472 to 12935 pounds

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

120 hp

Transmissions

18-speed partial power shift

Production years

2002-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CNH 7.5L 6-cyl dieselReference

Engine105.9 kWReference

Drawbar (tested)75.5 kWReference

CNHReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power105.9 kWReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity25.4 LReference

Max power90.3 kWReference

Power at rated engine speed89.3 kWReference

Max power75.5 kWReference

Transmission

18-speed partial power shiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

PTO (tested)90.3 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensingReference

Capacity89.9 LReference

Pressure189.6 barReference

Valves2 to 5Reference

Pump flow106.0 lpmReference

SCV flow94.6 lpmReference

Total flow166.5 lpmReference

Steering flow60.6 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower-link sensingReference

Rear lift (at 24"/610mm)5302 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed90.1 kWReference

Capacities

Fuel283.9 LReference

Dimensions

2WD Wheelbase274 cmReference

4WD Wheelbase272 cmReference

Weight10472 to 12935 poundsReference

2WD Length458 cmReference

4WD Length471 cmReference

Height (cab)282 cmReference

Height (cab)295 cmReference

Rear axle91 by 2489 mmReference

4WD Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Shipping4750 kgReference

Shipping5150 kgReference

4WD Operating5867 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

Diesel 18-speed 4WDDecember 1, 2002 - January 1, 2004Link: OCED Tractor Test 2119 fileReference

PTO performanceReference

Fuel use28.4 l/hourReference

Fuel use29.5 l/hourReference

Fuel use29.1 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
