Tractor · 2002Unverified

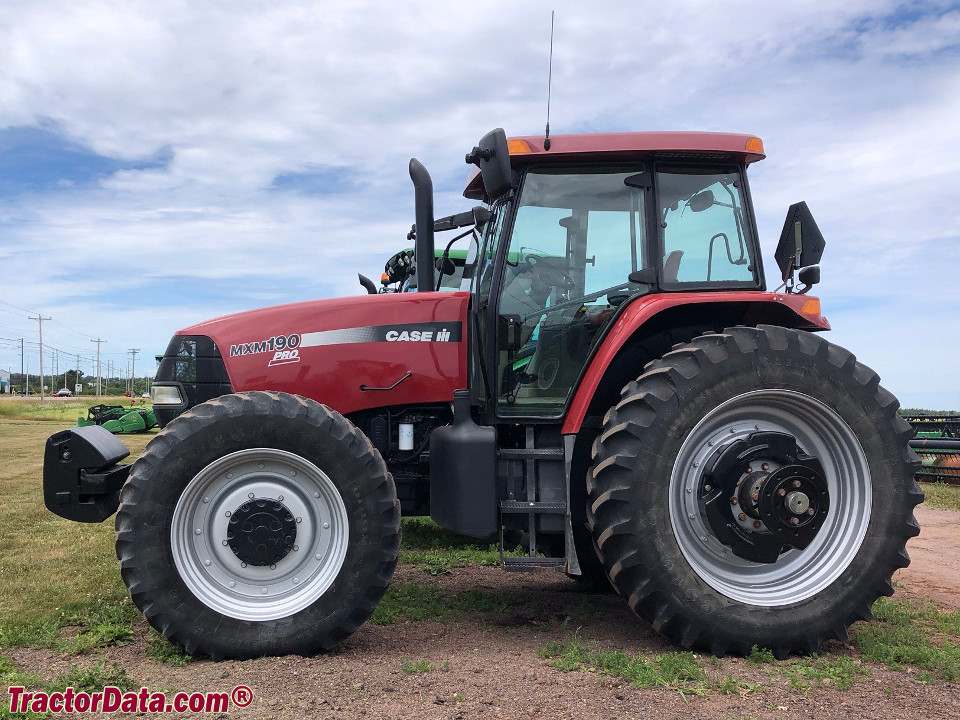

CaseIH MXM190 Maxxum

Name: CaseIH MXM190 Maxxum
Brand: CaseIH

CaseIH MXM190 Maxxum — Maxxum Series · 164 hp. Reference specifications; pending source verification.

The Case IH MXM190 Maxxum is a tractor with a rated power output of approximately 164 hp, positioning it at the higher end of its class. The MXM190 Maxxum was produced between 2002 and 2007. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor has a listed operating weight of 7924 kg and is suitable for operations on land ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

164 hp

Max power

128.3 kW

Weight

7924 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

164 hp

Recorded weight

7924 kg

Transmissions

19-speed full power shift

Production years

2002-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

TM190similar New Holland modelReference

Engine

CNH 7.5L 6-cyl dieselReference

Engine141.7 kWReference

Drawbar (tested)102.6 kWReference

CNH GenesisReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power141.7 kWReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity26.1 LReference

Max power128.3 kWReference

Power at rated engine speed122.0 kWReference

Max power102.6 kWReference

Transmission

19-speed full power shiftReference

Typefull power shiftReference

Gears19 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)119.3 kWReference

PTO (tested)128.3 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensingReference

Capacity89.9 LReference

Pressure189.6 barReference

Valves4 to 5Reference

Pump flow120.0 lpmReference

SCV flow98.4 lpmReference

Total flow184.3 lpmReference

Steering flow64.3 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower-link sensingReference

Rear lift (at 24"/610mm)7749 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed124.8 kWReference

Capacities

Fuel397.4 LReference

Dimensions

2WD Wheelbase283 cmReference

4WD Wheelbase285 cmReference

Weight7924 kgReference

2WD Length467 cmReference

4WD Length481 cmReference

Height (cab)288 cmReference

Height (cab)302 cmReference

4WD Operating weight7924 kgReference

Rear axle104 by 2844 mmReference

4WD Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

Diesel 19-speed 4WDNovember 1, 2003 - April 1, 2004Link: OCED Tractor Test 2145 fileReference

PTO performanceReference

Fuel use36.7 l/hourReference

Fuel use38.2 l/hourReference

Fuel use38.6 l/hourReference

Drawbar performanceReference

Fuel use39.4 l/hourReference

Gear 9 used for power test.Reference

Max pull7922 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
