Tractor · 2011Unverified

CaseIH Puma 170

Name: CaseIH Puma 170
Brand: CaseIH

CaseIH Puma 170 — Puma Series · 167 hp. Reference specifications; pending source verification.

The CaseIH Puma 170 is a tractor model with a power rating of 167 hp, placing it at the higher end of its class. It was manufactured from 2011 to 2013. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a continuously variable transmission. It has an operating weight of 8500 kg, suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

167 hp

Max power

128.4 kW

Weight

8500 kg

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

167 hp

Recorded weight

8500 kg

Transmissions

18-speed full power shift

Production years

2011-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Cab standard. Optional cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Engine (gross)124.5 kWReference

Engine (max)162.6 kWReference

Drawbar (tested)99.0 kWReference

FPTReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)124.5 kWReference

Maximum Power (gross)162.6 kWReference

Air cleanerdual paper elementsReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power128.4 kWReference

Power at rated engine speed112.5 kWReference

Max power99.0 kWReference

Transmission

18-speed full power shiftReference

19-speed full power shiftReference

continuously variable transmission (CVT)Reference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

TransmissionEconoGearReference

Gears19 forward and 6 reverseReference

Adds transport gear to the power shift, providing road speed at reduced engine RPMs.Reference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)100.7 kWReference

PTO (tested)128.4 kWReference

Hydraulic system83.3 LReference

Typeclosed center pressure flow compensating (PFC)Reference

Capacity83.3 LReference

Rear valves3 to 4 (mechanical)Reference

Rear valves3 to 5 (electronic)Reference

Pump flow121.1 lpmReference

Pump flow132.5 lpmReference

Pump flow151.4 lpmReference

Total flow185.5 lpmReference

Total flow196.8 lpmReference

Total flow215.7 lpmReference

Steering flow64.3 lpmReference

Rear Type2/3NReference

Rear lift4626 kgReference

Rear lift6078 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type1000/1000EReference

Power at rated PTO speed127.4 kWReference

Capacities

Fuel393.6 LReference

Exhaust fluid (DEF)50.0 LReference

Dimensions

Wheelbase288 cmReference

Weight8500 kgReference

Operating weight8500 kgReference

Bar rear axle104 by 2844 mmReference

Bar rear axle104 by 2489 mmReference

Bar rear axle104 by 3022 mmReference

Front tread152 to 223 cmReference

CaseIH Puma 170 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200Reference

Battery CCA1300Reference

Battery volts12Reference

Attachment overview

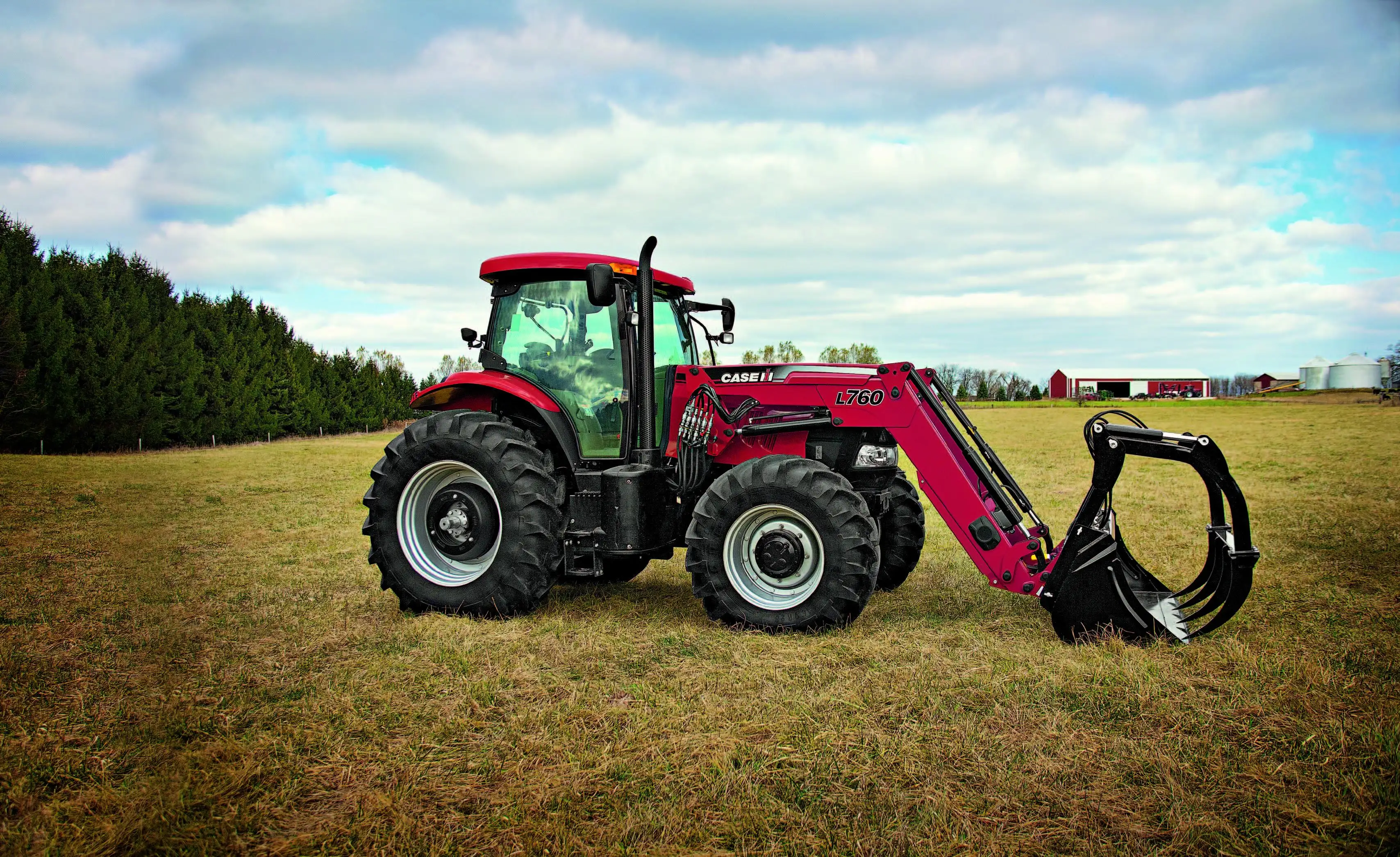

Case IH L760 loaderReference

Case IH L770 loaderReference

Test results

Diesel 19-speed 4WDJanuary 2011 - March 2011, Link: OCED Tractor Test 2609 fileReference

PTO performanceReference

Fuel use33.3 l/hourReference

Fuel use32.2 l/hourReference

Fuel use33.7 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Max pull7804 kgReference

Gear 8 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
