Tractor · 2007Unverified

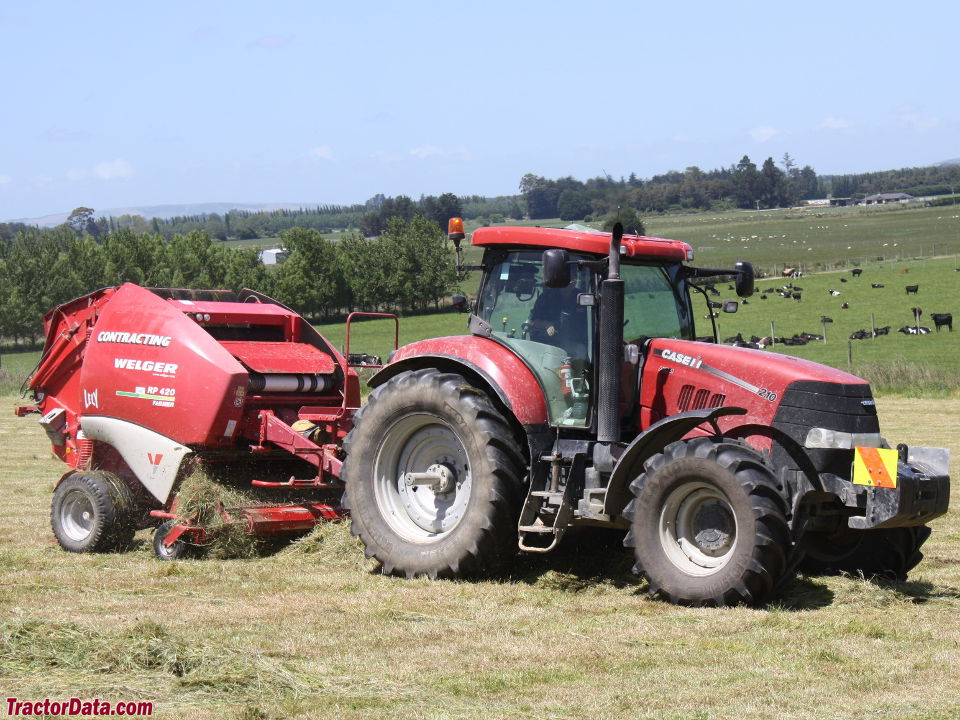

CaseIH Puma 210
CaseIH Puma 210 — Puma Series · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Max power
151.4 kW
Weight
15708 to 17915 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
FactoriesBasildon, EnglandReference
FactoriesSt. Valentin, AustriaReference
Original price$143,661 (2010)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Cab standard.Reference
Engine
CNH 6.7L 6-cyl dieselReference
Engine156.6 kWReference
Drawbar (tested)116.2 kWReference
CNHReference
intercooled turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power156.6 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Air cleanerdual paper elements with aspiratorReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity15.1 LReference
Max power151.4 kWReference
Power at rated engine speed142.0 kWReference
Max power116.2 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
TransmissionEconoGearReference
Gears19 forward and 6 reverseReference
The 19-speed EconoGear transmission provides a transport gear that operates at reduced RPM.Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
CVT first available on the Puma 210 starting in late 2008Reference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)151.4 kWReference
Hydraulic system100.3 LReference
Typepressure flow compensating (PFC)Reference
Capacity100.3 LReference
Valves3 to 5Reference
Pump flow120.0 lpmReference
Pump flow149.9 lpmReference
Pump flow170.3 lpmReference
Total flow184.3 lpmReference
Total flow214.2 lpmReference
Total flow234.7 lpmReference
Steering flow64.3 lpmReference
Rear TypeII/IIINReference
Rear lift (at ends)5800 kgReference
Rear lift (at ends)7199 kgReference
Rear lift (at 24"/610mm)4944 kgReference
Rear lift (at 24"/610mm)6168 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1-3/8)Reference
Rear PTO Type1000 (1-3/4)Reference
Rear PTO Type1000/1000E (with CVT)Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Power at rated PTO speed148.0 kWReference
Capacities
Fuel439.1 LReference
Fuel405.0 LReference
Dimensions
Wheelbase288 cmReference
Weight15708 to 17915 poundsReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference
Height (cab)304 cmReference
Height (exhaust)311 cmReference
Shipping weight7125 kgReference
Operating weight8126 kgReference
Rear axle104 by 2844 mmReference
Rear axle104 by 2489 mmReference
Rear axle104 by 3022 mmReference
CaseIH Puma 210 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Battery CCA1300Reference
Battery volts12Reference
Test results
Diesel 19-speed 4WDMay 2007 - July 2007, Link: OCED Tractor Test 2427 fileReference
PTO performanceReference
Fuel use44.7 l/hourReference
Fuel use44.3 l/hourReference
Drawbar performanceReference
Gear 10 used for power test.Reference
Max pull7089 kgReference
Gear 6 used for pull test.Reference
Speeds
19th gear at 1700 RPM.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
