Tractor · 2011Unverified

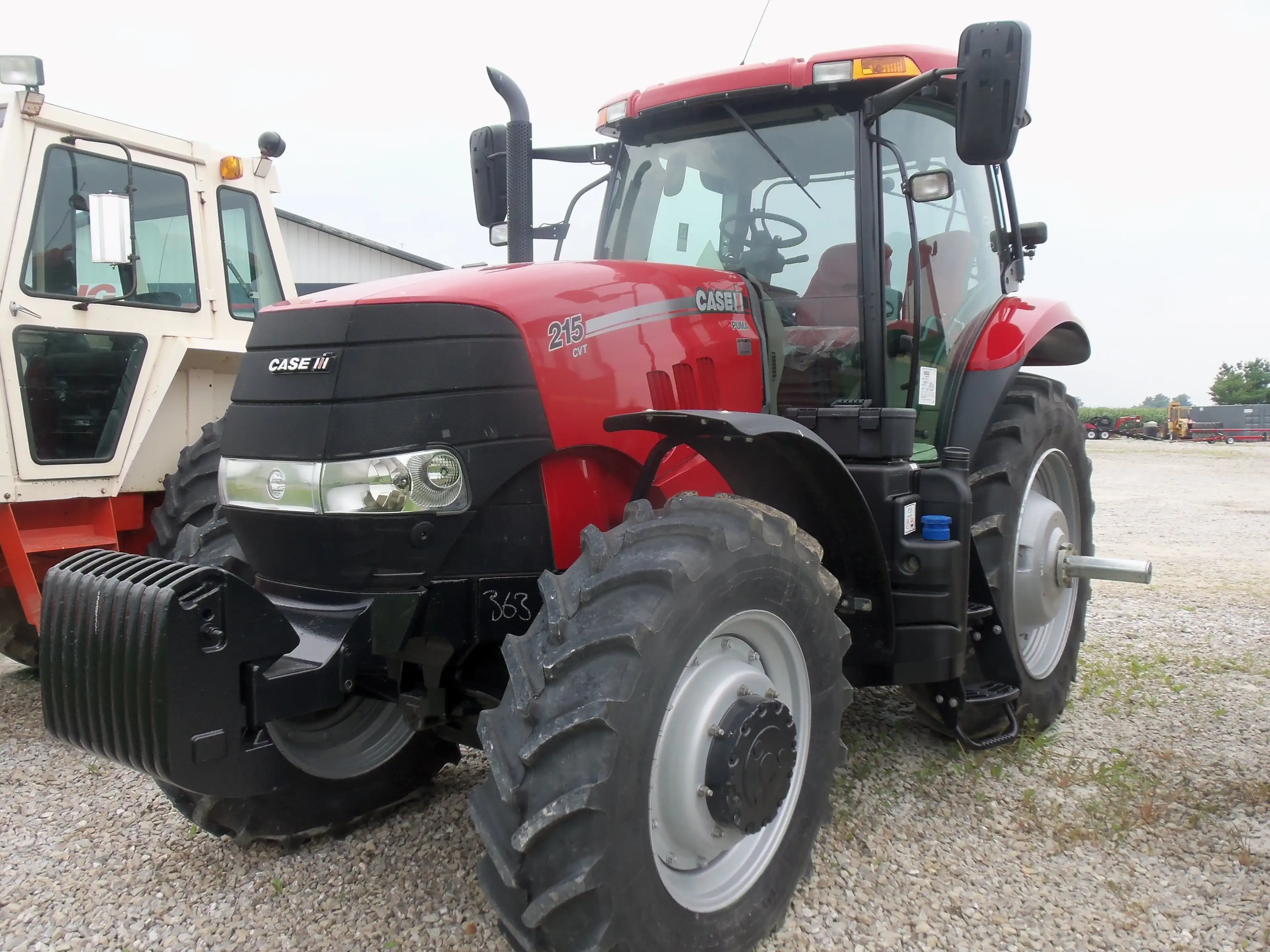

CaseIH Puma 215

Name: CaseIH Puma 215
Brand: CaseIH

CaseIH Puma 215 — Puma Series · 215 hp. Reference specifications; pending source verification.

The CaseIH Puma 215 is a tractor model with a power output of 215 hp, categorising it as a high-powered machine within its class. It was produced from 2011 to 2013. The Puma 215 features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a four-wheel drive system and a continuously variable transmission. Its listed weight is 8110 kg, suitable for use on land requiring approximately 600–1,500 acres of cultivation.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

215 hp

Max power

156.9 kW

Weight

8110 kg

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

215 hp

Recorded weight

8110 kg

Transmissions

18-speed full power shift

Production years

2011-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

During official testing, the Puma 215 was unable to meet advertised claims for hydraulic flow and three-point lift.Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Cab standard. Optional cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Engine (gross)160.3 kWReference

Engine (max)193.9 kWReference

Drawbar (tested)127.6 kWReference

FPTReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)160.3 kWReference

Maximum Power (gross)193.9 kWReference

Air cleanerdual paper elementsReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power156.9 kWReference

Power at rated engine speed142.9 kWReference

Max power127.6 kWReference

Transmission

18-speed full power shiftReference

19-speed full power shiftReference

continuously variable transmission (CVT)Reference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

TransmissionEconoGearReference

Gears19 forward and 6 reverseReference

Adds transport gear to the power shift, providing road speed at reduced engine RPMs.Reference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)134.2 kWReference

PTO (tested)156.9 kWReference

Hydraulic system83.3 LReference

Typeclosed center pressure flow compensating (PFC)Reference

Capacity83.3 LReference

Rear valves3 to 4 (mechanical)Reference

Rear valves3 to 5 (electronic)Reference

Pump flow121.1 lpmReference

Pump flow132.5 lpmReference

Pump flow151.4 lpmReference

Total flow185.5 lpmReference

Total flow196.8 lpmReference

Total flow215.7 lpmReference

Steering flow64.3 lpmReference

Rear Type2/3NReference

Rear lift4626 kgReference

Rear lift6078 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type1000/1000EReference

Power at rated PTO speed156.0 kWReference

Capacities

Fuel393.6 LReference

Exhaust fluid (DEF)50.0 LReference

Dimensions

Wheelbase288 cmReference

Weight8110 kgReference

Operating weight8110 kgReference

Bar rear axle104 by 2844 mmReference

Bar rear axle104 by 2489 mmReference

Bar rear axle104 by 3022 mmReference

Front tread152 to 223 cmReference

CaseIH Puma 215 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200Reference

Battery CCA1300Reference

Battery volts12Reference

Attachment overview

Case IH L770 loaderReference

Case IH L780 loaderReference

Test results

Diesel 19-speed 4WDOctober 2010 - May 2011, Link: OCED Tractor Test 2638 fileReference

PTO performanceReference

Fuel use40.1 l/hourReference

Fuel use39.0 l/hourReference

Fuel use40.9 l/hourReference

Drawbar performanceReference

Fuel use39.7 l/hourReference

Gear 10 used for power test.Reference

Max pull7409 kgReference

Gear 8 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
